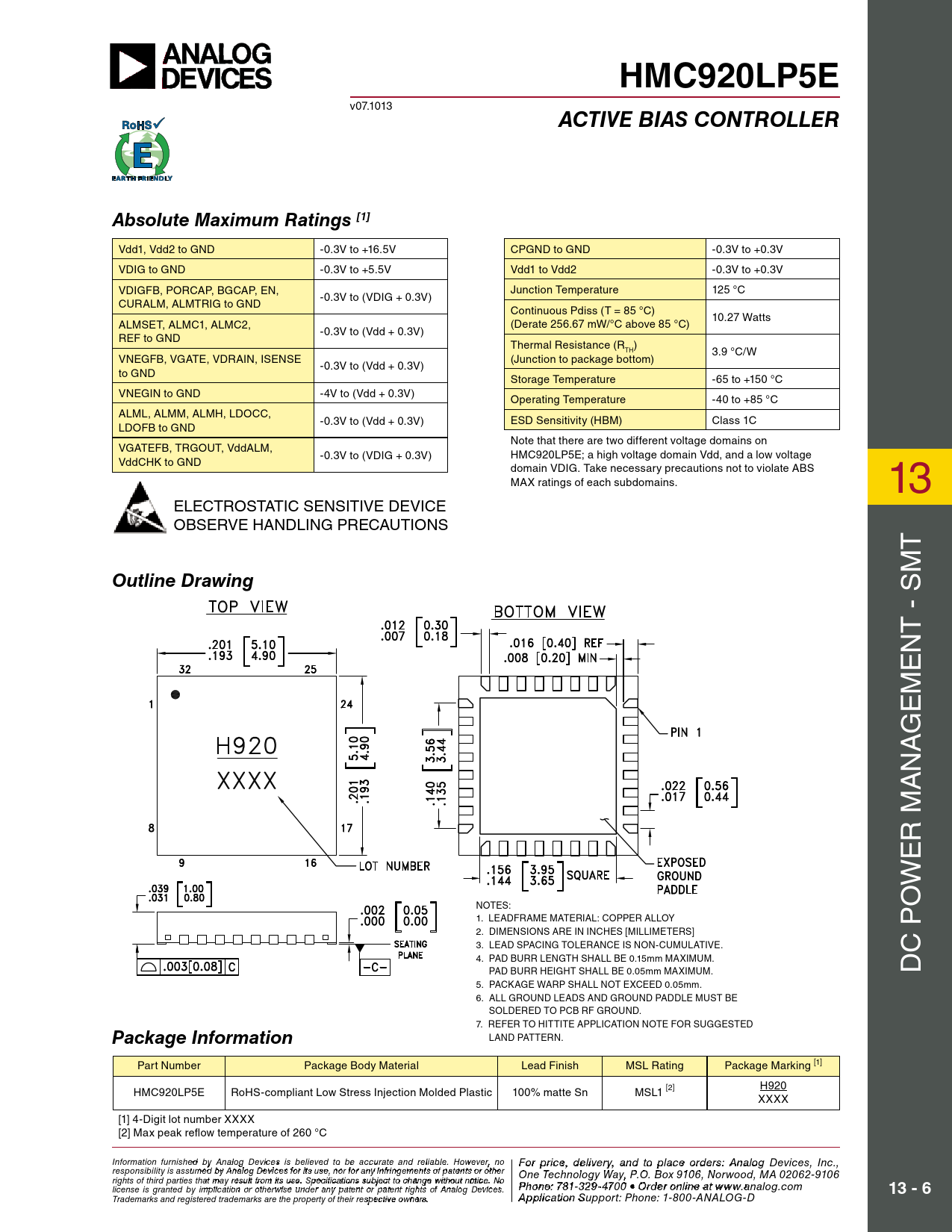

HMC920LP5E. ACTIVE BIAS CONTROLLER. Absolute Maximum Ratings [1]. Outline Drawing. Package Information. 13 - 6
Modelllinie für dieses Datenblatt
Textversion des Dokuments
HMC920LP5E
v07.1013
ACTIVE BIAS CONTROLLER Absolute Maximum Ratings [1]
Vdd1, Vdd2 to GND -0.3V to +16.5V CPGND to GND -0.3V to +0.3V VDIG to GND -0.3V to +5.5V Vdd1 to Vdd2 -0.3V to +0.3V VDIGFB, PORCAP, BGCAP, EN, Junction Temperature 125 °C -0.3V to (VDIG + 0.3V) CURALM, ALMTRIG to GND Continuous Pdiss (T = 85 °C) 10.27 Watts ALMSET, ALMC1, ALMC2, (Derate 256.67 mW/°C above 85 °C) -0.3V to (Vdd + 0.3V) REF to GND Thermal Resistance (R ) TH 3.9 °C/W VNEGFB, VGATE, VDRAIN, ISENSE (Junction to package bottom) -0.3V to (Vdd + 0.3V) to GND Storage Temperature -65 to +150 °C VNEGIN to GND -4V to (Vdd + 0.3V) Operating Temperature -40 to +85 °C ALML, ALMM, ALMH, LDOCC, -0.3V to (Vdd + 0.3V) ESD Sensitivity (HBM) Class 1C LDOFB to GND Note that there are two different voltage domains on VGATEFB, TRGOUT, VddALM, -0.3V to (VDIG + 0.3V) HMC920LP5E; a high voltage domain Vdd, and a low voltage VddCHK to GND domain VDIG. Take necessary precautions not to violate ABS MAX ratings of each subdomains. 13 ELECTROSTATIC SENSITIVE DEVICE OBSERVE HANDLING PRECAUTIONS T M
