Datasheet HMC464LP5E (Analog Devices)
| Hersteller | Analog Devices |
| Beschreibung | GaAs PHEMT MMIC POWER AMPLIFIER, 2 - 20 GHz |
| Seiten / Seite | 9 / 1 — HMC464LP5E. GaAs PHEMT MMIC. POWER AMPLIFIER, 2 - 20 GHz. Typical … |
| Dateiformat / Größe | PDF / 1.2 Mb |
| Dokumentensprache | Englisch |
HMC464LP5E. GaAs PHEMT MMIC. POWER AMPLIFIER, 2 - 20 GHz. Typical Applications. Features. Functional Diagram. General Description
Modelllinie für dieses Datenblatt
Textversion des Dokuments

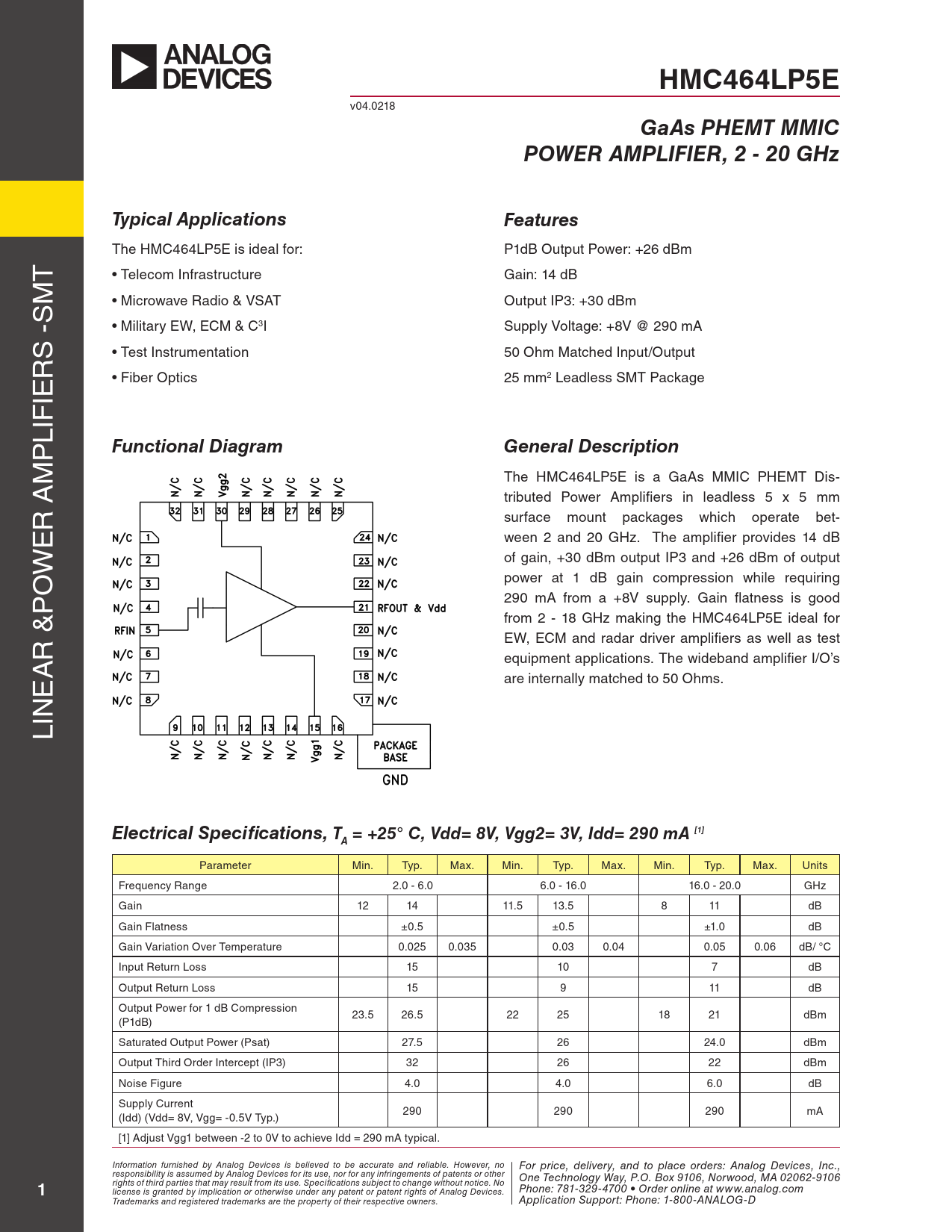

HMC464LP5E
v04.0218
GaAs PHEMT MMIC POWER AMPLIFIER, 2 - 20 GHz Typical Applications Features
The HMC464LP5E is ideal for: P1dB Output Power: +26 dBm T • Telecom Infrastructure Gain: 14 dB M S • Microwave Radio & VSAT Output IP3: +30 dBm • Military EW, ECM & C3I Supply Voltage: +8V @ 290 mA S - • Test Instrumentation 50 Ohm Matched Input/Output R • Fiber Optics 25 mm2 Leadless SMT Package IE LIF P
Functional Diagram General Description
M The HMC464LP5E is a GaAs MMIC PHEMT Dis- tributed Power Amplifiers in leadless 5 x 5 mm R A surface mount packages which operate bet- E ween 2 and 20 GHz. The amplifier provides 14 dB W of gain, +30 dBm output IP3 and +26 dBm of output O power at 1 dB gain compression while requiring P 290 mA from a +8V supply. Gain flatness is good from 2 - 18 GHz making the HMC464LP5E ideal for R & EW, ECM and radar driver amplifiers as well as test A equipment applications. The wideband amplifier I/O’s E are internal y matched to 50 Ohms. LIN
Electrical Specifications, T = +25° C, Vdd= 8V, Vgg2= 3V, Idd= 290 mA [1] A
Parameter Min. Typ. Max. Min. Typ. Max. Min. Typ. Max. Units Frequency Range 2.0 - 6.0 6.0 - 16.0 16.0 - 20.0 GHz Gain 12 14 11.5 13.5 8 11 dB Gain Flatness ±0.5 ±0.5 ±1.0 dB Gain Variation Over Temperature 0.025 0.035 0.03 0.04 0.05 0.06 dB/ °C Input Return Loss 15 10 7 dB Output Return Loss 15 9 11 dB Output Power for 1 dB Compression 23.5 26.5 22 25 18 21 dBm (P1dB) Saturated Output Power (Psat) 27.5 26 24.0 dBm Output Third Order Intercept (IP3) 32 26 22 dBm Noise Figure 4.0 4.0 6.0 dB Supply Current 290 290 290 mA (Idd) (Vdd= 8V, Vgg= -0.5V Typ.) [1] Adjust Vgg1 between -2 to 0V to achieve Idd = 290 mA typical. Information furnished by Analog Devices is believed to be accurate and reliable. However, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
1
rights of third parties that may result from its use. Specifications subject to change without notice. No Phone: 781-329-4700 • Order online at www.analog.com license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarks and registered trademarks are the property of their respective owners. Application Support: Phone: 1-800-ANALOG-D
v04.0218
GaAs PHEMT MMIC POWER AMPLIFIER, 2 - 20 GHz Typical Applications Features
The HMC464LP5E is ideal for: P1dB Output Power: +26 dBm T • Telecom Infrastructure Gain: 14 dB M S • Microwave Radio & VSAT Output IP3: +30 dBm • Military EW, ECM & C3I Supply Voltage: +8V @ 290 mA S - • Test Instrumentation 50 Ohm Matched Input/Output R • Fiber Optics 25 mm2 Leadless SMT Package IE LIF P
Functional Diagram General Description
M The HMC464LP5E is a GaAs MMIC PHEMT Dis- tributed Power Amplifiers in leadless 5 x 5 mm R A surface mount packages which operate bet- E ween 2 and 20 GHz. The amplifier provides 14 dB W of gain, +30 dBm output IP3 and +26 dBm of output O power at 1 dB gain compression while requiring P 290 mA from a +8V supply. Gain flatness is good from 2 - 18 GHz making the HMC464LP5E ideal for R & EW, ECM and radar driver amplifiers as well as test A equipment applications. The wideband amplifier I/O’s E are internal y matched to 50 Ohms. LIN
Electrical Specifications, T = +25° C, Vdd= 8V, Vgg2= 3V, Idd= 290 mA [1] A
Parameter Min. Typ. Max. Min. Typ. Max. Min. Typ. Max. Units Frequency Range 2.0 - 6.0 6.0 - 16.0 16.0 - 20.0 GHz Gain 12 14 11.5 13.5 8 11 dB Gain Flatness ±0.5 ±0.5 ±1.0 dB Gain Variation Over Temperature 0.025 0.035 0.03 0.04 0.05 0.06 dB/ °C Input Return Loss 15 10 7 dB Output Return Loss 15 9 11 dB Output Power for 1 dB Compression 23.5 26.5 22 25 18 21 dBm (P1dB) Saturated Output Power (Psat) 27.5 26 24.0 dBm Output Third Order Intercept (IP3) 32 26 22 dBm Noise Figure 4.0 4.0 6.0 dB Supply Current 290 290 290 mA (Idd) (Vdd= 8V, Vgg= -0.5V Typ.) [1] Adjust Vgg1 between -2 to 0V to achieve Idd = 290 mA typical. Information furnished by Analog Devices is believed to be accurate and reliable. However, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
1
rights of third parties that may result from its use. Specifications subject to change without notice. No Phone: 781-329-4700 • Order online at www.analog.com license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarks and registered trademarks are the property of their respective owners. Application Support: Phone: 1-800-ANALOG-D
