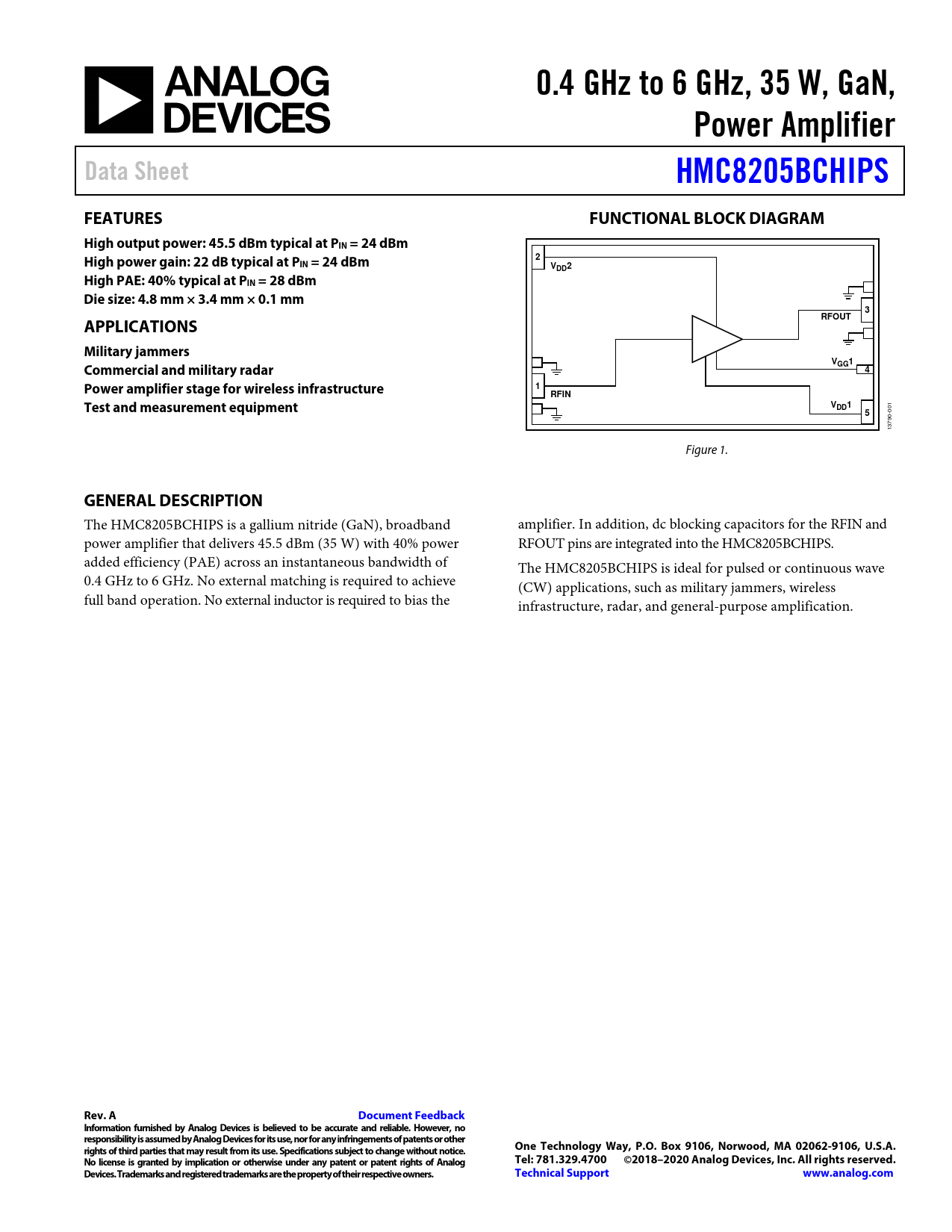

0.4 GHz to 6 GHz, 35 W, GaN,. Power Amplifier. Data Sheet. HMC8205BCHIPS. FEATURES. FUNCTIONAL BLOCK DIAGRAM
Modelllinie für dieses Datenblatt
Textversion des Dokuments
0.4 GHz to 6 GHz, 35 W, GaN, Power Amplifier Data Sheet HMC8205BCHIPS FEATURES FUNCTIONAL BLOCK DIAGRAM High output power: 45.5 dBm typical at PIN = 24 dBm High power gain: 22 dB typical at P 2 IN = 24 dBm VDD2 High PAE: 40% typical at PIN = 28 dBm Die size: 4.8 mm × 3.4 mm × 0.1 mm 3 RFOUT APPLICATIONS Military jammers V Commercial and military radar GG1 4 Power amplifier stage for wireless infrastructure 1 RFIN Test and measurement equipment VDD1 5
001 13790- Figure 1.
GENERAL DESCRIPTION
The HMC8205BCHIPS is a gallium nitride (GaN), broadband amplifier. In addition, dc blocking capacitors for the RFIN and power amplifier that delivers 45.5 dBm (35 W) with 40% power RFOUT pins are integrated into the HMC8205BCHIPS. added efficiency (PAE) across an instantaneous bandwidth of The HMC8205BCHIPS is ideal for pulsed or continuous wave 0.4 GHz to 6 GHz. No external matching is required to achieve (CW) applications, such as military jammers, wireless ful band operation. No external inductor is required to bias the infrastructure, radar, and general-purpose amplification.
