HMC372LP3 / 372LP3E
v03.0610
GaAs PHEMT MMIC LOW NOISE AMPLIFIER, 700 - 1000 MHz
7

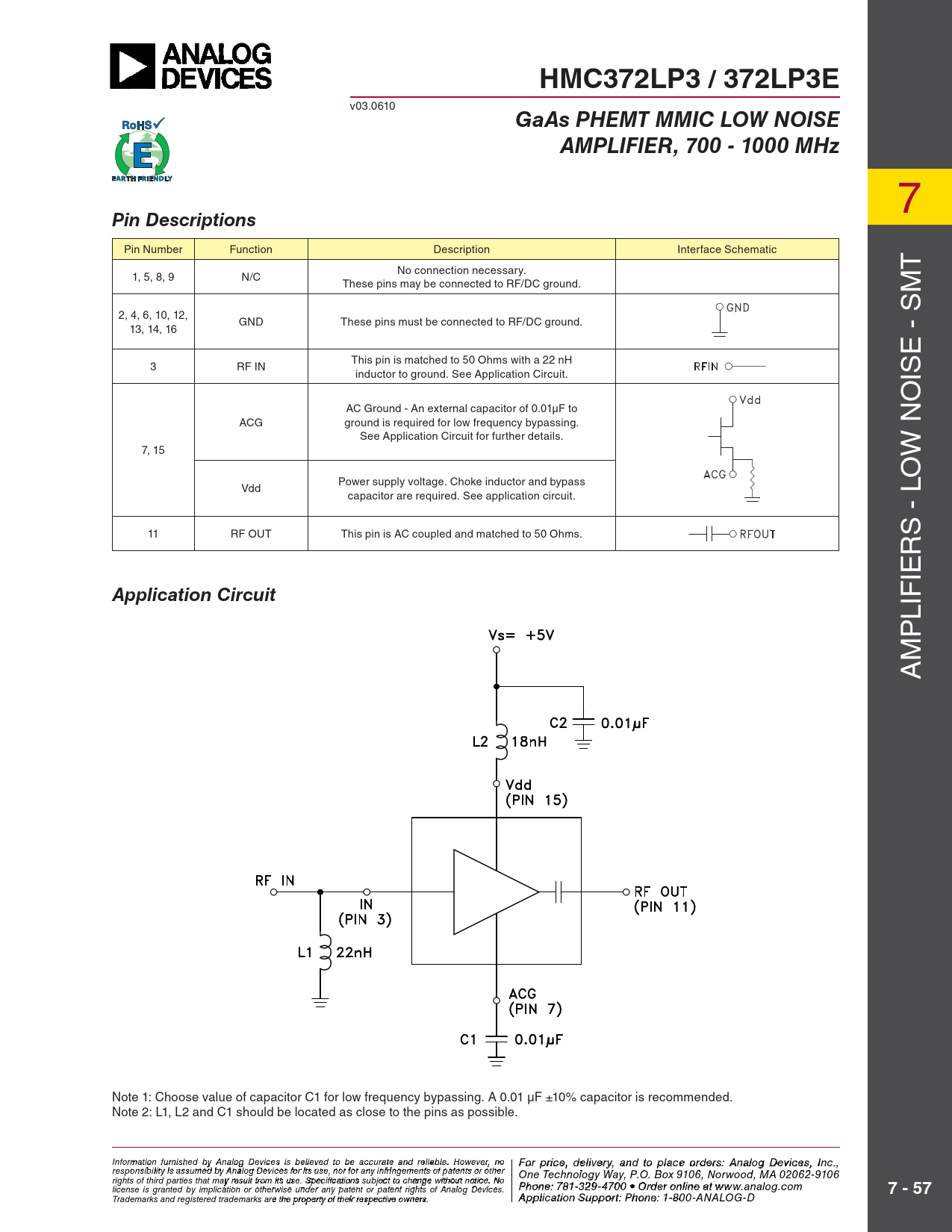

Pin Descriptions
Pin Number Function Description Interface Schematic No connection necessary. T 1, 5, 8, 9 N/C These pins may be connected to RF/DC ground. 2, 4, 6, 10, 12, GND These pins must be connected to RF/DC ground. 13, 14, 16 E - SM This pin is matched to 50 Ohms with a 22 nH 3 RF IN inductor to ground. See Application Circuit. IS AC Ground - An external capacitor of 0.01μF to ACG ground is required for low frequency bypassing. See Application Circuit for further details. 7, 15 W NO O Power supply voltage. Choke inductor and bypass Vdd capacitor are required. See application circuit. - L 11 RF OUT This pin is AC coupled and matched to 50 Ohms. S R IE
