HMC463LP5 / 463LP5E
v09.0717
GaAs pHEMT MMIC LOW NOISE AGC AMPLIFIER, 2 - 20 GHz
7

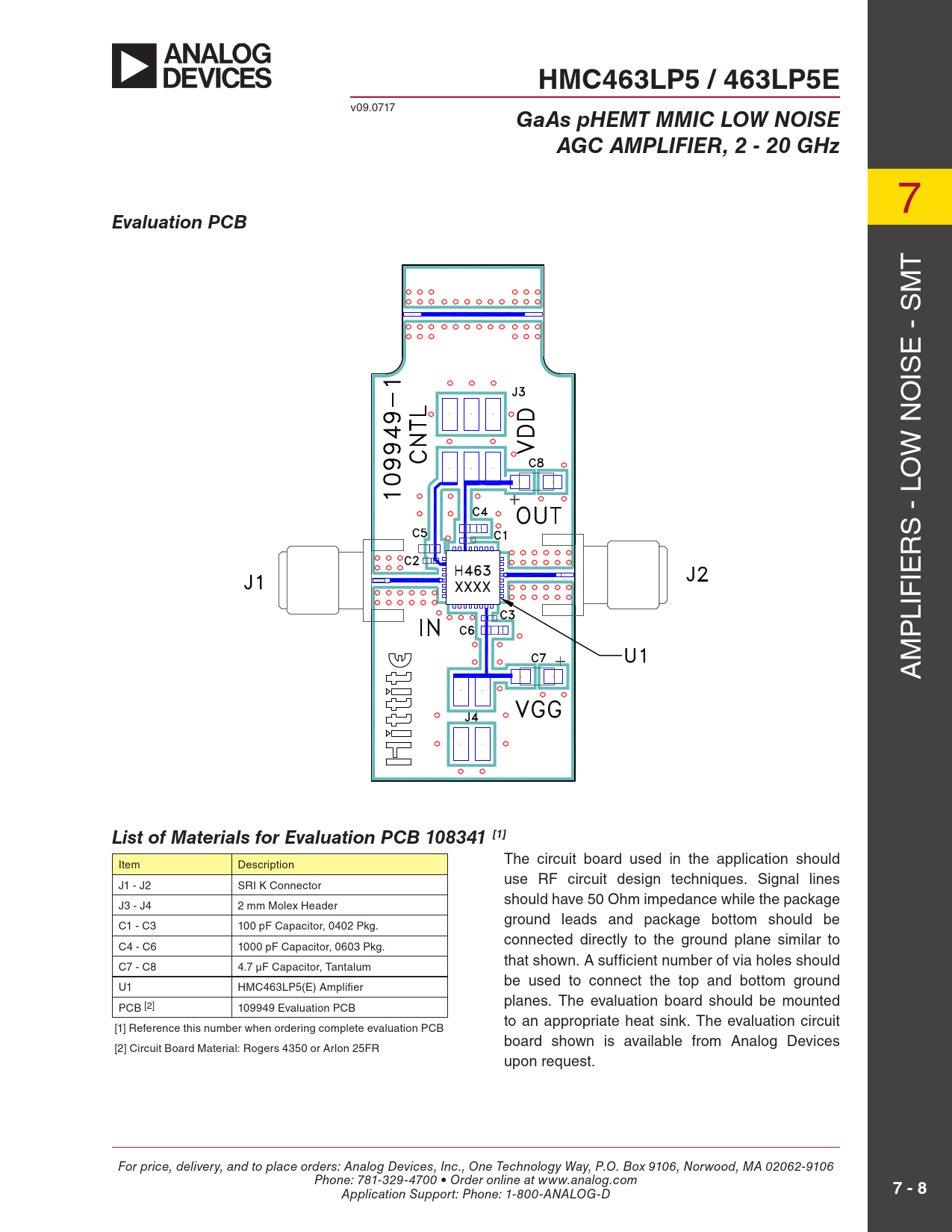

Evaluation PCB
T M E - S IS O W N O S - L R IE LIF P M A
List of Materials for Evaluation PCB 108341 [1]
The circuit board used in the application should Item Description use RF circuit design techniques. Signal lines J1 - J2 SRI K Connector should have 50 Ohm impedance while the package J3 - J4 2 mm Molex Header ground leads and package bottom should be C1 - C3 100 pF Capacitor, 0402 Pkg. connected directly to the ground plane similar to C4 - C6 1000 pF Capacitor, 0603 Pkg. that shown. A sufficient number of via holes should C7 - C8 4.7 µF Capacitor, Tantalum be used to connect the top and bottom ground U1 HMC463LP5(E) Amplifier planes. The evaluation board should be mounted PCB [2] 109949 Evaluation PCB to an appropriate heat sink. The evaluation circuit [1] Reference this number when ordering complete evaluation PCB board shown is available from Analog Devices [2] Circuit Board Material: Rogers 4350 or Arlon 25FR upon request. For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com Application Support: Phone: 1-800-ANALOG-D
7 - 8
