HMC517LC4. SMT PHEMT LOW NOISE. AMPLIFIER, 17 - 26 GHz. Absolute Maximum Ratings. Typical Supply Current vs. Vdd
Modelllinie für dieses Datenblatt
Textversion des Dokuments
HMC517LC4
v04.1017

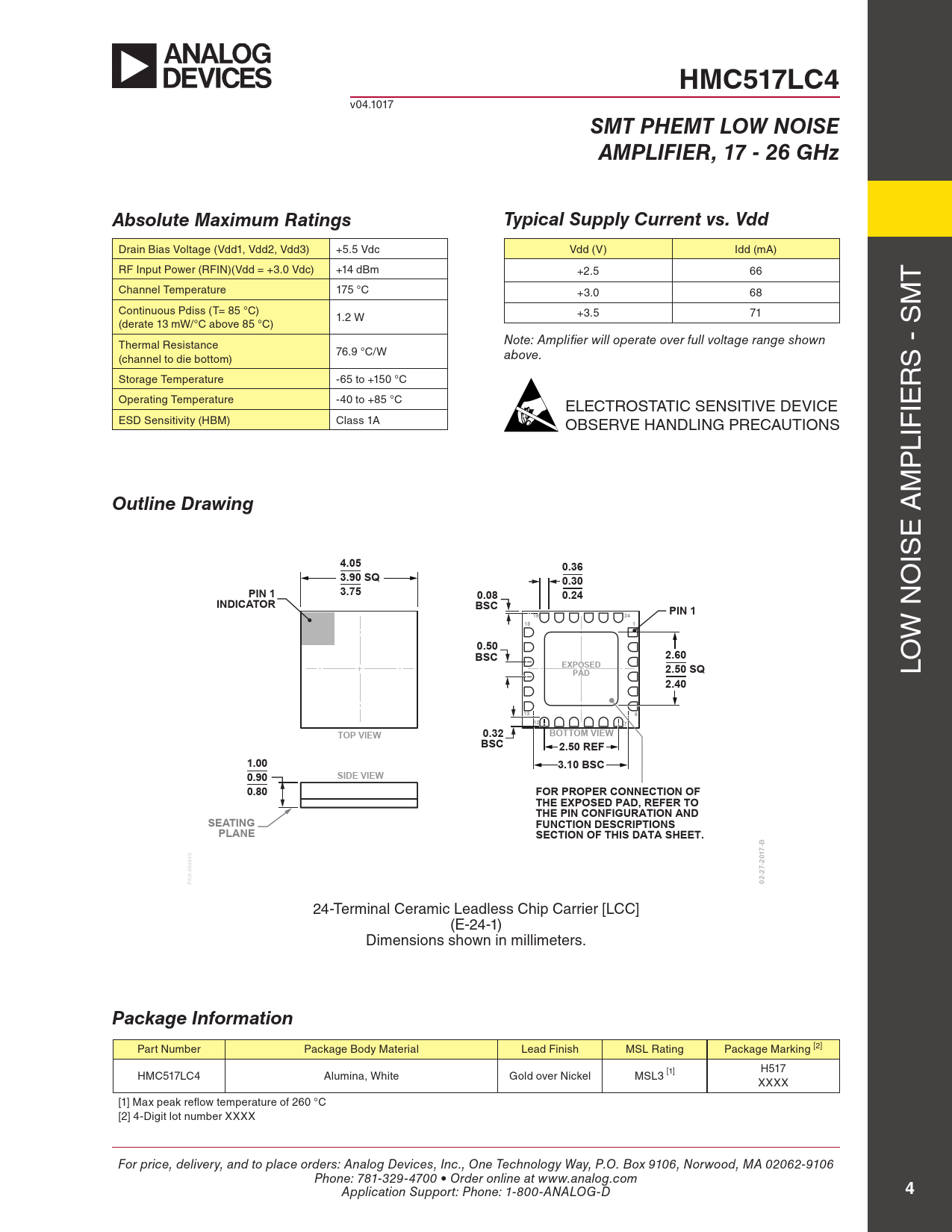

SMT PHEMT LOW NOISE AMPLIFIER, 17 - 26 GHz Absolute Maximum Ratings Typical Supply Current vs. Vdd
Drain Bias Voltage (Vdd1, Vdd2, Vdd3) +5.5 Vdc Vdd (V) Idd (mA) RF Input Power (RFIN)(Vdd = +3.0 Vdc) +14 dBm +2.5 66 T Channel Temperature 175 °C +3.0 68 M Continuous Pdiss (T= 85 °C) 1.2 W +3.5 71 (derate 13 mW/°C above 85 °C) Thermal Resistance Note: Amplifier will operate over full voltage range shown 76.9 °C/W (channel to die bottom) above. S - S Storage Temperature -65 to +150 °C R Operating Temperature -40 to +85 °C ELECTROSTATIC SENSITIVE DEVICE IE ESD Sensitivity (HBM) Class 1A OBSERVE HANDLING PRECAUTIONS LIF
24-Terminal Ceramic Leadless Chip Carrier [LCC]
P
(E-24-1)
M
Outline Drawing Dimensions shown in millimeters.
E A
4.05
IS
0.36 3.90 SQ 0.30
O
PIN 1 3.75 0.08 0.24 INDICATOR BSC PIN 1 19 24 18 1
W N
0.50 BSC 2.60 EXPOSED PAD 2.50 SQ
LO
2.40 13 6 12 7 TOP VIEW 0.32 BOTTOM VIEW BSC 2.50 REF 1.00 3.10 BSC 0.90 SIDE VIEW 0.80 FOR PROPER CONNECTION OF THE EXPOSED PAD, REFER TO THE PIN CONFIGURATION AND SEATING FUNCTION DESCRIPTIONS PLANE SECTION OF THIS DATA SHEET. PKG-004840 02-27-2017-B
24-Terminal Ceramic Leadless Chip Carrier [LCC] (E-24-1) Dimensions shown in mil imeters.
Package Information
Part Number Package Body Material Lead Finish MSL Rating Package Marking [2] HMC517LC4 Alumina, White Gold over Nickel MSL3 [1] H517 XXXX [1] Max peak reflow temperature of 260 °C [2] 4-Digit lot number XXXX For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com Application Support: Phone: 1-800-ANALOG-D
