Datasheet HMC606LC5 (Analog Devices) - 4
| Hersteller | Analog Devices |
| Beschreibung | GaAs, InGaP, HBT, MMIC, Ultralow Phase Noise, Distributed Amplifier, 2 GHz to 18 GHz |
| Seiten / Seite | 9 / 4 — HMC606LC5. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 4. Parameter. … |
| Revision | J |
| Dateiformat / Größe | PDF / 204 Kb |
| Dokumentensprache | Englisch |
HMC606LC5. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 4. Parameter. Rating. ESD CAUTION
Modelllinie für dieses Datenblatt
Textversion des Dokuments
link to page 9

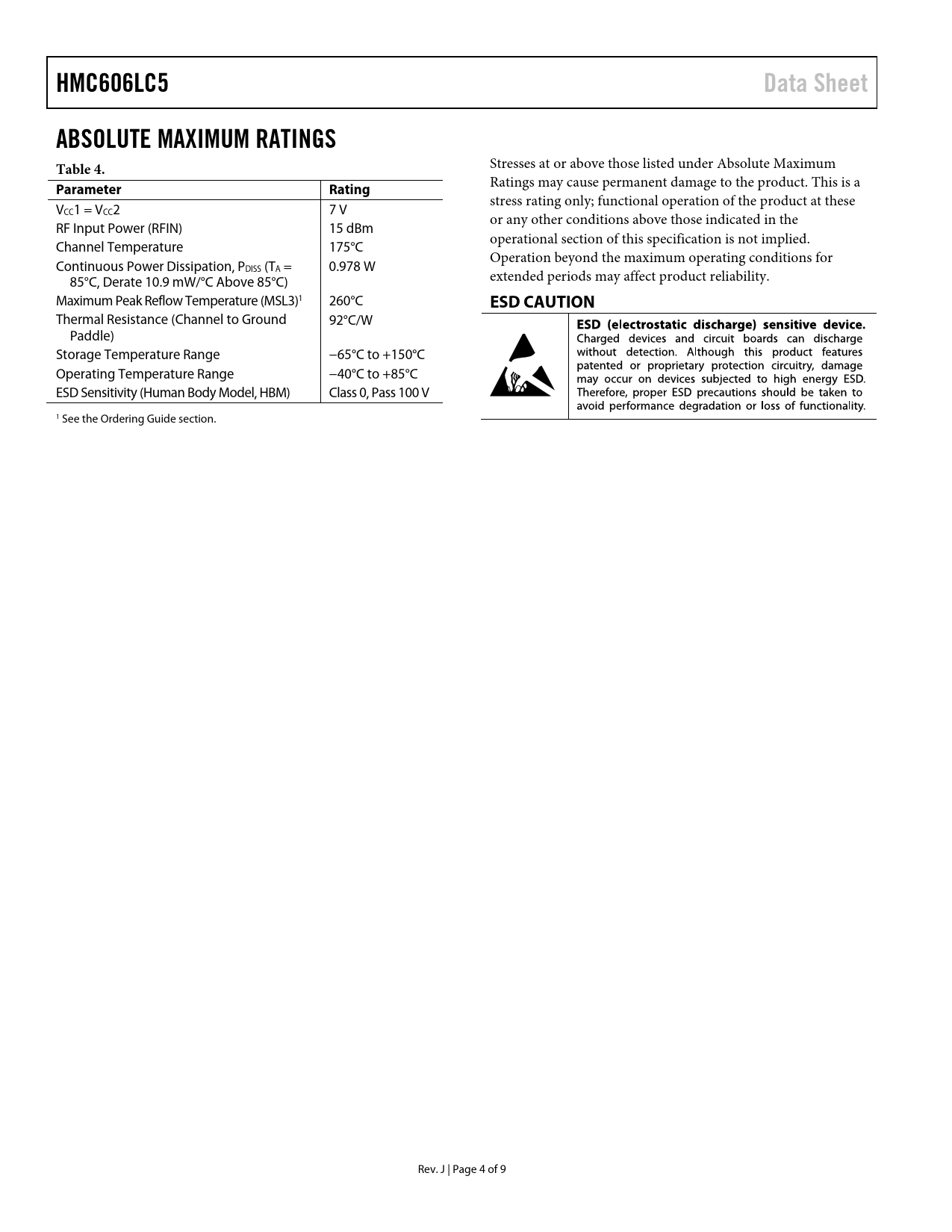

HMC606LC5 Data Sheet ABSOLUTE MAXIMUM RATINGS Table 4.
Stresses at or above those listed under Absolute Maximum
Parameter Rating
Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these VCC1 = VCC2 7 V or any other conditions above those indicated in the RF Input Power (RFIN) 15 dBm operational section of this specification is not implied. Channel Temperature 175°C Operation beyond the maximum operating conditions for Continuous Power Dissipation, PDISS (TA = 0.978 W 85°C, Derate 10.9 mW/°C Above 85°C) extended periods may affect product reliability. Maximum Peak Reflow Temperature (MSL3)1 260°C
ESD CAUTION
Thermal Resistance (Channel to Ground 92°C/W Paddle) Storage Temperature Range −65°C to +150°C Operating Temperature Range −40°C to +85°C ESD Sensitivity (Human Body Model, HBM) Class 0, Pass 100 V 1 See the Ordering Guide section. Rev. J | Page 4 of 9 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS INTERFACE SCHEMATICS TYPICAL PERFORMANCE CHARACTERISTICS APPLICATIONS INFORMATION EVALUATION PRINTED CIRCUIT BOARD (PCB) OUTLINE DIMENSIONS ORDERING GUIDE
