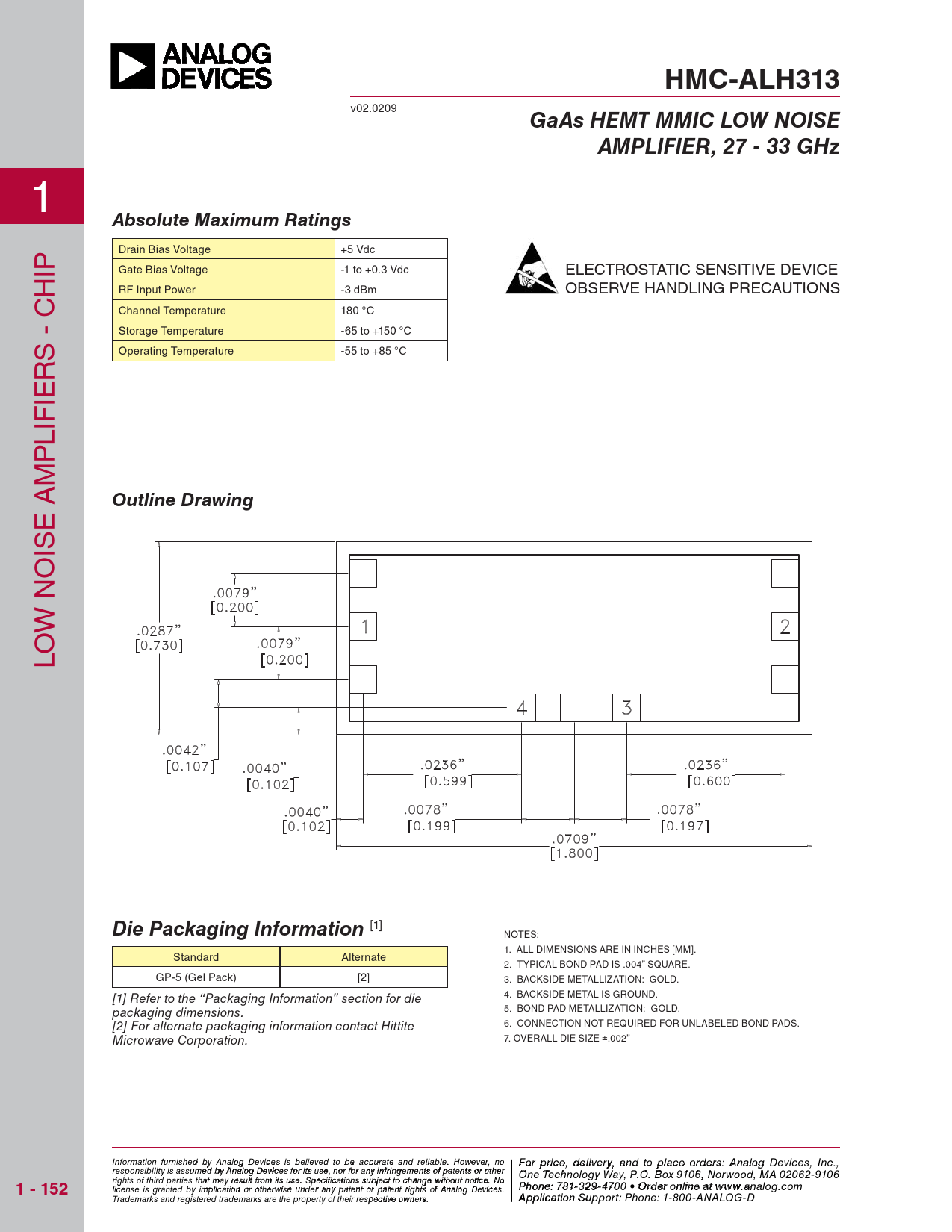

HMC-ALH313
v02.0209
GaAs HEMT MMIC LOW NOISE AMPLIFIER, 27 - 33 GHz
1
Absolute Maximum Ratings
Drain Bias Voltage +5 Vdc IP Gate Bias Voltage -1 to +0.3 Vdc ELECTROSTATIC SENSITIVE DEVICE H RF Input Power -3 dBm OBSERVE HANDLING PRECAUTIONS C Channel Temperature 180 °C - Storage Temperature -65 to +150 °C Operating Temperature -55 to +85 °C RS IE IF L P M A
Outline Drawing
E IS O N W O L
Die Packaging Information
[1] NOTES: 1. ALL DIMENSIONS ARE IN INCHES [MM]. Standard Alternate 2. TYPICAL BOND PAD IS .004” SQUARE. GP-5 (Gel Pack) [2] 3. BACKSIDE METALLIZATION: GOLD. 4. BACKSIDE METAL IS GROUND. [1] Refer to the “Packaging Information” section for die 5. BOND PAD METALLIZATION: GOLD. packaging dimensions. 6. CONNECTION NOT REQUIRED FOR UNLABELED BOND PADS. [2] For alternate packaging information contact Hittite 7. OVERALL DIE SIZE ±.002” Microwave Corporation. Information furnish F ed obr pri y Anal ce, de og Device li s vie s r beyli, a eve nd to pla d to be accura ce o te and rder reliabl s e , pl . Ho ease co wever, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other ntact Hittite Microwave Corporation: One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 rights of third parties that may result from its use. Specifications subject to change without notice. No
