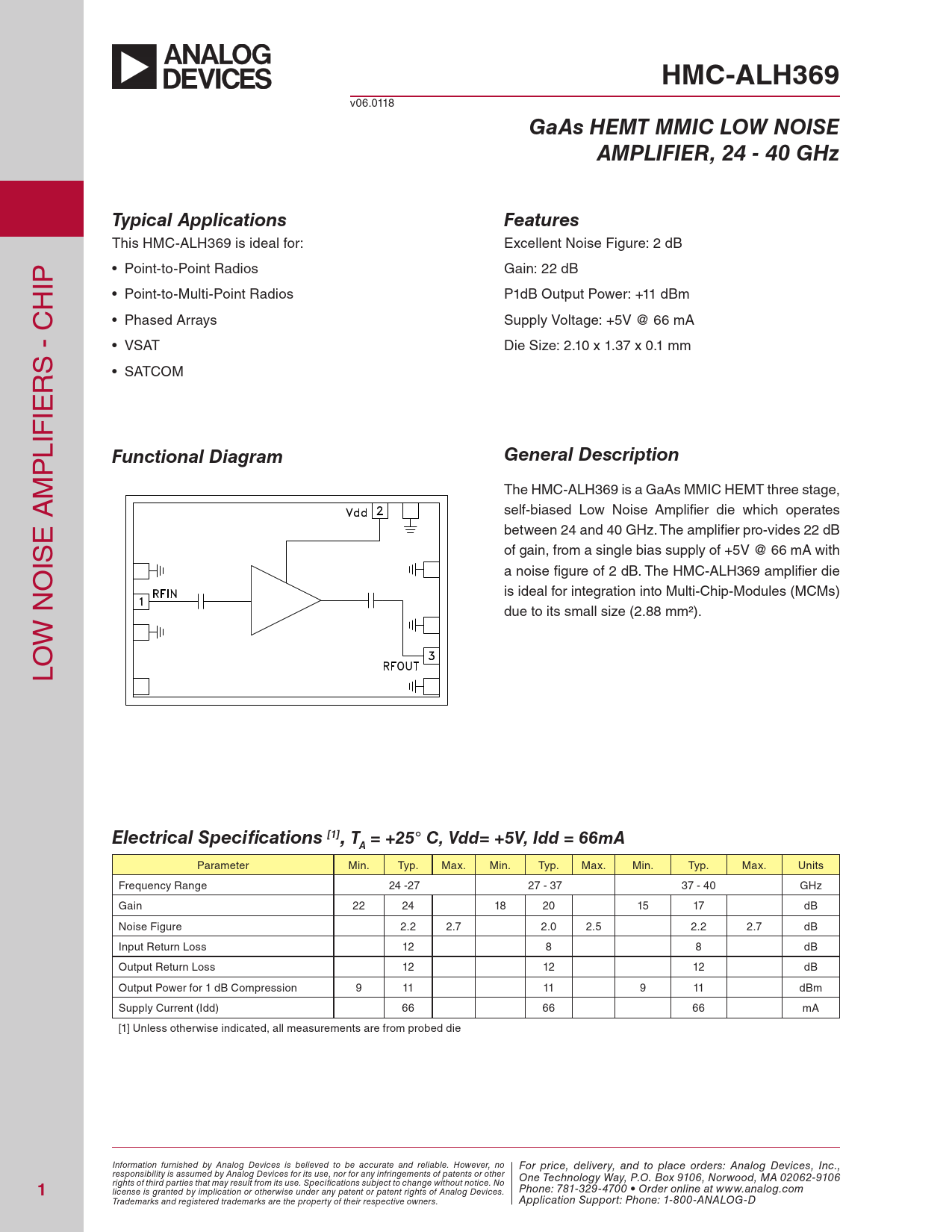

Datasheet HMC-ALH369 (Analog Devices)

HMC-ALH369
v06.0118
GaAs HEMT MMIC LOW NOISE AMPLIFIER, 24 - 40 GHz Typical Applications Features
This HMC-ALH369 is ideal for: Excel ent Noise Figure: 2 dB IP • Point-to-Point Radios Gain: 22 dB H • Point-to-Multi-Point Radios P1dB Output Power: +11 dBm C • Phased Arrays Supply Voltage: +5V @ 66 mA - • VSAT Die Size: 2.10 x 1.37 x 0.1 mm S R • SATCOM IE LIF P
Functional Diagram General Description
M The HMC-ALH369 is a GaAs MMIC HEMT three stage, A self-biased Low Noise Amplifier die which operates E between 24 and 40 GHz. The amplifier pro-vides 22 dB IS of gain, from a single bias supply of +5V @ 66 mA with O a noise figure of 2 dB. The HMC-ALH369 amplifier die is ideal for integration into Multi-Chip-Modules (MCMs) N due to its small size (2.88 mm²). W LO
Electrical Specifications [1], T = +25° C, Vdd= +5V, Idd = 66mA A
Parameter Min. Typ. Max. Min. Typ. Max. Min. Typ. Max. Units Frequency Range 24 -27 27 - 37 37 - 40 GHz Gain 22 24 18 20 15 17 dB Noise Figure 2.2 2.7 2.0 2.5 2.2 2.7 dB Input Return Loss 12 8 8 dB Output Return Loss 12 12 12 dB Output Power for 1 dB Compression 9 11 11 9 11 dBm Supply Current (Idd) 66 66 66 mA [1] Unless otherwise indicated, all measurements are from probed die Information furnished by Analog Devices is believed to be accurate and reliable. However, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
1
rights of third parties that may result from its use. Specifications subject to change without notice. No Phone: 781-329-4700 • Order online at www.analog.com license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarks and registered trademarks are the property of their respective owners. Application Support: Phone: 1-800-ANALOG-D
