Datasheet HMC-ALH445 (Analog Devices)
| Hersteller | Analog Devices |
| Beschreibung | GaAs HEMT MMIC LOW NOISE AMPLIFIER, 18 - 40 GHz |
| Seiten / Seite | 6 / 1 — HMC-ALH445. GaAs HEMT MMIC LOW NOISE. AMPLIFIER, 18 - 40 GHz. Typical … |
| Dateiformat / Größe | PDF / 337 Kb |
| Dokumentensprache | Englisch |
HMC-ALH445. GaAs HEMT MMIC LOW NOISE. AMPLIFIER, 18 - 40 GHz. Typical Applications. Features. Functional Diagram
Modelllinie für dieses Datenblatt
Textversion des Dokuments

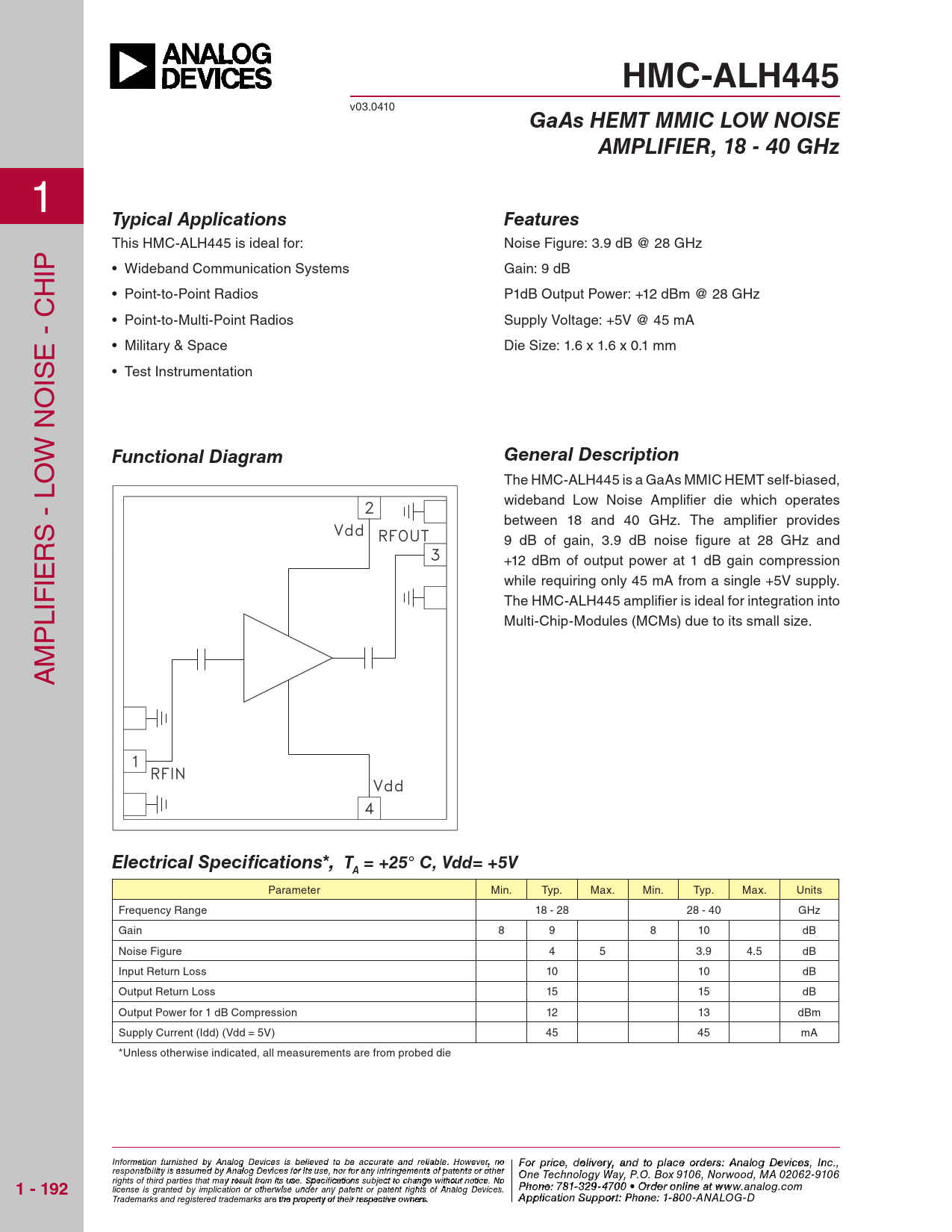

HMC-ALH445
v03.0410
GaAs HEMT MMIC LOW NOISE AMPLIFIER, 18 - 40 GHz
1
Typical Applications Features
This HMC-ALH445 is ideal for: Noise Figure: 3.9 dB @ 28 GHz IP • Wideband Communication Systems Gain: 9 dB H • Point-to-Point Radios P1dB Output Power: +12 dBm @ 28 GHz • Point-to-Multi-Point Radios Supply Voltage: +5V @ 45 mA E - C • Military & Space Die Size: 1.6 x 1.6 x 0.1 mm IS • Test Instrumentation W NO
Functional Diagram General Description
O The HMC-ALH445 is a GaAs MMIC HEMT self-biased, wideband Low Noise Amplifi er die which operates between 18 and 40 GHz. The amplifi er provides S - L 9 dB of gain, 3.9 dB noise fi gure at 28 GHz and R +12 dBm of output power at 1 dB gain compression IE while requiring only 45 mA from a single +5V supply. IF The HMC-ALH445 amplifi er is ideal for integration into L Multi-Chip-Modules (MCMs) due to its small size. P M A
Electrical Specifi cations*, T = +25° C, Vdd= +5V A
Parameter Min. Typ. Max. Min. Typ. Max. Units Frequency Range 18 - 28 28 - 40 GHz Gain 8 9 8 10 dB Noise Figure 4 5 3.9 4.5 dB Input Return Loss 10 10 dB Output Return Loss 15 15 dB Output Power for 1 dB Compression 12 13 dBm Supply Current (Idd) (Vdd = 5V) 45 45 mA *Unless otherwise indicated, all measurements are from probed die Infor F m o ati r pr on fu irc n e, de ished b l y iv Anealroyg a D n evid to p ces is b lealic ev e o ed t rde o be ras cc: H urat it e taitne M d relia icr ble. ow Ho a we vve C er, n o o rpFo o rr aptriio c n e , 2 de0li A verlpha R y, and t o o ad, C place h o e rdlm er s s: fo A rd, MA 01 nalog Devic 8 e 2 s, 4Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 rights of third parties that may result from its use. Specifications subject to change without notice. No
1 - 192
Phone: 978-250-3343 Fax: 978-250-3373 O Ph rde one r O : 7 n 81- - 3 li 2 n 9-e a 470 t ww 0 • O w rd . e hi r ott nlite n .c e a o t m license is granted by implication or otherwise under any patent or patent rights of Analog Devices. www.analog.com Application Support: Pho Trademarks and registered trademarks are the property of their respective owners. ne: 978-250-33 A 4 p 3 o plicat r app ion Sups@ por h t it : Ptite hon .c e o : 1 m -800-ANALOG-D
