HMC751LC4
v01.0514

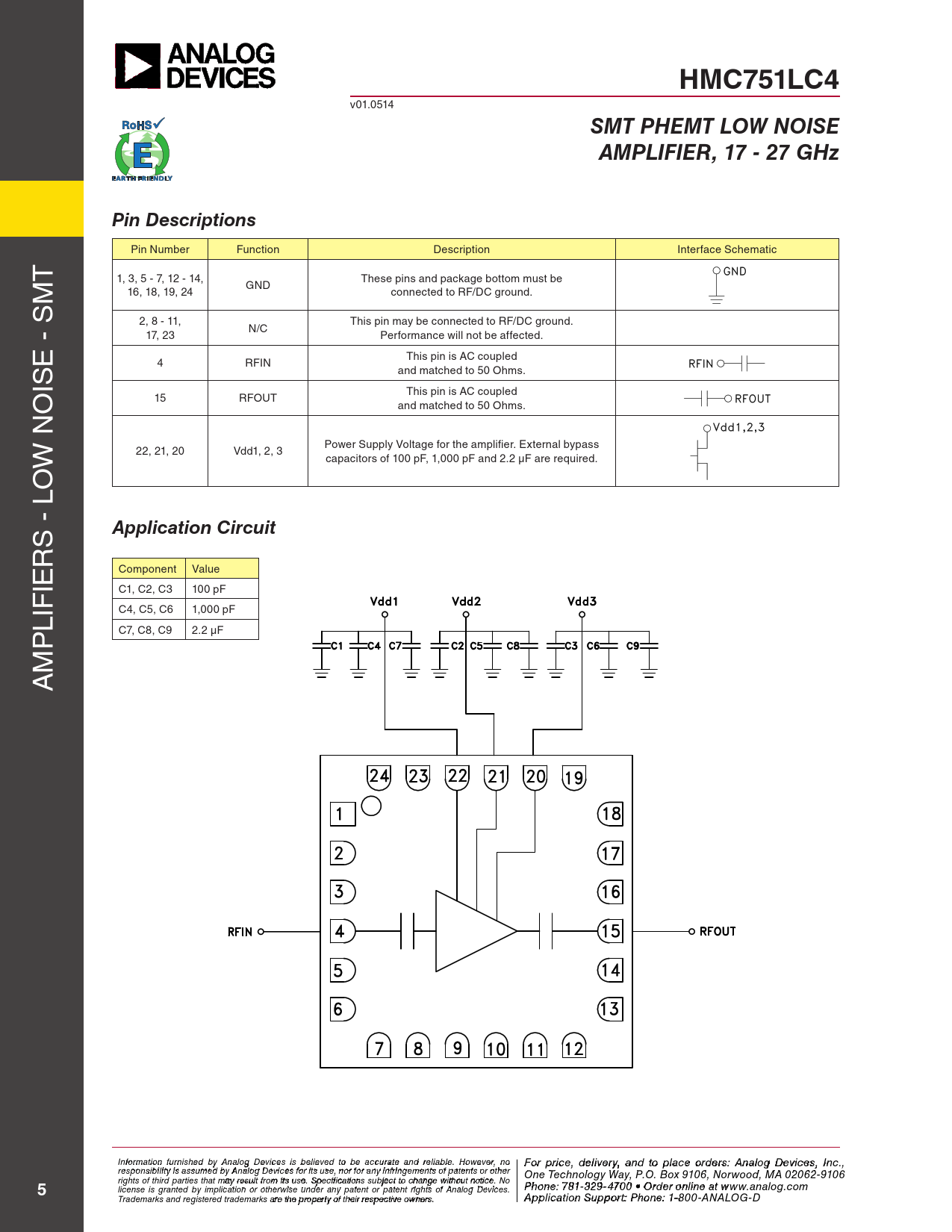

SMT pHEMT LOW NOISE AMpLIFIER, 17 - 27 GHz pin Descriptions
Pin Number Function Description Interface Schematic T 1, 3, 5 - 7, 12 - 14, These pins and package bottom must be M GND 16, 18, 19, 24 connected to RF/DC ground. 2, 8 - 11, This pin may be connected to RF/DC ground. N/C 17, 23 Performance will not be affected. E - S This pin is AC coupled 4 RFIN IS and matched to 50 Ohms. O This pin is AC coupled 15 RFOUT and matched to 50 Ohms. W N Power Supply Voltage for the amplifier. External bypass 22, 21, 20 Vdd1, 2, 3 capacitors of 100 pF, 1,000 pF and 2.2 µF are required. O S - L
Application Circuit
R IE Component Value C1, C2, C3 100 pF LIF C4, C5, C6 1,000 pF P C7, C8, C9 2.2 µF M A I F nf o or r p mati r o in cfe ur , d nish e e l d iv b e y r A y a nalo n g d t Devi o p ces i la s c bele o ieve rd d t e o rbs e : H acc iutrtatite e M and ic reli rao bl w e. a H v o e C wever o , nrp o For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other oration, 2 Elizabeth Drive, Chelmsford, MA 01824 One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 978-250-3343 Fax: 978-250-3373 O rights of third parties that may result from its use. Specifications subject to change without notice. No rd Phoe n r O e: 7 n- 81-li 3 n 2 e a 9-4 t w 70 ww 0 • O . rdh e itt r o it nle i . n co e a m
