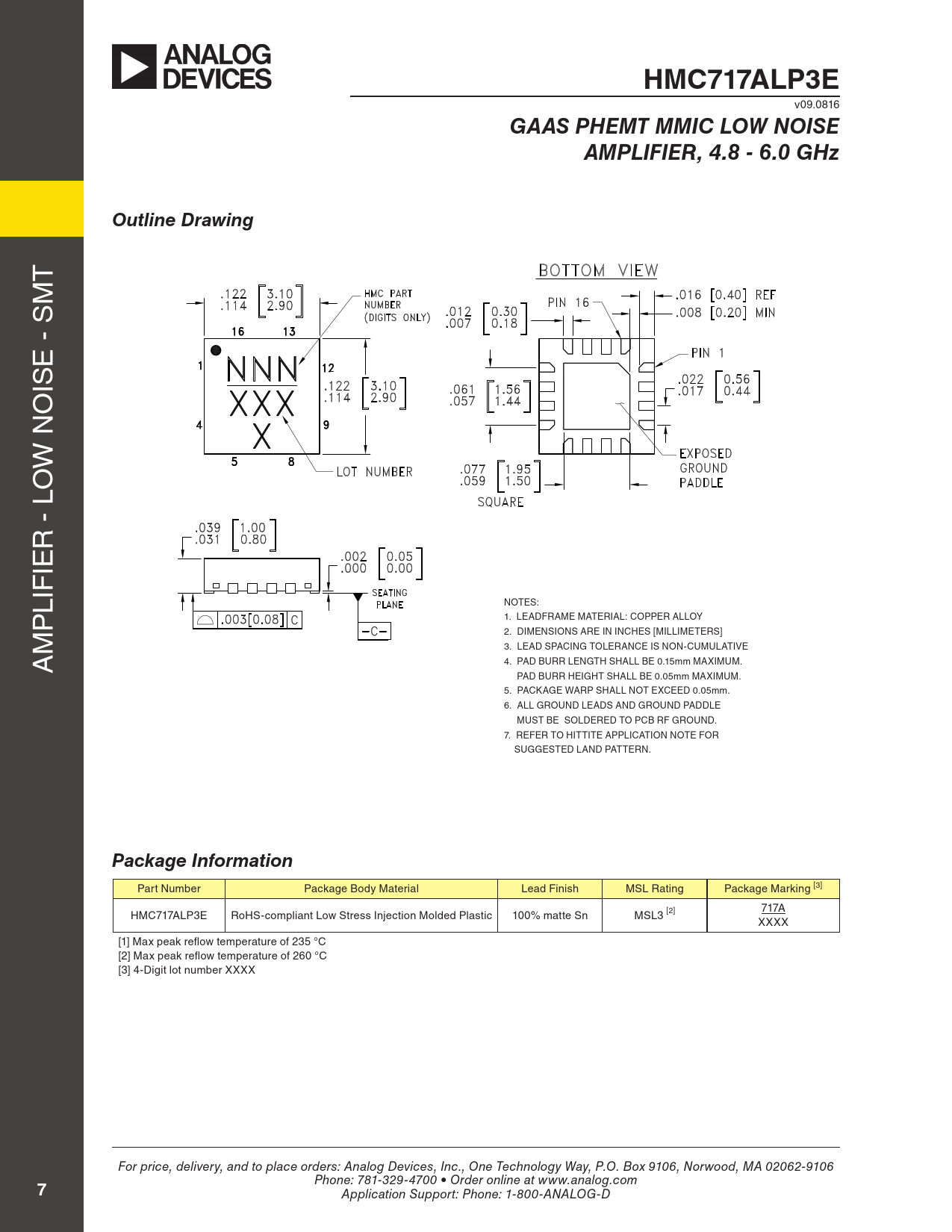

HMC717ALP3E. Gaas pHEMT MMIC LOW NOIsE. aMpLIFIER, 4.8 - 6.0 GHz. Outline Drawing. package Information
Modelllinie für dieses Datenblatt
Textversion des Dokuments
HMC717ALP3E
v09.0816
Gaas pHEMT MMIC LOW NOIsE aMpLIFIER, 4.8 - 6.0 GHz Outline Drawing
T M E - S IS O W N O R - L IE LIF NOTES: P 1. LEADFRAME MATERIAL: COPPER ALLOY M 2. DIMENSIONS ARE IN INCHES [MILLIMETERS] 3. LEAD SPACING TOLERANCE IS NON-CUMULATIVE A 4. PAD BURR LENGTH SHALL BE 0.15mm MAXIMUM. PAD BURR HEIGHT SHALL BE 0.05mm MAXIMUM. 5. PACKAGE WARP SHALL NOT EXCEED 0.05mm. 6. ALL GROUND LEADS AND GROUND PADDLE MUST BE SOLDERED TO PCB RF GROUND. 7. REFER TO HITTITE APPLICATION NOTE FOR SUGGESTED LAND PATTERN.
package Information
Part Number Package Body Material Lead Finish MSL Rating Package Marking [3] HMC717ALP3E RoHS-compliant Low Stress Injection Molded Plastic 100% matte Sn MSL3 [2] 717A XXXX [1] Max peak reflow temperature of 235 °C [2] Max peak reflow temperature of 260 °C [3] 4-Digit lot number XXXX For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com
