Datasheet ADL9006 (Analog Devices) - 6
| Hersteller | Analog Devices |
| Beschreibung | 2 GHz to 28 GHz, GaAs, pHEMT, MMIC Low Noise Amplifier |
| Seiten / Seite | 14 / 6 — ADL9006. Data Sheet. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. GND 1. … |
| Dateiformat / Größe | PDF / 400 Kb |
| Dokumentensprache | Englisch |

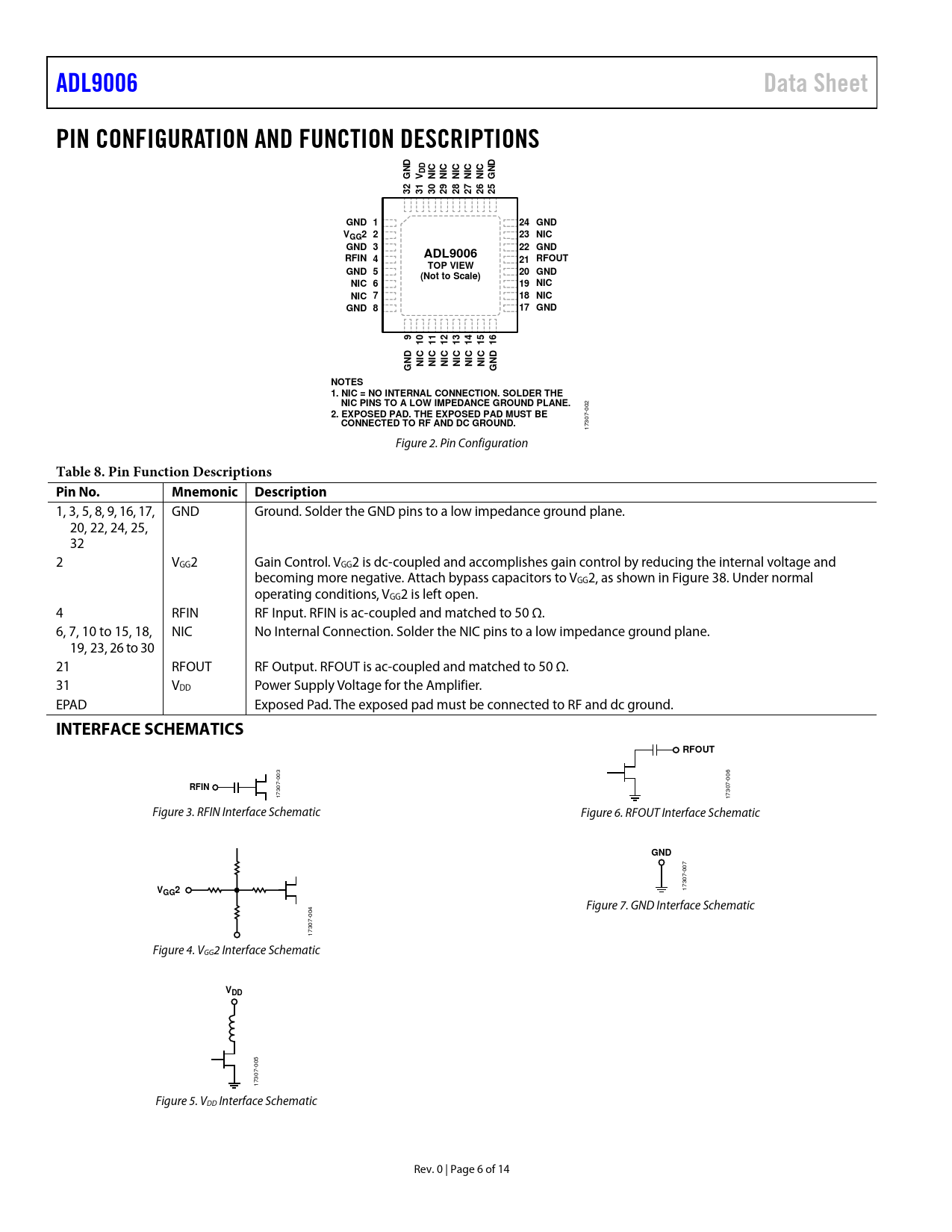

ADL9006. Data Sheet. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. GND 1. 24 GND. GG2. 23 NIC. GND 3. 22 GND. RFIN 4. 21 RFOUT. TOP VIEW. GND 5
Modelllinie für dieses Datenblatt
Textversion des Dokuments
link to page 13
ADL9006 Data Sheet PIN CONFIGURATION AND FUNCTION DESCRIPTIONS C C C C C ND DD ND G V NI NI NI NI NI G 32 31 30 29 28 27 26 25 GND 1 24 GND V 2 GG2 23 NIC GND 3 22 GND ADL9006 RFIN 4 21 RFOUT TOP VIEW GND 5 20 GND (Not to Scale) NIC 6 19 NIC NIC 7 18 NIC GND 8 17 GND 9 10 11 12 13 14 15 16 C C C C C C ND NI NI NI NI NI NI ND G G NOTES 1. NIC = NO INTERNAL CONNECTION. SOLDER THE NIC PINS TO A LOW IMPEDANCE GROUND PLANE.
002
2. EXPOSED PAD. THE EXPOSED PAD MUST BE CONNECTED TO RF AND DC GROUND.
17307- Figure 2. Pin Configuration
Table 8. Pin Function Descriptions Pin No. Mnemonic Description
1, 3, 5, 8, 9, 16, 17, GND Ground. Solder the GND pins to a low impedance ground plane. 20, 22, 24, 25, 32 2 VGG2 Gain Control. VGG2 is dc-coupled and accomplishes gain control by reducing the internal voltage and becoming more negative. Attach bypass capacitors to VGG2, as shown in Figure 38. Under normal operating conditions, VGG2 is left open. 4 RFIN RF Input. RFIN is ac-coupled and matched to 50 Ω. 6, 7, 10 to 15, 18, NIC No Internal Connection. Solder the NIC pins to a low impedance ground plane. 19, 23, 26 to 30 21 RFOUT RF Output. RFOUT is ac-coupled and matched to 50 Ω. 31 VDD Power Supply Voltage for the Amplifier. EPAD Exposed Pad. The exposed pad must be connected to RF and dc ground.
INTERFACE SCHEMATICS RFOUT
003 006
RFIN
17307- 17307- Figure 3. RFIN Interface Schematic Figure 6. RFOUT Interface Schematic
GND
007
V
17307-
GG2
Figure 7. GND Interface Schematic 004 17307- Figure 4. VGG2 Interface Schematic
VDD
005 17307- Figure 5. VDD Interface Schematic Rev. 0 | Page 6 of 14 Document Outline Features Applications Functional Block Diagram General Description Revision History Specifications 2 GHz to 6 GHz 6 GHz to 20 GHz 20 GHz to 28 GHz DC Specifications Absolute Maximum Ratings Electrostatic Discharge (ESD) Ratings ESD Ratings for ADL9006 ESD Caution Pin Configuration and Function Descriptions Interface Schematics Typical Performance Characteristics Theory of Operation Applications Information Biasing Procedures Outline Dimensions Ordering Guide
