HMC788A-EP. Enhanced Product. ABSOLUTE MAXIMUM RATINGS Table 2. THERMAL RESISTANCE. Parameter. Rating. Table 3. Thermal Resistance
Modelllinie für dieses Datenblatt
Textversion des Dokuments
link to page 4 link to page 4

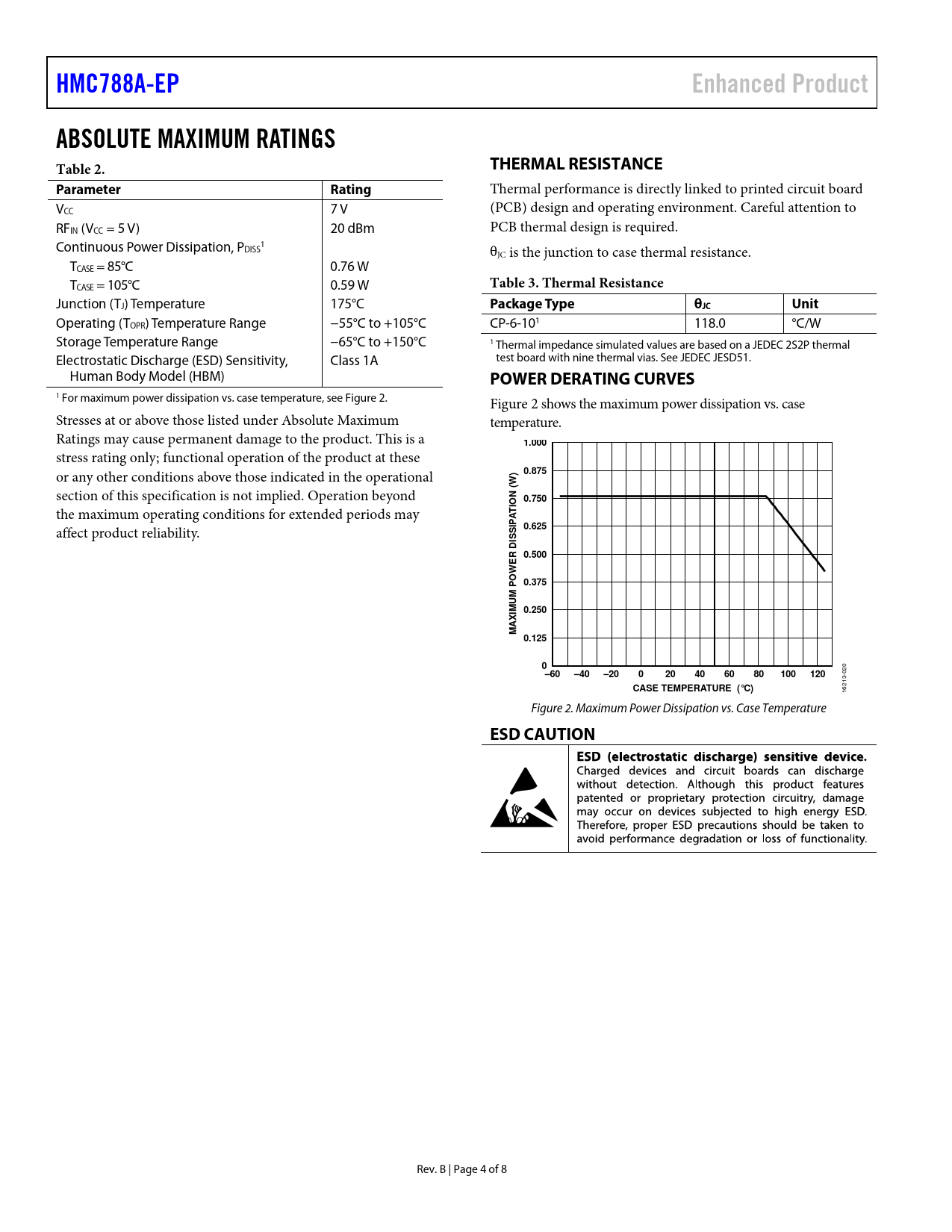

HMC788A-EP Enhanced Product ABSOLUTE MAXIMUM RATINGS Table 2. THERMAL RESISTANCE Parameter Rating
Thermal performance is directly linked to printed circuit board VCC 7 V (PCB) design and operating environment. Careful attention to RFIN (VCC = 5 V) 20 dBm PCB thermal design is required. Continuous Power Dissipation, P 1 DISS θJC is the junction to case thermal resistance. TCASE = 85°C 0.76 W TCASE = 105°C 0.59 W
Table 3. Thermal Resistance
Junction (TJ) Temperature 175°C
Package Type θJC Unit
Operating (TOPR) Temperature Range −55°C to +105°C CP-6-101 118.0 °C/W Storage Temperature Range −65°C to +150°C 1 Thermal impedance simulated values are based on a JEDEC 2S2P thermal Electrostatic Discharge (ESD) Sensitivity, Class 1A test board with nine thermal vias. See JEDEC JESD51. Human Body Model (HBM)
POWER DERATING CURVES
1 For maximum power dissipation vs. case temperature, see Figure 2. Figure 2 shows the maximum power dissipation vs. case Stresses at or above those listed under Absolute Maximum temperature. Ratings may cause permanent damage to the product. This is a
1.000
stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational
0.875 W)
section of this specification is not implied. Operation beyond
( 0.750
the maximum operating conditions for extended periods may
TION PA
affect product reliability.
0.625 ISSI D 0.500 ER W 0.375 M PO MU 0.250 XI MA 0.125 0
020
–60 –40 –20 0 20 40 60 80 100 120 CASE TEMPERATURE (°C)
16213- Figure 2. Maximum Power Dissipation vs. Case Temperature
ESD CAUTION
Rev. B | Page 4 of 8 Document Outline Features Enhanced Product Features Applications Functional Block Diagram General Description Revision History Specifications Electrical Specifications Absolute Maximum Ratings Thermal Resistance Power Derating Curves ESD Caution Pin Configuration and Function Descriptions Interface Schematics Typical Performance Characteristics Outline Dimensions Ordering Guide
