HMC326MS8G / 326MS8GE
v11.1019

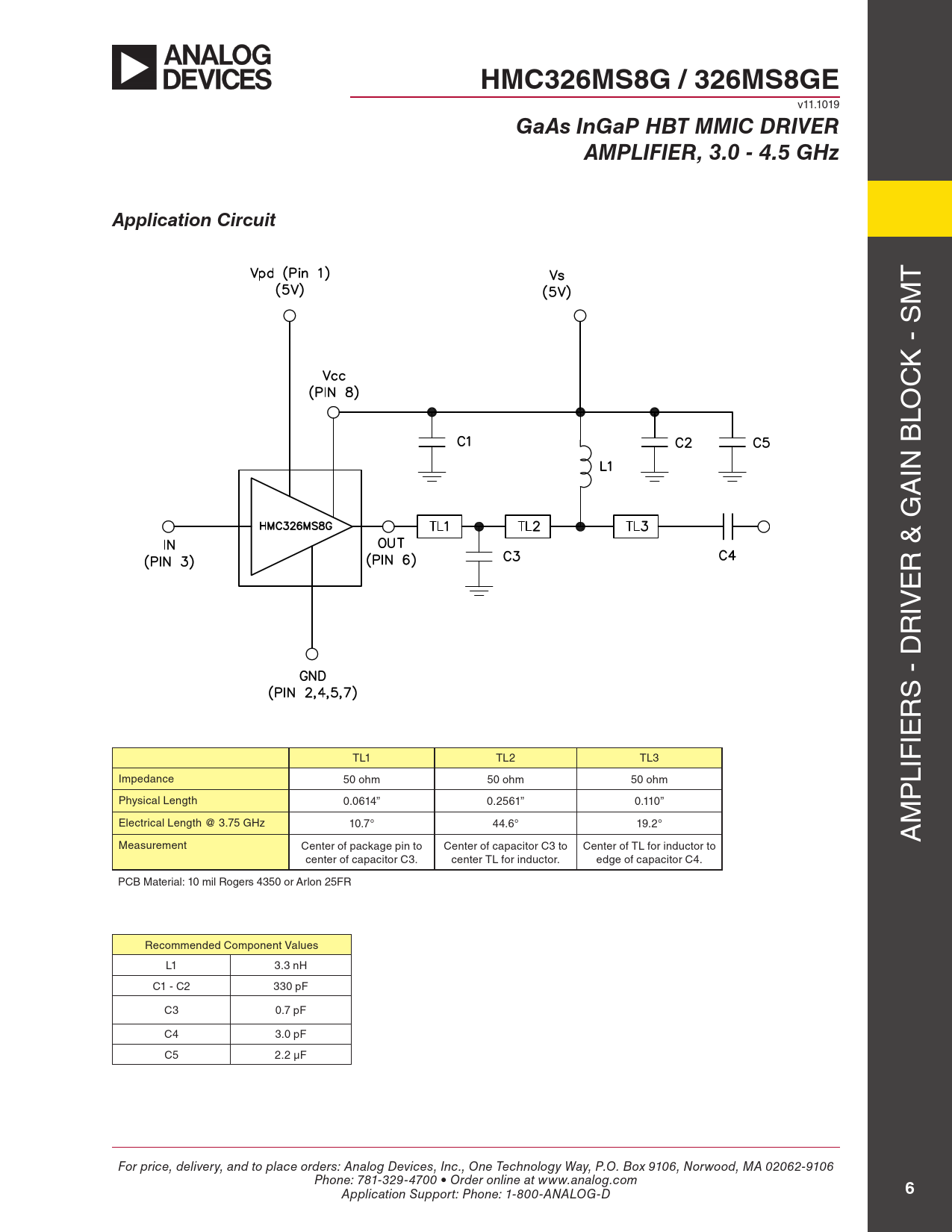

GaAs InGaP HBT MMIC DRIVER AMPLIFIER, 3.0 - 4.5 GHz Application Circuit
T M K - S C LO IN B A R & G E IV R S - D R IE TL1 TL2 TL3 Impedance 50 ohm 50 ohm 50 ohm LIF Physical Length 0.0614” 0.2561” 0.110” P Electrical Length @ 3.75 GHz 10.7° 44.6° 19.2° M A Measurement Center of package pin to Center of capacitor C3 to Center of TL for inductor to center of capacitor C3. center TL for inductor. edge of capacitor C4. PCB Material: 10 mil Rogers 4350 or Arlon 25FR Recommended Component Values L1 3.3 nH C1 - C2 330 pF C3 0.7 pF C4 3.0 pF C5 2.2 µF For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com Application Support: Phone: 1-800-ANALOG-D
6
