HMC406MS8G / 406MS8GE
v06.0611

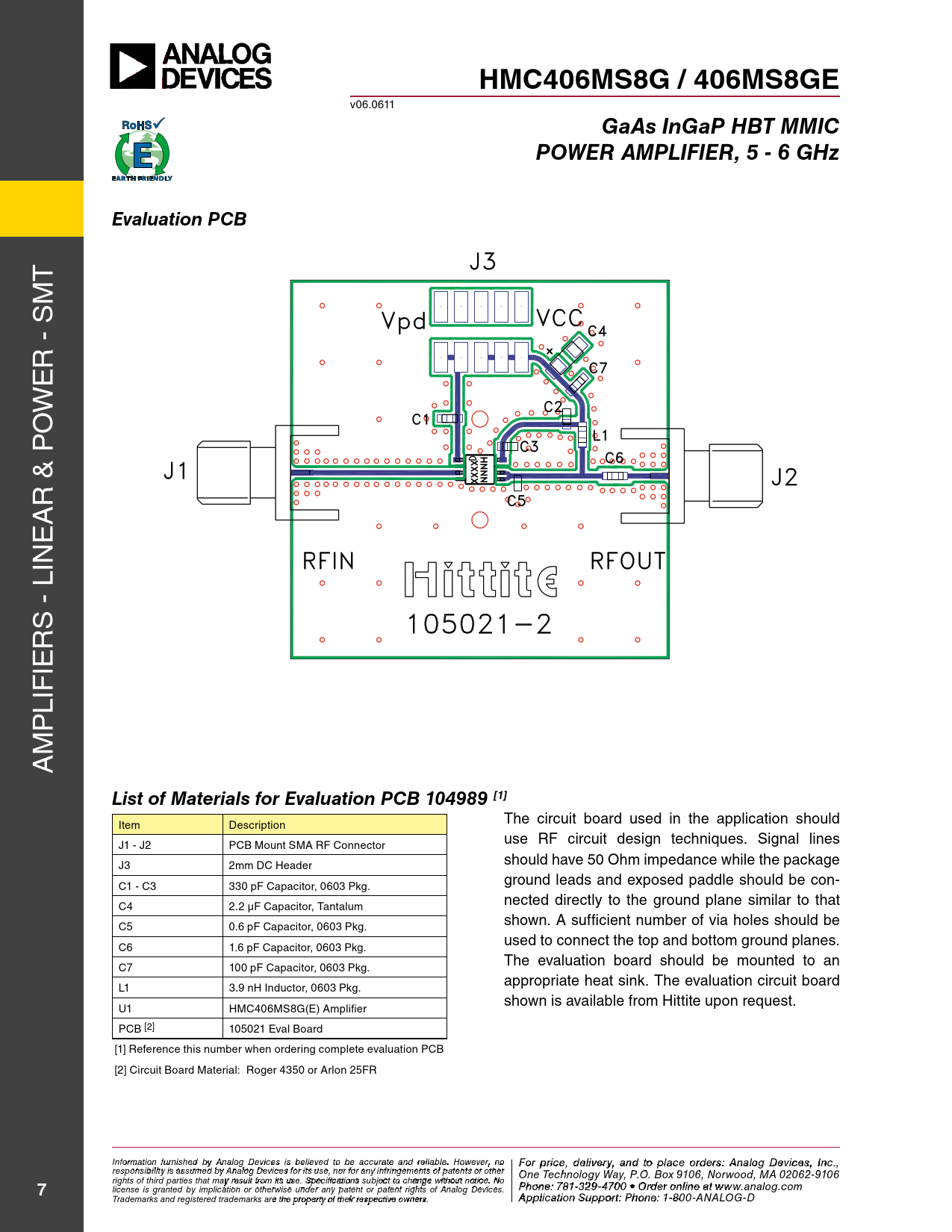

GaAs InGaP HBT MMIC POWER AMPLIFIER, 5 - 6 GHz Evaluation PCB
T m s r - e w o p r & A e lin s - r ie lif p m A
List of Materials for Evaluation PCB 104989 [1]
The circuit board used in the application should item Description use rf circuit design techniques. signal lines J1 - J2 pCB mount smA rf Connector should have 50 ohm impedance while the package J3 2mm DC Header ground leads and exposed paddle should be con- C1 - C3 330 pf Capacitor, 0603 pkg. nected directly to the ground plane similar to that C4 2.2 µf Capacitor, Tantalum shown. A sufficient number of via holes should be C5 0.6 pf Capacitor, 0603 pkg. used to connect the top and bottom ground planes. C6 1.6 pf Capacitor, 0603 pkg. The evaluation board should be mounted to an C7 100 pf Capacitor, 0603 pkg. appropriate heat sink. The evaluation circuit board l1 3.9 nH inductor, 0603 pkg. shown is available from Hittite upon request. U1 HmC406ms8G(e) Amplifier pCB [2] 105021 eval Board [1] reference this number when ordering complete evaluation pCB [2] Circuit Board material: roger 4350 or Arlon 25fr Inf F or o m r p atio r n ifc ur e n , d ishe e d lbiv y e A r n y a alog n D d t evic o p es is la beclie o eved rd to ebre sa: H ccur iattti e tae M nd re ilicarbloew . H a o ve C wever, o n rp o For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other oration, 2 Elizabeth Drive, Chelmsford, MA 01824 One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 978-250-3343 Fax: 978-250-3373 O rights of third parties that may result from its use. Specifications subject to change without notice. No P rd ho e ne r O : 7 n 81- -3li 2n 9 e a -47 t w 0 w 0 • O w rd .h e it r o tniltie n .c e ao t m
