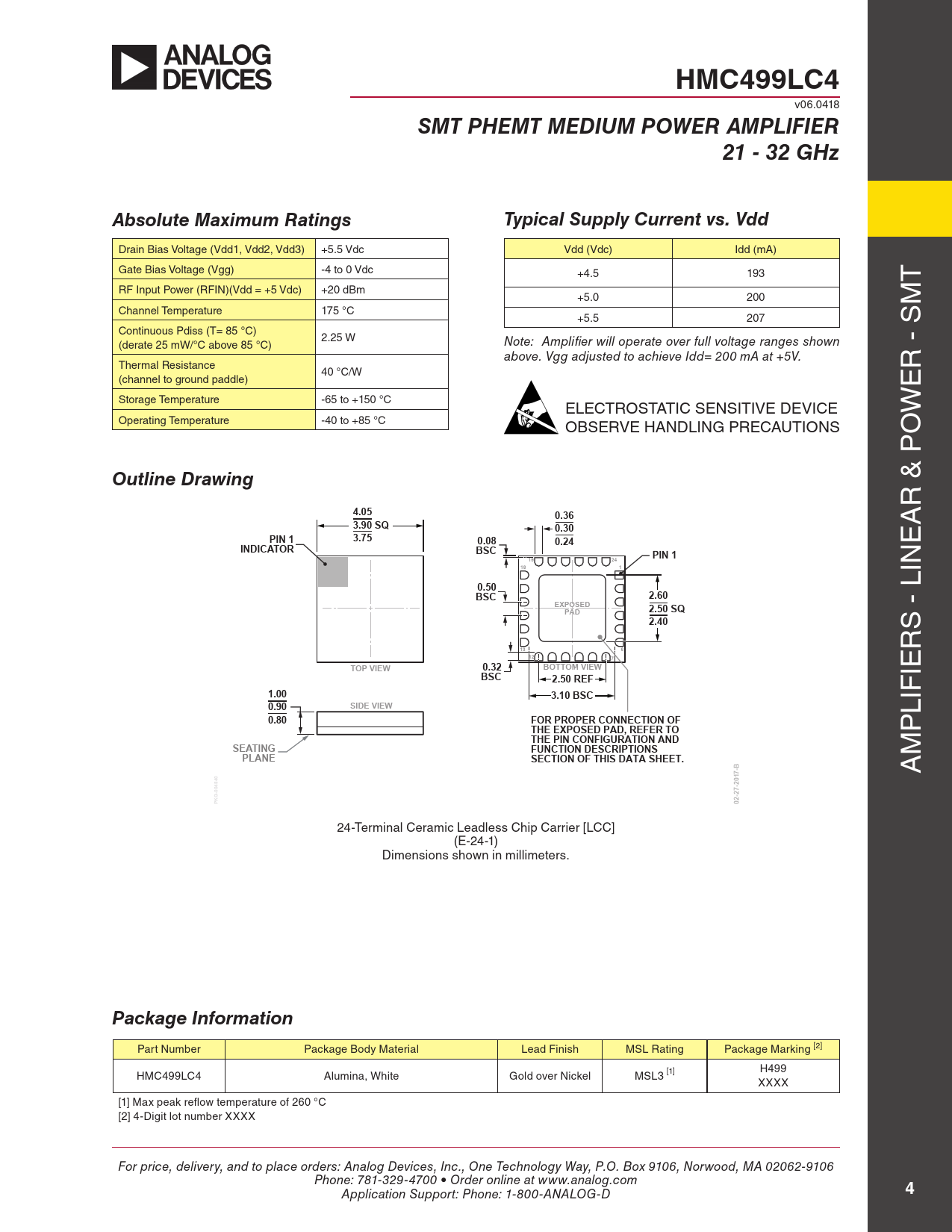

HMC499LC4
v06.0418
SMT PHEMT MEDIUM POWER AMPLIFIER 21 - 32 GHz Absolute Maximum Ratings Typical Supply Current vs. Vdd
Drain Bias Voltage (Vdd1, Vdd2, Vdd3) +5.5 Vdc Vdd (Vdc) idd (mA) Gate Bias Voltage (Vgg) -4 to 0 Vdc +4.5 193 T rf input power (rfin)(Vdd = +5 Vdc) +20 dBm +5.0 200 m Channel Temperature 175 °C +5.5 207 s Continuous pdiss (T= 85 °C) 2.25 w (derate 25 mw/°C above 85 °C) Note: Amplifier will operate over full voltage ranges shown above. Vgg adjusted to achieve Idd= 200 mA at +5V. Thermal resistance r - 40 °C/w (channel to ground paddle) e storage Temperature -65 to +150 °C eleCTrosTATiC sensiTiVe DeViCe w operating Temperature -40 to +85 °C
24-T
oBse
erminal Ceramic Leadless Chip Carrier [LCC]
rVe HAnDlinG preCAUTions o
(E-24-1) Dimensions shown in millimeters.
p
Outline Drawing
r &
4.05 0.36 3.90 SQ
A
0.30 PIN 1 3.75 0.08 0.24
e
INDICATOR BSC PIN 1 19 24 18 1 0.50
lin
BSC 2.60 EXPOSED PAD 2.50 SQ 2.40
s -
13 6
r
12 7 TOP VIEW 0.32 BOTTOM VIEW BSC
ie
2.50 REF 1.00 3.10 BSC 0.90 SIDE VIEW
lif
0.80 FOR PROPER CONNECTION OF THE EXPOSED PAD, REFER TO
p
THE PIN CONFIGURATION AND SEATING FUNCTION DESCRIPTIONS
m
PLANE SECTION OF THIS DATA SHEET.
A
PKG-004840 02-27-2017-B
24-Terminal Ceramic leadless Chip Carrier [lCC] (e-24-1) Dimensions shown in millimeters.
Package Information
part number package Body material lead finish msl rating package marking [2] HmC499lC4 Alumina, white Gold over nickel msl3 [1] H499 XXXX [1] max peak reflow temperature of 260 °C [2] 4-Digit lot number XXXX For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com Application Support: Phone: 1-800-ANALOG-D
