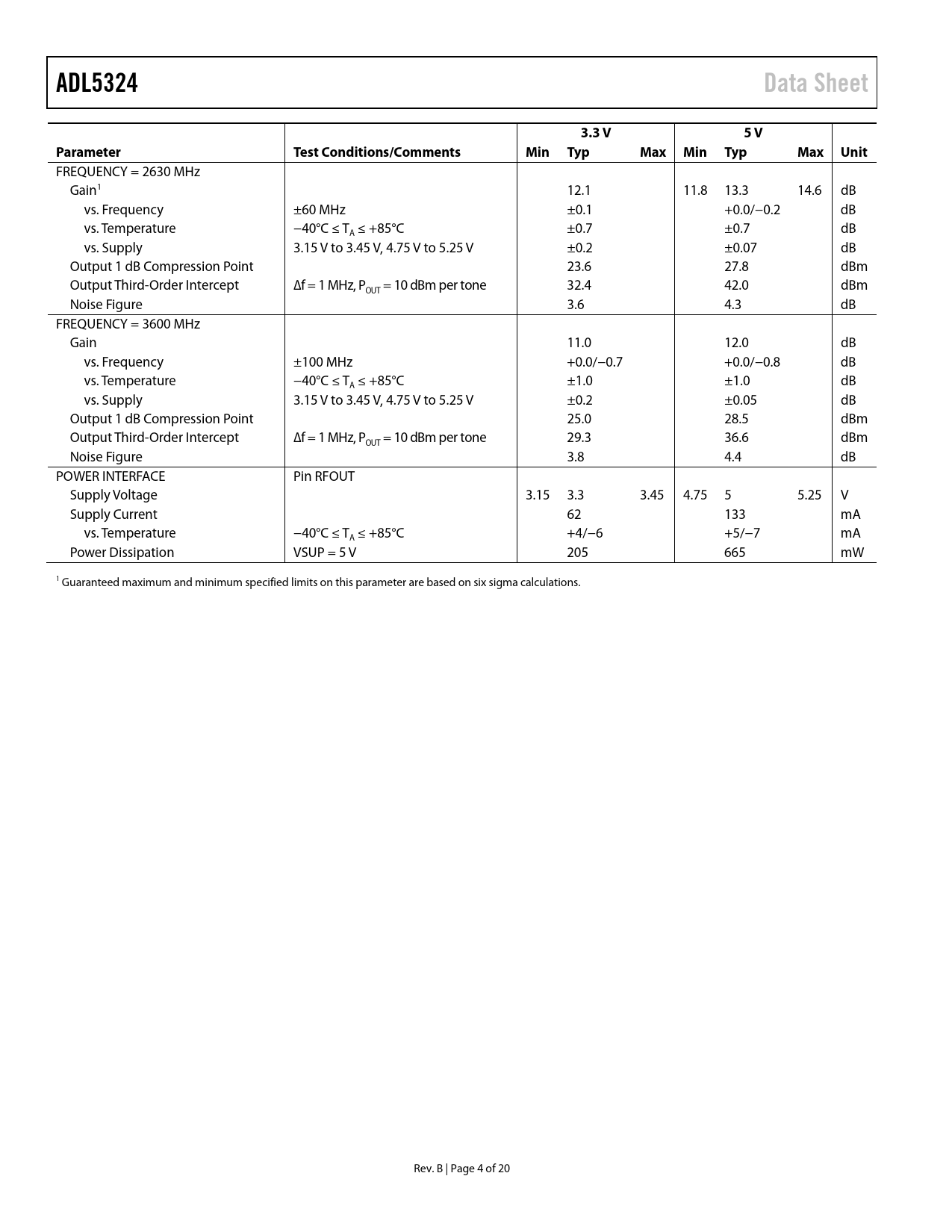

ADL5324 Data Sheet 3.3 V 5 V Parameter Test Conditions/Comments Min Typ Max Min Typ Max Unit
FREQUENCY = 2630 MHz Gain1 12.1 11.8 13.3 14.6 dB vs. Frequency ±60 MHz ±0.1 +0.0/−0.2 dB vs. Temperature −40°C ≤ T ≤ +85°C ±0.7 ±0.7 dB A vs. Supply 3.15 V to 3.45 V, 4.75 V to 5.25 V ±0.2 ±0.07 dB Output 1 dB Compression Point 23.6 27.8 dBm Output Third-Order Intercept ∆f = 1 MHz, P = 10 dBm per tone 32.4 42.0 dBm OUT Noise Figure 3.6 4.3 dB FREQUENCY = 3600 MHz Gain 11.0 12.0 dB vs. Frequency ±100 MHz +0.0/−0.7 +0.0/−0.8 dB vs. Temperature −40°C ≤ T ≤ +85°C ±1.0 ±1.0 dB A vs. Supply 3.15 V to 3.45 V, 4.75 V to 5.25 V ±0.2 ±0.05 dB Output 1 dB Compression Point 25.0 28.5 dBm Output Third-Order Intercept ∆f = 1 MHz, P = 10 dBm per tone 29.3 36.6 dBm OUT Noise Figure 3.8 4.4 dB POWER INTERFACE Pin RFOUT Supply Voltage 3.15 3.3 3.45 4.75 5 5.25 V Supply Current 62 133 mA vs. Temperature −40°C ≤ T ≤ +85°C +4/−6 +5/−7 mA A Power Dissipation VSUP = 5 V 205 665 mW 1 Guaranteed maximum and minimum specified limits on this parameter are based on six sigma calculations. Rev. B | Page 4 of 20 Document Outline Features Applications General Description Functional Block Diagram Table of Contents Revision History Specifications Typical Scattering Parameters Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics High Temperature Operation Applications Information Basic Layout Connections Soldering Information and Recommended PCB Land Pattern Matching Procedure W-CDMA ACPR Performance Evaluation Board Outline Dimensions Ordering Guide
