Datasheet HMC1131 (Analog Devices) - 4
| Hersteller | Analog Devices |
| Beschreibung | GaAs, pHEMT, MMIC, Medium Power Amplifier, 24 GHz to 35 GHz |
| Seiten / Seite | 15 / 4 — HMC1131. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 3. Parameter. Rating. … |
| Revision | C |
| Dateiformat / Größe | PDF / 491 Kb |
| Dokumentensprache | Englisch |

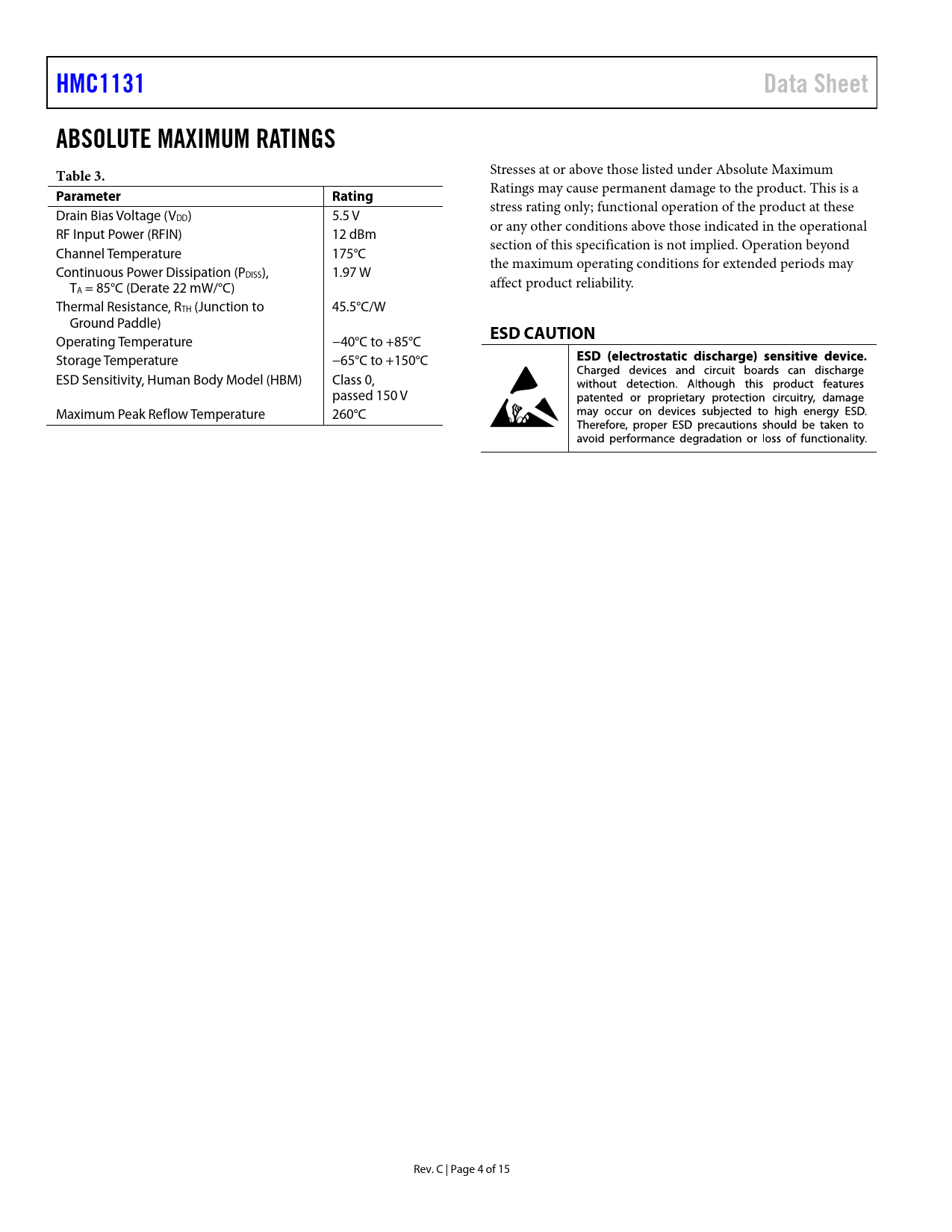

HMC1131. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 3. Parameter. Rating. ESD CAUTION
Modelllinie für dieses Datenblatt
Textversion des Dokuments
HMC1131 Data Sheet ABSOLUTE MAXIMUM RATINGS Table 3.
Stresses at or above those listed under Absolute Maximum
Parameter Rating
Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these Drain Bias Voltage (VDD) 5.5 V or any other conditions above those indicated in the operational RF Input Power (RFIN) 12 dBm section of this specification is not implied. Operation beyond Channel Temperature 175°C the maximum operating conditions for extended periods may Continuous Power Dissipation (PDISS), 1.97 W T affect product reliability. A = 85°C (Derate 22 mW/°C) Thermal Resistance, RTH (Junction to 45.5°C/W Ground Paddle)
ESD CAUTION
Operating Temperature −40°C to +85°C Storage Temperature −65°C to +150°C ESD Sensitivity, Human Body Model (HBM) Class 0, passed 150 V Maximum Peak Reflow Temperature 260°C Rev. C | Page 4 of 15 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION REVISION HISTORY ELECTRICAL SPECIFICATIONS 24 GHz TO 27 GHz FREQUENCY RANGE 27 GHz TO 35 GHz FREQUENCY RANGE ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS INTERFACE SCHEMATICS TYPICAL PERFORMANCE CHARACTERISTICS APPLICATIONS INFORMATION EVALUATION PCB Bill of Materials TYPICAL APPLICATION CIRCUIT OUTLINE DIMENSIONS ORDERING GUIDE
