Datasheet NC7SZ04 (ON Semiconductor) - 5

link to page 5 link to page 5 link to page 5 link to page 5
NC7SZ04 AC ELECTRICAL CHARACTERISTICS TA = +25
°
C TA = −40 to +85
°
C Symbol Parameter VCC (V) Conditions Min Typ Max Min Max Unit
tPLH, tPHL Propagation Delay 1.65 CL = 15 pF, − 5.3 11.4 − 12.0 ns (Figure 4, 5) RL = 1 MW 1.80 − 4.4 9.5 − 10.0 2.50 ±0.20 − 2.9 6.5 − 7.0 3.30 ±0.30 − 2.1 4.5 − 4.7 5.00 ±0.50 − 1.8 3.9 − 4.1 3.30 ±0.30 CL = 50 pF, − 2.9 5.0 − 5.2 RL = 500 W 5.00 ±0.50 − 2.4 4.3 − 4.5 CIN Input Capacitance 0.00 − 4 − − − pF CPD Power Dissipation Capacitance 3.30 − 20 − − − pF (Note 2) (Figure 6) 5.00 − 26 − − − 2. CPD is defined as the value of the internal equivalent capacitance which is derived from dynamic operating current consumption (ICCD) at no output loading and operating at 50% duty cycle. CPD is related to ICCD dynamic operating current by the expression: ICCD = (CPD) (VCC) (fIN) + (ICCstatic). tr = 3 ns tf = 3 ns V 90% 90% CC INPUT 50% 50% V 10% 10% CC GND tW t INPUT OUTPUT PHL tPLH VOH CL RL OUTPUT 50% 50% VOL

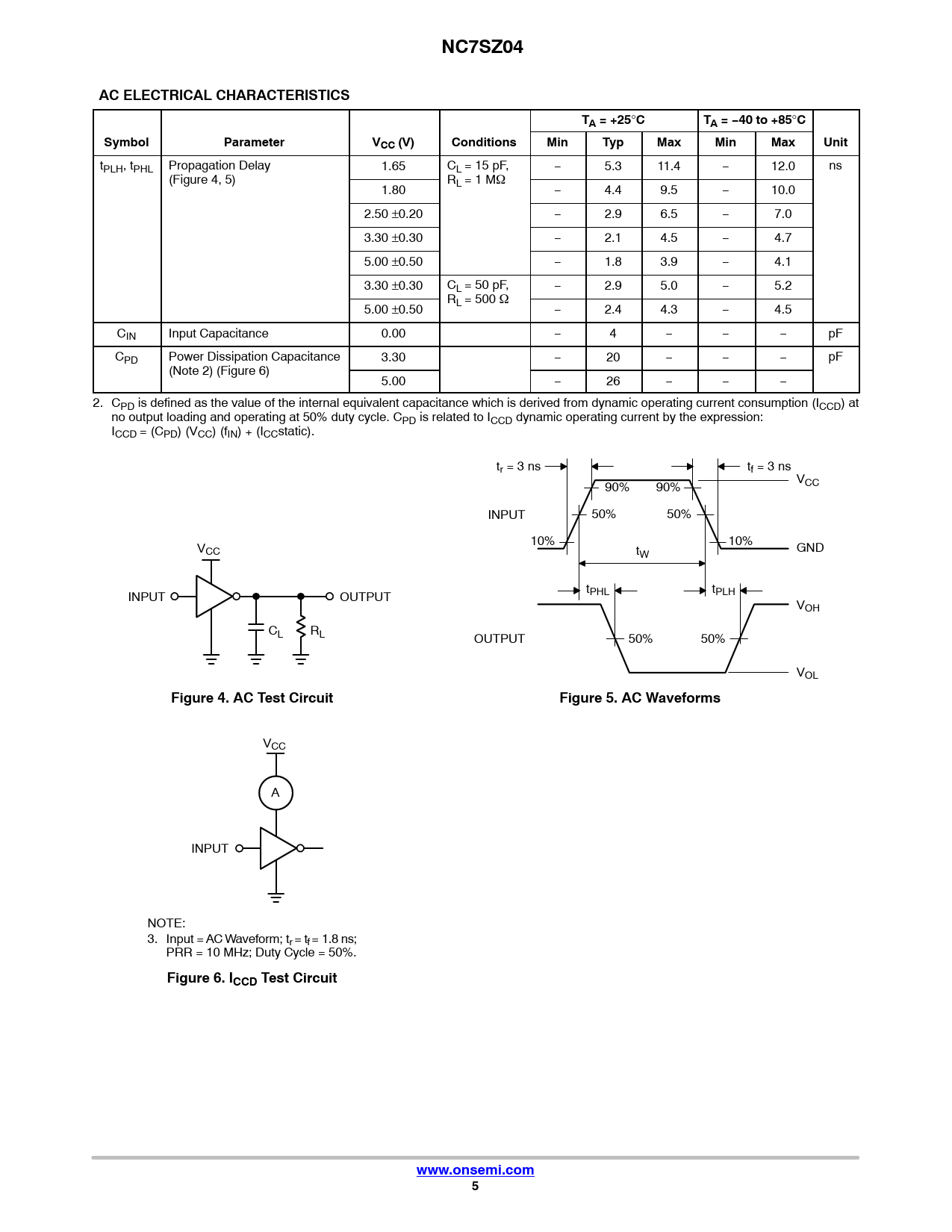

Figure 4. AC Test Circuit Figure 5. AC Waveforms
VCC A INPUT NOTE: 3. Input = AC Waveform; tr = tf = 1.8 ns; PRR = 10 MHz; Duty Cycle = 50%.
Figure 6. ICCD Test Circuit www.onsemi.com 5
