Datasheet RZM001P02 (Rohm) - 6
| Hersteller | Rohm |
| Beschreibung | Pch -20V -100mA Small Signal MOSFET |
| Seiten / Seite | 12 / 6 — RZM001P02. Electrical characteristic curves. 20160629 - Rev.001 |
| Dateiformat / Größe | PDF / 1.4 Mb |
| Dokumentensprache | Englisch |
RZM001P02. Electrical characteristic curves. 20160629 - Rev.001
Modelllinie für dieses Datenblatt
Textversion des Dokuments
RZM001P02
Datasheet l
Electrical characteristic curves

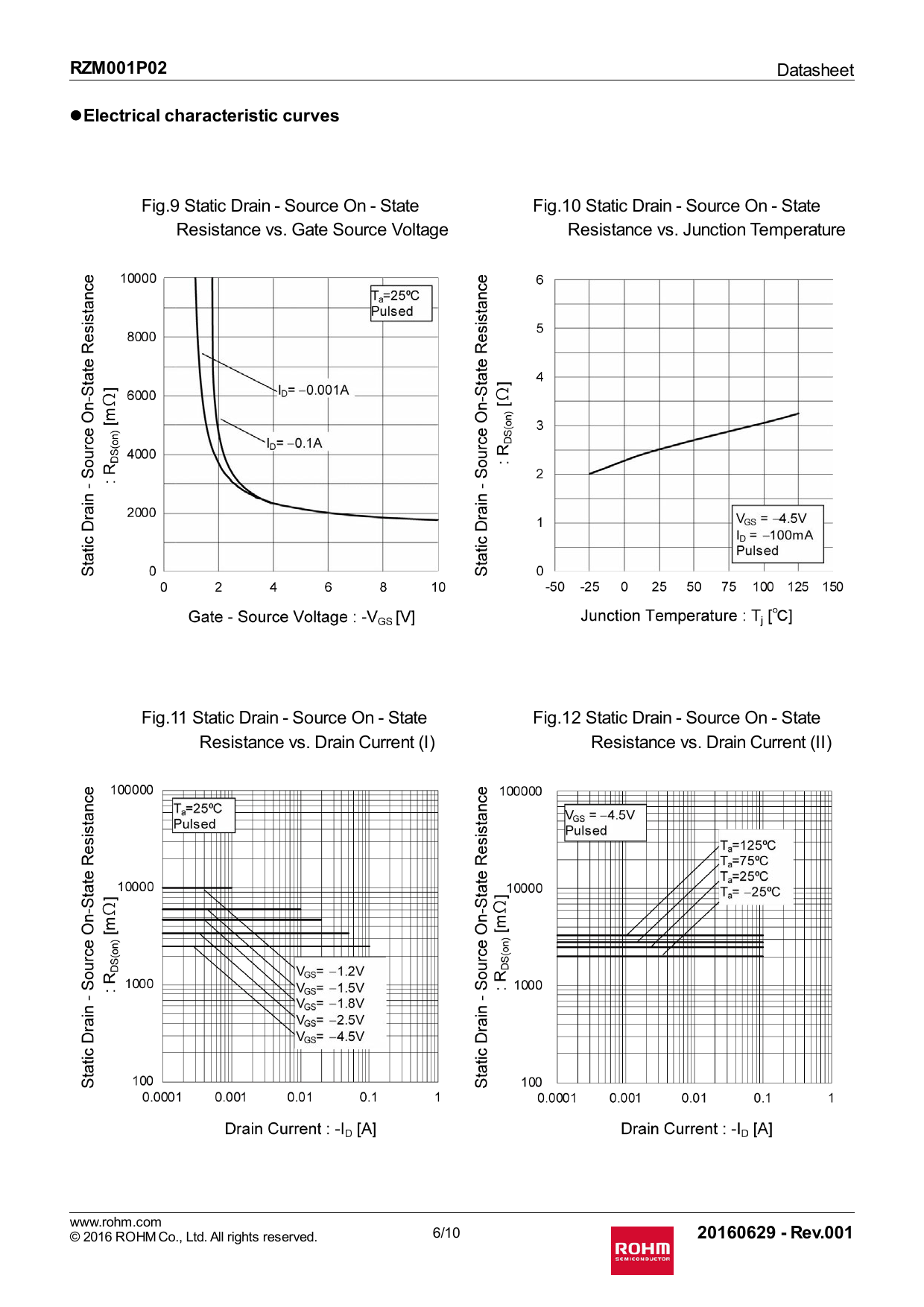

Fig.9 Static Drain - Source On - State Fig.10 Static Drain - Source On - State Resistance vs. Gate Source Voltage Resistance vs. Junction Temperature Fig.11 Static Drain - Source On - State Fig.12 Static Drain - Source On - State Resistance vs. Drain Current (I) Resistance vs. Drain Current (II) www.rohm.com © 2016 ROHM Co., Ltd. All rights reserved. 6/10
20160629 - Rev.001
Datasheet l
Electrical characteristic curves
Fig.9 Static Drain - Source On - State Fig.10 Static Drain - Source On - State Resistance vs. Gate Source Voltage Resistance vs. Junction Temperature Fig.11 Static Drain - Source On - State Fig.12 Static Drain - Source On - State Resistance vs. Drain Current (I) Resistance vs. Drain Current (II) www.rohm.com © 2016 ROHM Co., Ltd. All rights reserved. 6/10
20160629 - Rev.001
