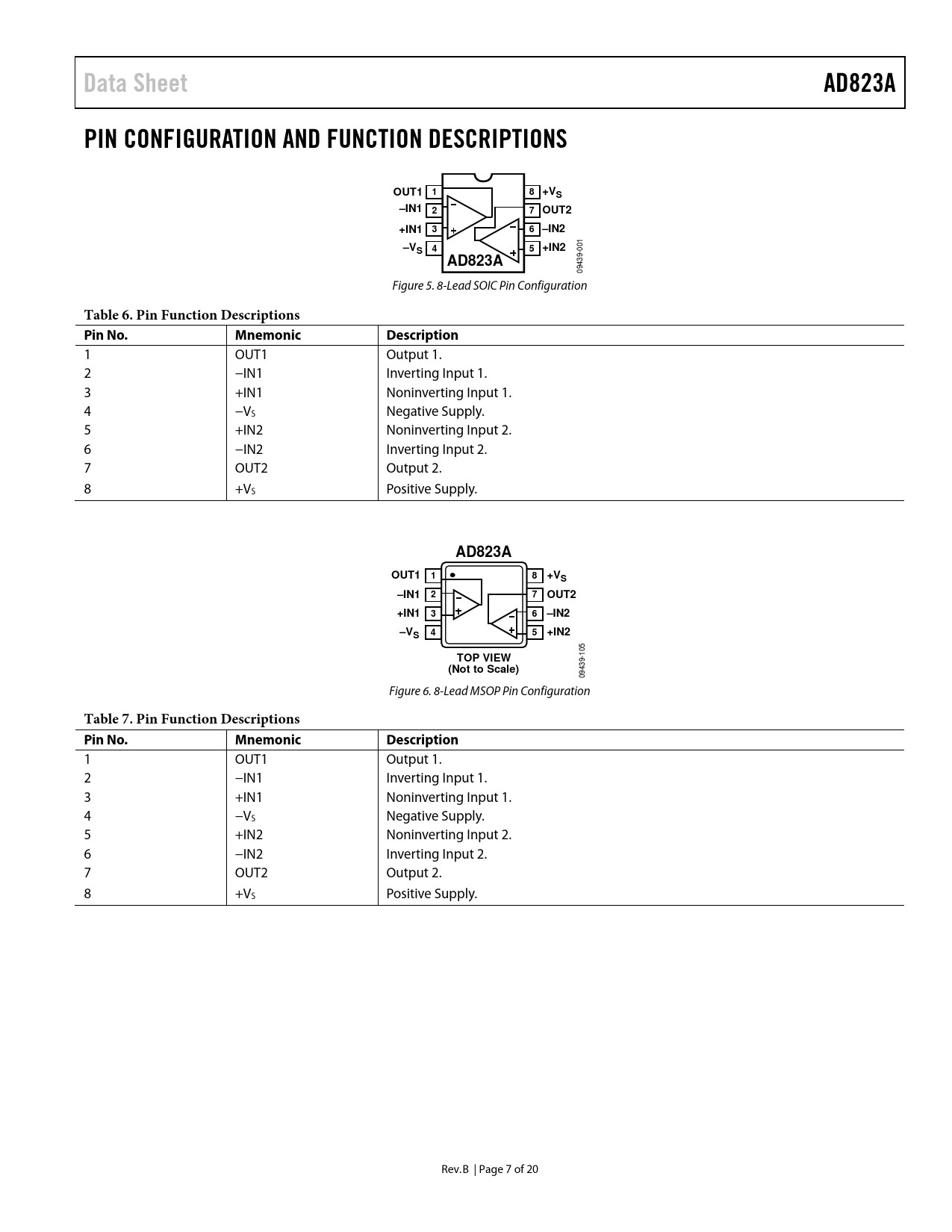

Data Sheet. AD823A. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. OUT1 1. 8 +VS. –IN1 2. 7 OUT2. +IN1 3. 6 –IN2. 5 +IN2
Modelllinie für dieses Datenblatt
Textversion des Dokuments
Data Sheet AD823A PIN CONFIGURATION AND FUNCTION DESCRIPTIONS OUT1 1 8 +VS –IN1 2 7 OUT2 +IN1 3 6 –IN2 –V 4 5 +IN2 S
001
AD823A
09439- Figure 5. 8-Lead SOIC Pin Configuration
Table 6. Pin Function Descriptions Pin No. Mnemonic Description
1 OUT1 Output 1. 2 −IN1 Inverting Input 1. 3 +IN1 Noninverting Input 1. 4 −VS Negative Supply. 5 +IN2 Noninverting Input 2. 6 −IN2 Inverting Input 2. 7 OUT2 Output 2. 8 +VS Positive Supply.
AD823A OUT1 1 8 +VS –IN1 2 7 OUT2 +IN1 3 6 –IN2 –VS 4 5 +IN2
105
TOP VIEW (Not to Scale)
09439- Figure 6. 8-Lead MSOP Pin Configuration
Table 7. Pin Function Descriptions Pin No. Mnemonic Description
1 OUT1 Output 1. 2 −IN1 Inverting Input 1. 3 +IN1 Noninverting Input 1. 4 −VS Negative Supply. 5 +IN2 Noninverting Input 2. 6 −IN2 Inverting Input 2. 7 OUT2 Output 2. 8 +VS Positive Supply. Rev. B | Page 7 of 20 Document Outline Features Applications General Description Connection Diagram Revision History Specifications 5 V Operation 3.3 V Operation ±15 V Operation Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Theory of Operation Output Impedance Applications Information Input Characteristics Output Characteristics Wideband Photodiode Preamp Active Filter Maximizing Performance Through Proper Layout Outline Dimensions Ordering Guide
