Datasheet BUK7V4R2-40H (Nexperia) - 5
| Hersteller | Nexperia |
| Beschreibung | Dual N-channel 40 V, 4.2 mOhm standard level MOSFET in LFPAK56D (half-bridge configuration) |
| Seiten / Seite | 13 / 5 — Nexperia. BUK7V4R2-40H. Dual N-channel 40 V, 4.2 mOhm standard level … |
| Revision | 11022021 |
| Dateiformat / Größe | PDF / 313 Kb |
| Dokumentensprache | Englisch |
Nexperia. BUK7V4R2-40H. Dual N-channel 40 V, 4.2 mOhm standard level MOSFET in LFPAK56D (half-bridge configuration)
Modelllinie für dieses Datenblatt
Textversion des Dokuments
link to page 7 link to page 7 link to page 7 link to page 7 link to page 7 link to page 8 link to page 8 link to page 8 link to page 8 link to page 8
Nexperia BUK7V4R2-40H Dual N-channel 40 V, 4.2 mOhm standard level MOSFET in LFPAK56D (half-bridge configuration)
aaa-032383 10 Zt Z ht(j(-m - b) b (K/ K W) W 1 δ δ= =0 .5. 0. 0 2 0. 0 1 tp 10-1 0. 0 05 0 P δ = T 0. 0 02 0 sing n l g e e sh s ot o t tp T 10-210-6 10-5 10-4 10-3 10-2 10-1 1 tp (s)

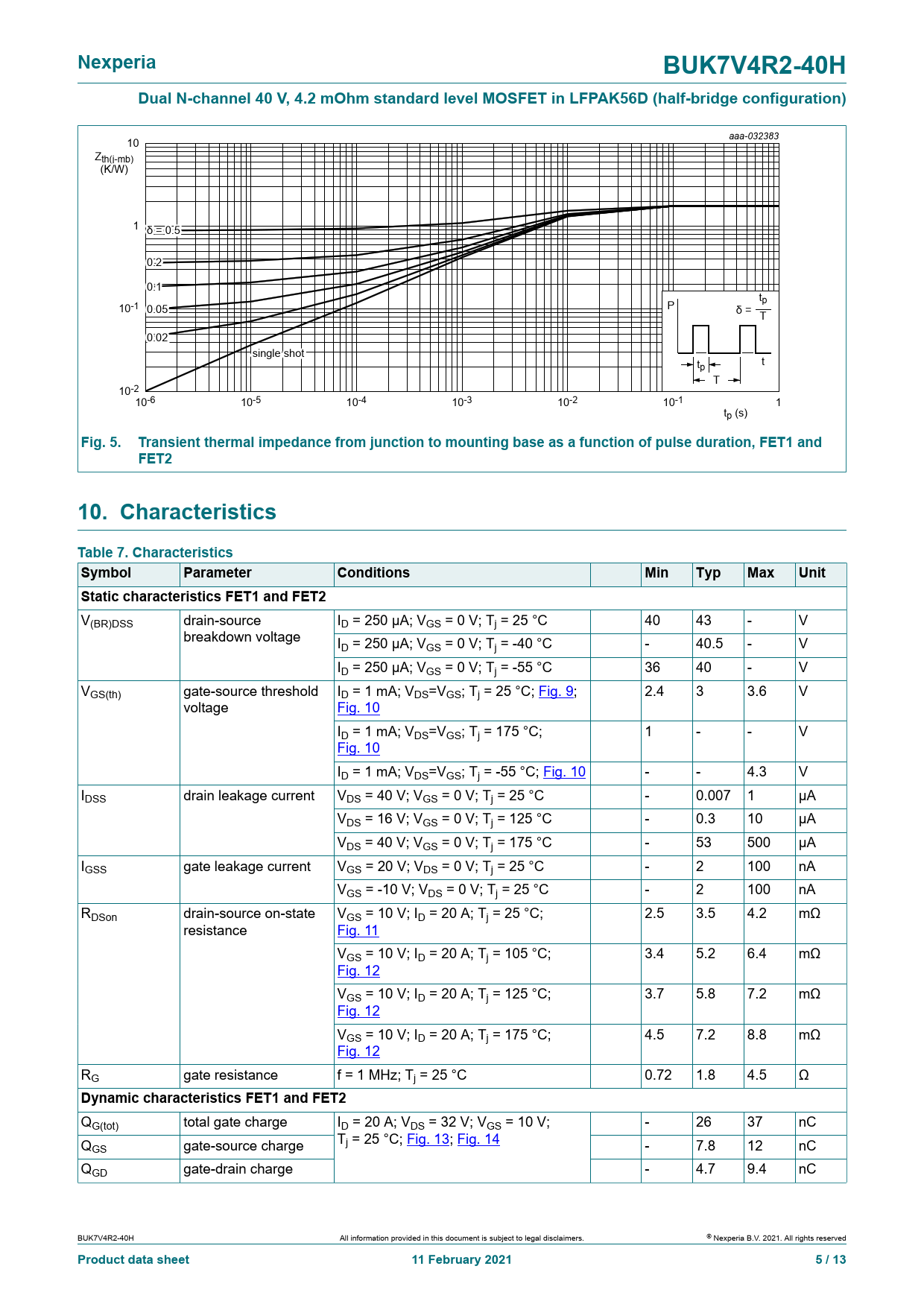

Fig. 5. Transient thermal impedance from junction to mounting base as a function of pulse duration, FET1 and FET2 10. Characteristics Table 7. Characteristics Symbol Parameter Conditions Min Typ Max Unit Static characteristics FET1 and FET2
V(BR)DSS drain-source ID = 250 µA; VGS = 0 V; Tj = 25 °C 40 43 - V breakdown voltage ID = 250 µA; VGS = 0 V; Tj = -40 °C - 40.5 - V ID = 250 µA; VGS = 0 V; Tj = -55 °C 36 40 - V VGS(th) gate-source threshold ID = 1 mA; VDS=VGS; Tj = 25 °C; Fig. 9; 2.4 3 3.6 V voltage Fig. 10 ID = 1 mA; VDS=VGS; Tj = 175 °C; 1 - - V Fig. 10 ID = 1 mA; VDS=VGS; Tj = -55 °C; Fig. 10 - - 4.3 V IDSS drain leakage current VDS = 40 V; VGS = 0 V; Tj = 25 °C - 0.007 1 µA VDS = 16 V; VGS = 0 V; Tj = 125 °C - 0.3 10 µA VDS = 40 V; VGS = 0 V; Tj = 175 °C - 53 500 µA IGSS gate leakage current VGS = 20 V; VDS = 0 V; Tj = 25 °C - 2 100 nA VGS = -10 V; VDS = 0 V; Tj = 25 °C - 2 100 nA RDSon drain-source on-state VGS = 10 V; ID = 20 A; Tj = 25 °C; 2.5 3.5 4.2 mΩ resistance Fig. 11 VGS = 10 V; ID = 20 A; Tj = 105 °C; 3.4 5.2 6.4 mΩ Fig. 12 VGS = 10 V; ID = 20 A; Tj = 125 °C; 3.7 5.8 7.2 mΩ Fig. 12 VGS = 10 V; ID = 20 A; Tj = 175 °C; 4.5 7.2 8.8 mΩ Fig. 12 RG gate resistance f = 1 MHz; Tj = 25 °C 0.72 1.8 4.5 Ω
Dynamic characteristics FET1 and FET2
QG(tot) total gate charge ID = 20 A; VDS = 32 V; VGS = 10 V; - 26 37 nC Q T GS gate-source charge j = 25 °C; Fig. 13; Fig. 14 - 7.8 12 nC QGD gate-drain charge - 4.7 9.4 nC BUK7V4R2-40H All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2021. Al rights reserved
Product data sheet 11 February 2021 5 / 13
