Datasheet ADA4500-2 (Analog Devices) - 4
| Hersteller | Analog Devices |
| Beschreibung | 10 MHz, 14.5 nV/√Hz, Rail-to-Rail I/O, Zero Input Crossover Distortion Amplifier |
| Seiten / Seite | 24 / 4 — ADA4500-2. Data Sheet. Parameter Symbol. Test. Conditions/Conditions. … |
| Revision | B |
| Dateiformat / Größe | PDF / 1.3 Mb |
| Dokumentensprache | Englisch |

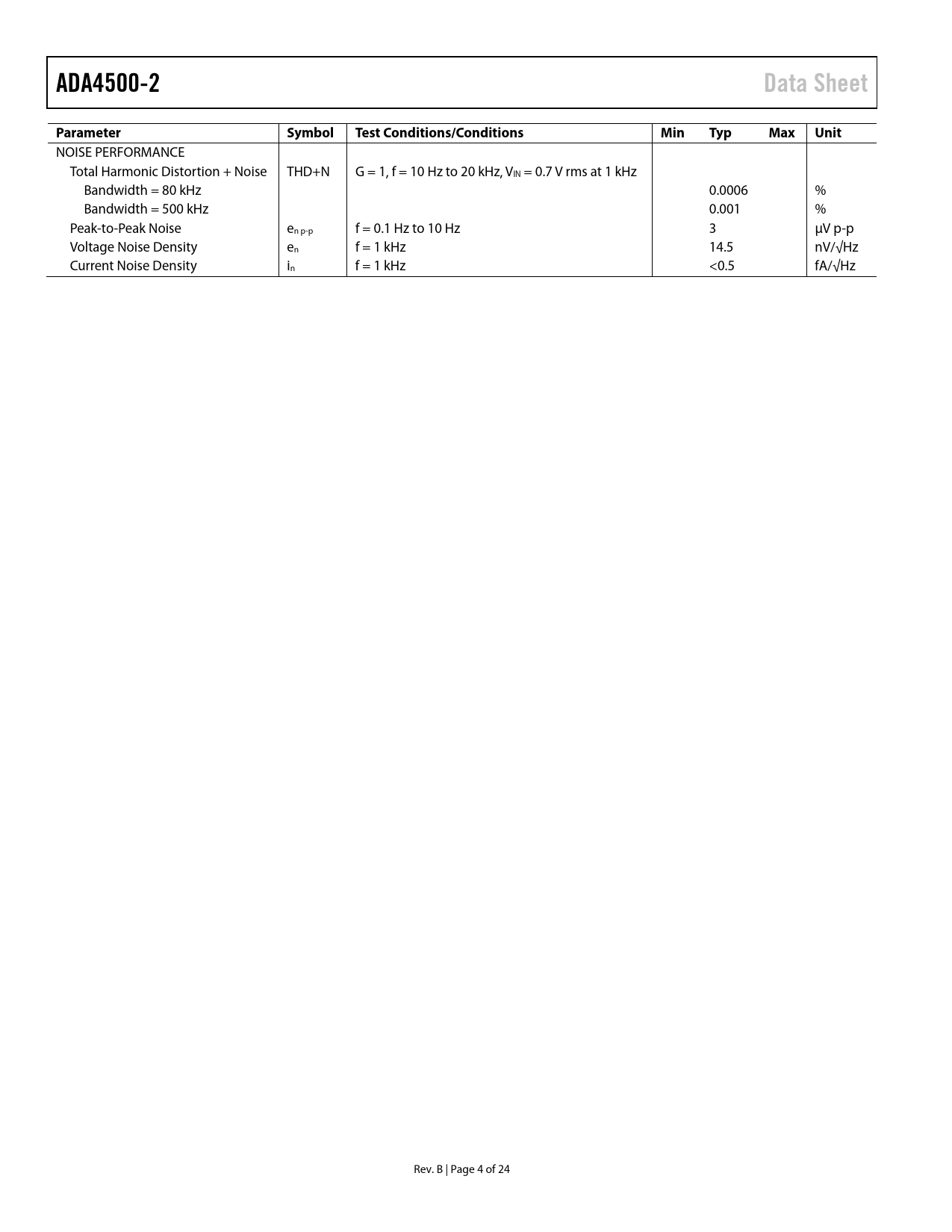

ADA4500-2. Data Sheet. Parameter Symbol. Test. Conditions/Conditions. Min. Typ. Max. Unit
Modelllinie für dieses Datenblatt
Textversion des Dokuments
ADA4500-2 Data Sheet Parameter Symbol Test Conditions/Conditions Min Typ Max Unit
NOISE PERFORMANCE Total Harmonic Distortion + Noise THD+N G = 1, f = 10 Hz to 20 kHz, VIN = 0.7 V rms at 1 kHz Bandwidth = 80 kHz 0.0006 % Bandwidth = 500 kHz 0.001 % Peak-to-Peak Noise en p-p f = 0.1 Hz to 10 Hz 3 μV p-p Voltage Noise Density en f = 1 kHz 14.5 nV/√Hz Current Noise Density in f = 1 kHz <0.5 fA/√Hz Rev. B | Page 4 of 24 Document Outline FEATURES APPLICATIONS PIN CONFIGURATION GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS VSY = 2.7 V ELECTRICAL CHARACTERISTICS VSY = 5.0 V ELECTRICAL CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION RAIL-TO-RAIL OUTPUT RAIL-TO-RAIL INPUT (RRI) ZERO CROSS-OVER DISTORTION OVERLOAD RECOVERY POWER-ON CURRENT PROFILE APPLICATIONS INFORMATION RESISTANCE AND CAPACITANCE SENSOR CIRCUIT ADAPTIVE SINGLE-ENDED-TO-DIFFERENTIAL SIGNAL CONVERTER The Challenge The Solution OUTLINE DIMENSIONS ORDERING GUIDE
