Datasheet RH3845MK (Analog Devices) - 5

RH3845MW

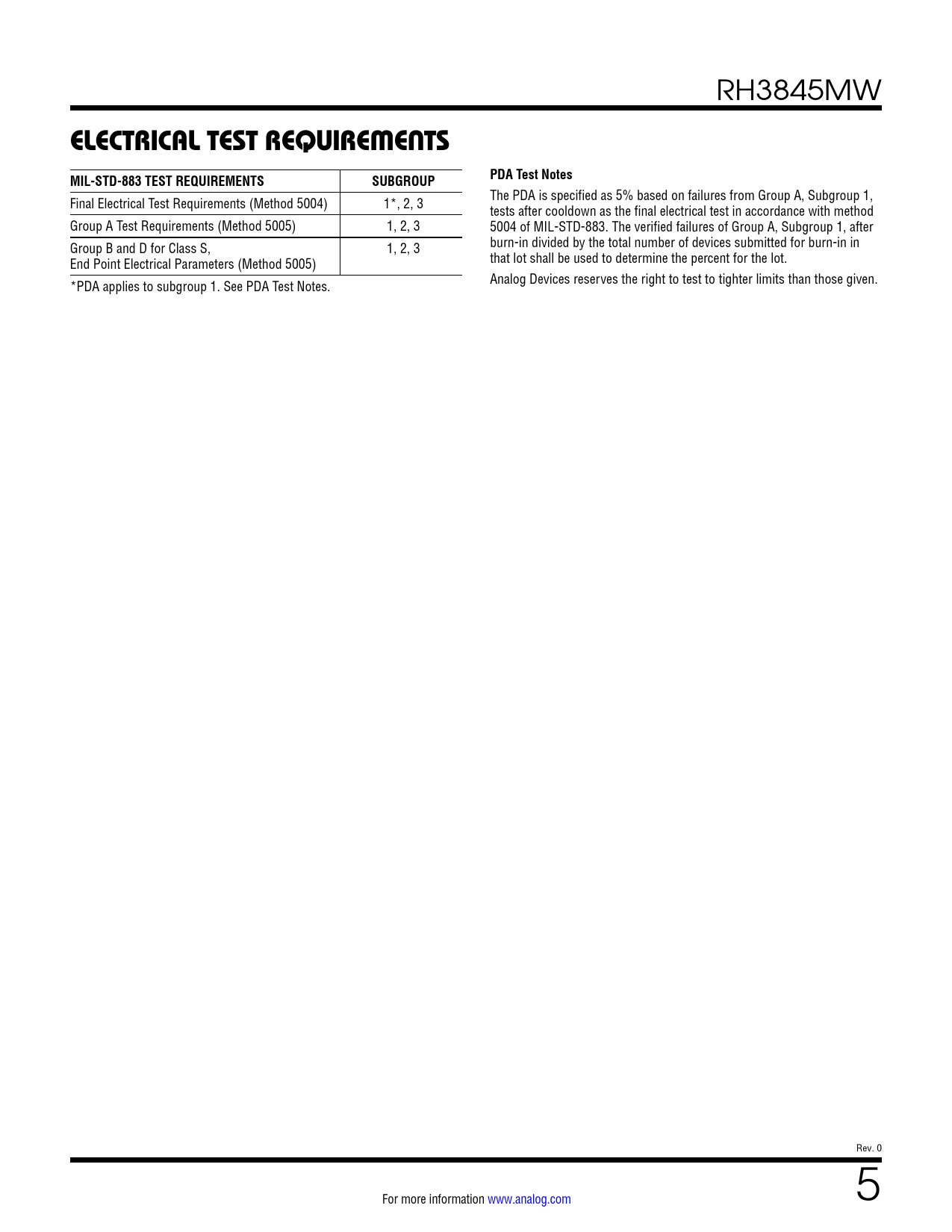

ELECTRICAL TEST REQUIREMENTS MIL-STD-883 TEST REQUIREMENTS SUBGROUP PDA Test Notes
Final Electrical Test Requirements (Method 5004) 1*, 2, 3 The PDA is specified as 5% based on failures from Group A, Subgroup 1, tests after cooldown as the final electrical test in accordance with method Group A Test Requirements (Method 5005) 1, 2, 3 5004 of MIL-STD-883. The verified failures of Group A, Subgroup 1, after Group B and D for Class S, 1, 2, 3 burn-in divided by the total number of devices submitted for burn-in in End Point Electrical Parameters (Method 5005) that lot shall be used to determine the percent for the lot. *PDA applies to subgroup 1. See PDA Test Notes. Analog Devices reserves the right to test to tighter limits than those given. Rev. 0 For more information www.analog.com 5 Document Outline Description Typical Application Absolute Maximum Ratings Package Information Table 1: Electrical characteristics Table 2: Electrical characteristics Electrical Characteristics: Burn-In Delta Parameters Electrical Test Requirements Total Dose Bias Circuit — Run Mode Total Dose Bias Circuit — Shutdown Mode Burn-In Circuit—Run Mode Package Description Typical Performance Characteristics
