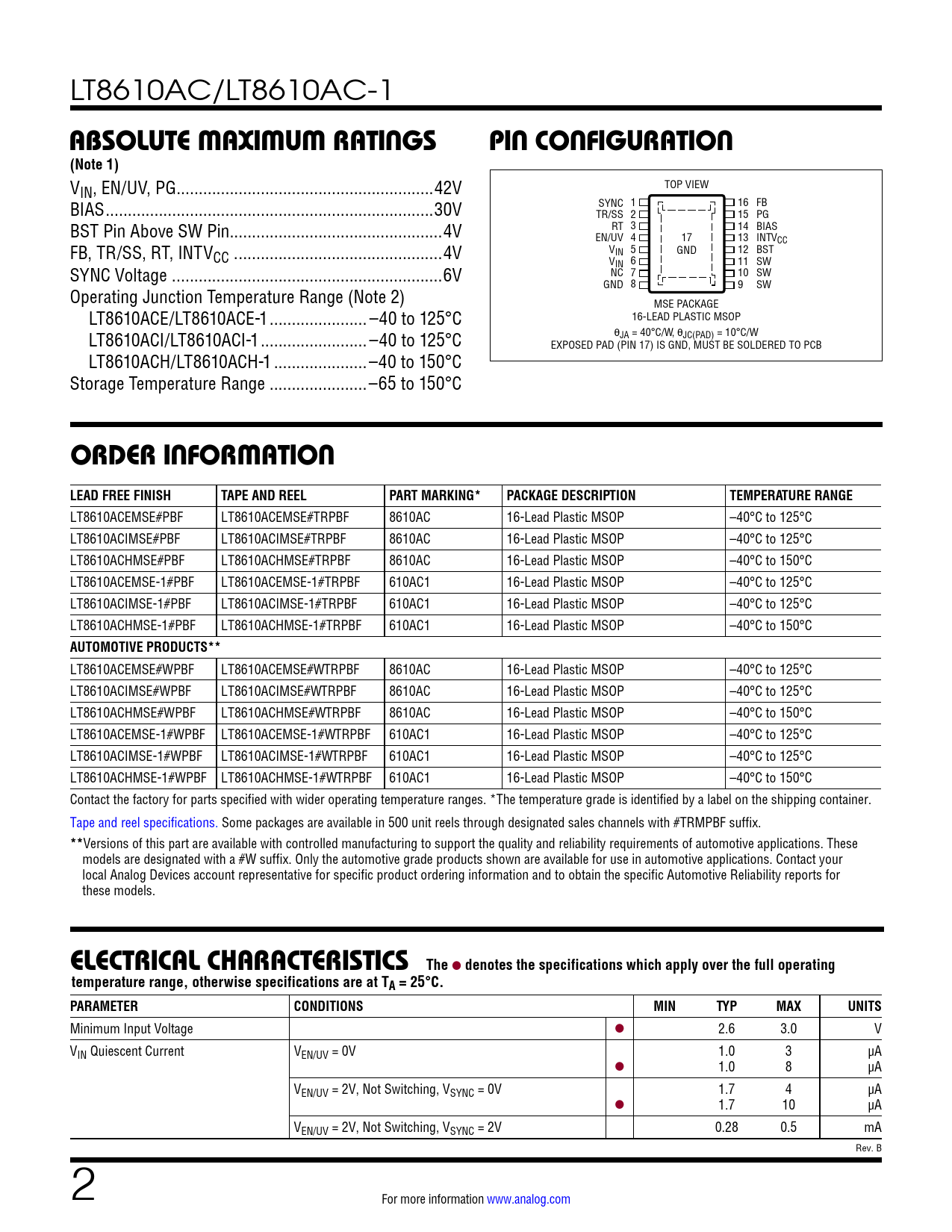

Datasheet LT8610AC, LT8610AC-1 (Analog Devices) - 2

LT8610AC/LT8610AC-1
ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Note 1)
VIN, EN/UV, PG ..42V TOP VIEW BIAS ..30V SYNC 1 16 FB TR/SS 2 15 PG BST Pin Above SW Pin..4V RT 3 14 BIAS EN/UV 4 17 13 INTVCC FB, TR/SS, RT, INTVCC . ..4V V 5 IN GND 12 BST V 6 11 SW SYNC Voltage . ..6V IN NC 7 10 SW GND 8 9 SW Operating Junction Temperature Range (Note 2) MSE PACKAGE LT8610ACE/LT8610ACE-1 .. –40 to 125°C 16-LEAD PLASTIC MSOP LT8610ACI/LT8610ACI-1 .. –40 to 125°C θJA = 40°C/W, θJC(PAD) = 10°C/W EXPOSED PAD (PIN 17) IS GND, MUST BE SOLDERED TO PCB LT8610ACH/LT8610ACH-1 ...–40 to 150°C Storage Temperature Range ..–65 to 150°C
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LT8610ACEMSE#PBF LT8610ACEMSE#TRPBF 8610AC 16-Lead Plastic MSOP –40°C to 125°C LT8610ACIMSE#PBF LT8610ACIMSE#TRPBF 8610AC 16-Lead Plastic MSOP –40°C to 125°C LT8610ACHMSE#PBF LT8610ACHMSE#TRPBF 8610AC 16-Lead Plastic MSOP –40°C to 150°C LT8610ACEMSE-1#PBF LT8610ACEMSE-1#TRPBF 610AC1 16-Lead Plastic MSOP –40°C to 125°C LT8610ACIMSE-1#PBF LT8610ACIMSE-1#TRPBF 610AC1 16-Lead Plastic MSOP –40°C to 125°C LT8610ACHMSE-1#PBF LT8610ACHMSE-1#TRPBF 610AC1 16-Lead Plastic MSOP –40°C to 150°C
AUTOMOTIVE PRODUCTS**
LT8610ACEMSE#WPBF LT8610ACEMSE#WTRPBF 8610AC 16-Lead Plastic MSOP –40°C to 125°C LT8610ACIMSE#WPBF LT8610ACIMSE#WTRPBF 8610AC 16-Lead Plastic MSOP –40°C to 125°C LT8610ACHMSE#WPBF LT8610ACHMSE#WTRPBF 8610AC 16-Lead Plastic MSOP –40°C to 150°C LT8610ACEMSE-1#WPBF LT8610ACEMSE-1#WTRPBF 610AC1 16-Lead Plastic MSOP –40°C to 125°C LT8610ACIMSE-1#WPBF LT8610ACIMSE-1#WTRPBF 610AC1 16-Lead Plastic MSOP –40°C to 125°C LT8610ACHMSE-1#WPBF LT8610ACHMSE-1#WTRPBF 610AC1 16-Lead Plastic MSOP –40°C to 150°C Contact the factory for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. Tape and reel specifications. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix.
**
Versions of this part are available with controlled manufacturing to support the quality and reliability requirements of automotive applications. These models are designated with a #W suffix. Only the automotive grade products shown are available for use in automotive applications. Contact your local Analog Devices account representative for specific product ordering information and to obtain the specific Automotive Reliability reports for these models.
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. PARAMETER CONDITIONS MIN TYP MAX UNITS
Minimum Input Voltage l 2.6 3.0 V VIN Quiescent Current VEN/UV = 0V 1.0 3 µA l 1.0 8 µA VEN/UV = 2V, Not Switching, VSYNC = 0V 1.7 4 µA l 1.7 10 µA VEN/UV = 2V, Not Switching, VSYNC = 2V 0.28 0.5 mA Rev. B 2 For more information www.analog.com Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Electrical Characteristics Pin Configuration Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
