TYPICAL PERFORMANCE CHARACTERISTICS TA = 25°C
Modelllinie für dieses Datenblatt
Textversion des Dokuments
LT8602

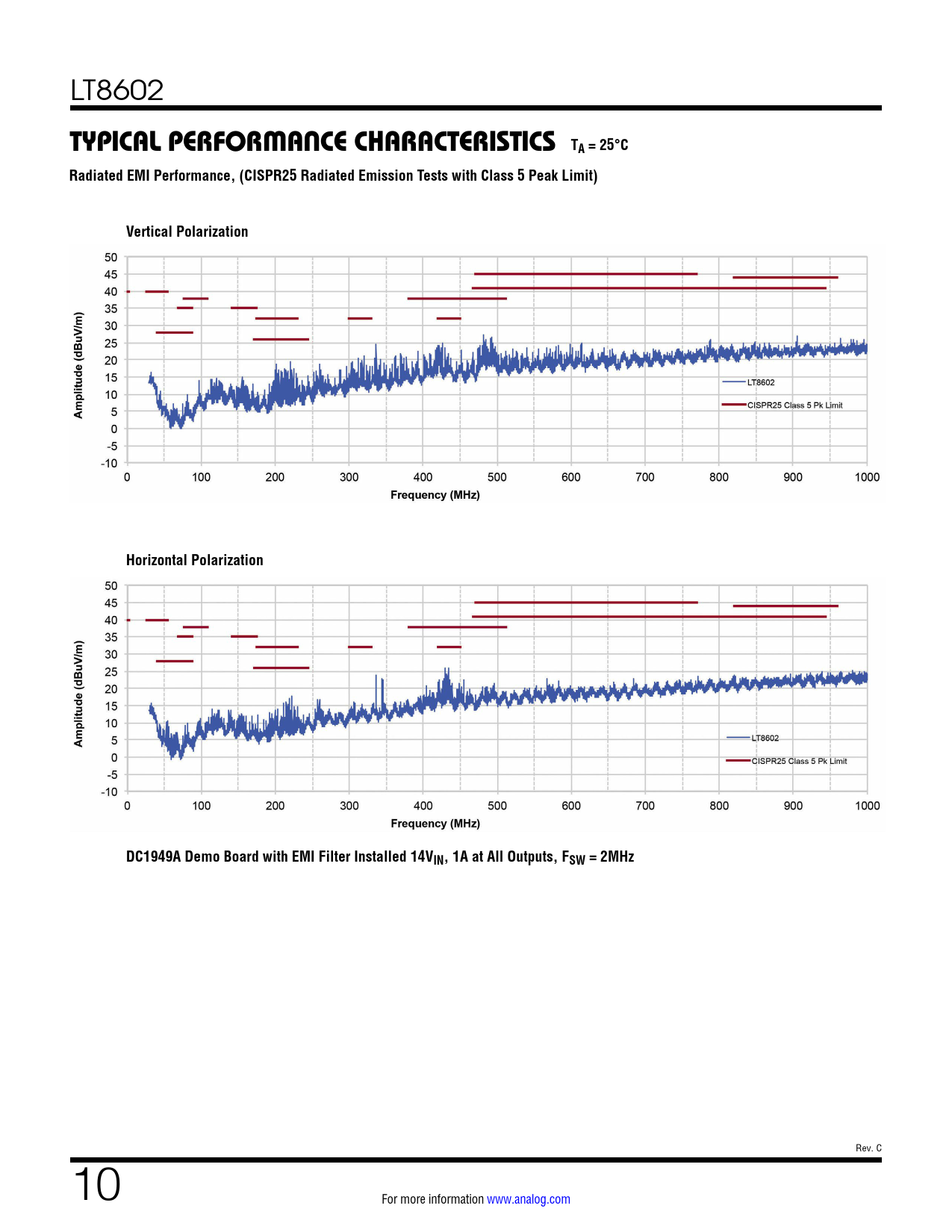

TYPICAL PERFORMANCE CHARACTERISTICS TA = 25°C Radiated EMI Performance, (CISPR25 Radiated Emission Tests with Class 5 Peak Limit) Vertical Polarization Horizontal Polarization DC1949A Demo Board with EMI Filter Installed 14VIN, 1A at All Outputs, FSW = 2MHz
