Datasheet LT8619, LT8619-5 (Analog Devices) - 3
| Hersteller | Analog Devices |
| Beschreibung | 60V, 1.2A Synchronous Monolithic Buck Regulator with 6μA Quiescent Current |
| Seiten / Seite | 28 / 3 — ELECTRICAL CHARACTERISTICS The. denotes the specifications which apply … |
| Revision | C |
| Dateiformat / Größe | PDF / 3.1 Mb |
| Dokumentensprache | Englisch |
ELECTRICAL CHARACTERISTICS The. denotes the specifications which apply over the full operating
Modelllinie für dieses Datenblatt
- LT8619EDD#PBF LT8619EDD#TRPBF LT8619EMSE#PBF LT8619EMSE#TRPBF LT8619EMSE#WPBF LT8619EMSE#WTRPBF LT8619EMSE-5#PBF LT8619EMSE-5#TRPBF LT8619EMSE-5#WPBF LT8619EMSE-5#WTRPBF LT8619IDD#PBF LT8619IDD#TRPBF LT8619IMSE#PBF LT8619IMSE#TRPBF LT8619IMSE#WPBF LT8619IMSE#WTRPBF LT8619IMSE-5#PBF LT8619IMSE-5#TRPBF LT8619IMSE-5#WPBF LT8619IMSE-5#WTRPBF
Textversion des Dokuments
LT8619/LT8619-5

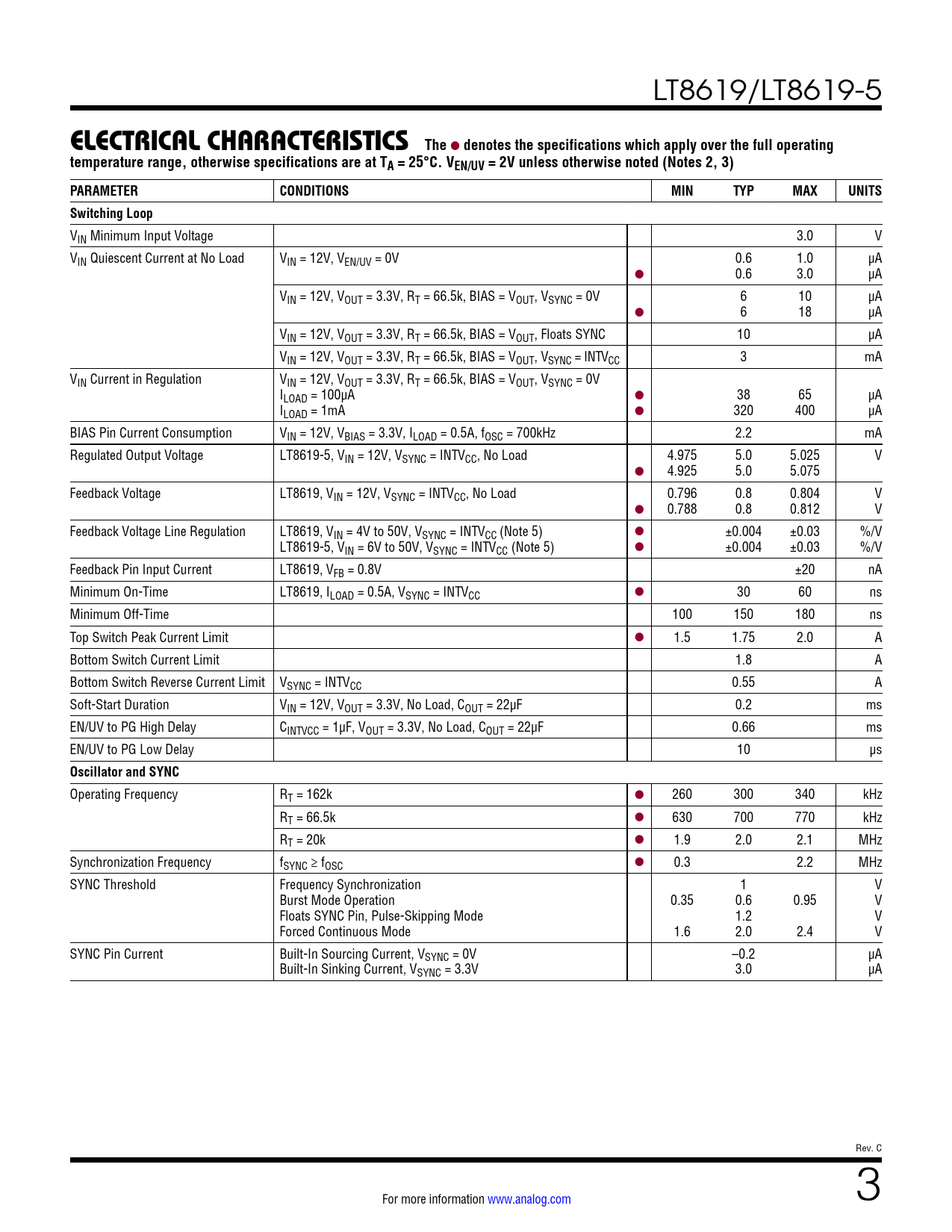

ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. VEN/UV = 2V unless otherwise noted (Notes 2, 3) PARAMETER CONDITIONS MIN TYP MAX UNITS Switching Loop
VIN Minimum Input Voltage 3.0 V VIN Quiescent Current at No Load VIN = 12V, VEN/UV = 0V 0.6 1.0 µA l 0.6 3.0 µA VIN = 12V, VOUT = 3.3V, RT = 66.5k, BIAS = VOUT, VSYNC = 0V 6 10 µA l 6 18 µA VIN = 12V, VOUT = 3.3V, RT = 66.5k, BIAS = VOUT, Floats SYNC 10 µA VIN = 12V, VOUT = 3.3V, RT = 66.5k, BIAS = VOUT, VSYNC = INTVCC 3 mA VIN Current in Regulation VIN = 12V, VOUT = 3.3V, RT = 66.5k, BIAS = VOUT, VSYNC = 0V ILOAD = 100µA l 38 65 µA ILOAD = 1mA l 320 400 µA BIAS Pin Current Consumption VIN = 12V, VBIAS = 3.3V, ILOAD = 0.5A, fOSC = 700kHz 2.2 mA Regulated Output Voltage LT8619-5, VIN = 12V, VSYNC = INTVCC, No Load 4.975 5.0 5.025 V l 4.925 5.0 5.075 Feedback Voltage LT8619, VIN = 12V, VSYNC = INTVCC, No Load 0.796 0.8 0.804 V l 0.788 0.8 0.812 V Feedback Voltage Line Regulation LT8619, VIN = 4V to 50V, VSYNC = INTVCC (Note 5) l ±0.004 ±0.03 %/V LT8619-5, VIN = 6V to 50V, VSYNC = INTVCC (Note 5) l ±0.004 ±0.03 %/V Feedback Pin Input Current LT8619, VFB = 0.8V ±20 nA Minimum On-Time LT8619, ILOAD = 0.5A, VSYNC = INTVCC l 30 60 ns Minimum Off-Time 100 150 180 ns Top Switch Peak Current Limit l 1.5 1.75 2.0 A Bottom Switch Current Limit 1.8 A Bottom Switch Reverse Current Limit VSYNC = INTVCC 0.55 A Soft-Start Duration VIN = 12V, VOUT = 3.3V, No Load, COUT = 22µF 0.2 ms EN/UV to PG High Delay CINTVCC = 1µF, VOUT = 3.3V, No Load, COUT = 22µF 0.66 ms EN/UV to PG Low Delay 10 µs
Oscillator and SYNC
Operating Frequency RT = 162k l 260 300 340 kHz RT = 66.5k l 630 700 770 kHz RT = 20k l 1.9 2.0 2.1 MHz Synchronization Frequency fSYNC ≥ fOSC l 0.3 2.2 MHz SYNC Threshold Frequency Synchronization 1 V Burst Mode Operation 0.35 0.6 0.95 V Floats SYNC Pin, Pulse-Skipping Mode 1.2 V Forced Continuous Mode 1.6 2.0 2.4 V SYNC Pin Current Built-In Sourcing Current, VSYNC = 0V –0.2 µA Built-In Sinking Current, VSYNC = 3.3V 3.0 µA Rev. C For more information www.analog.com 3 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Revision History Typical Application Related Parts
