TSC2010, TSC2011, TSC2012. Electrical characteristics
Modelllinie für dieses Datenblatt
Textversion des Dokuments
link to page 7 link to page 7

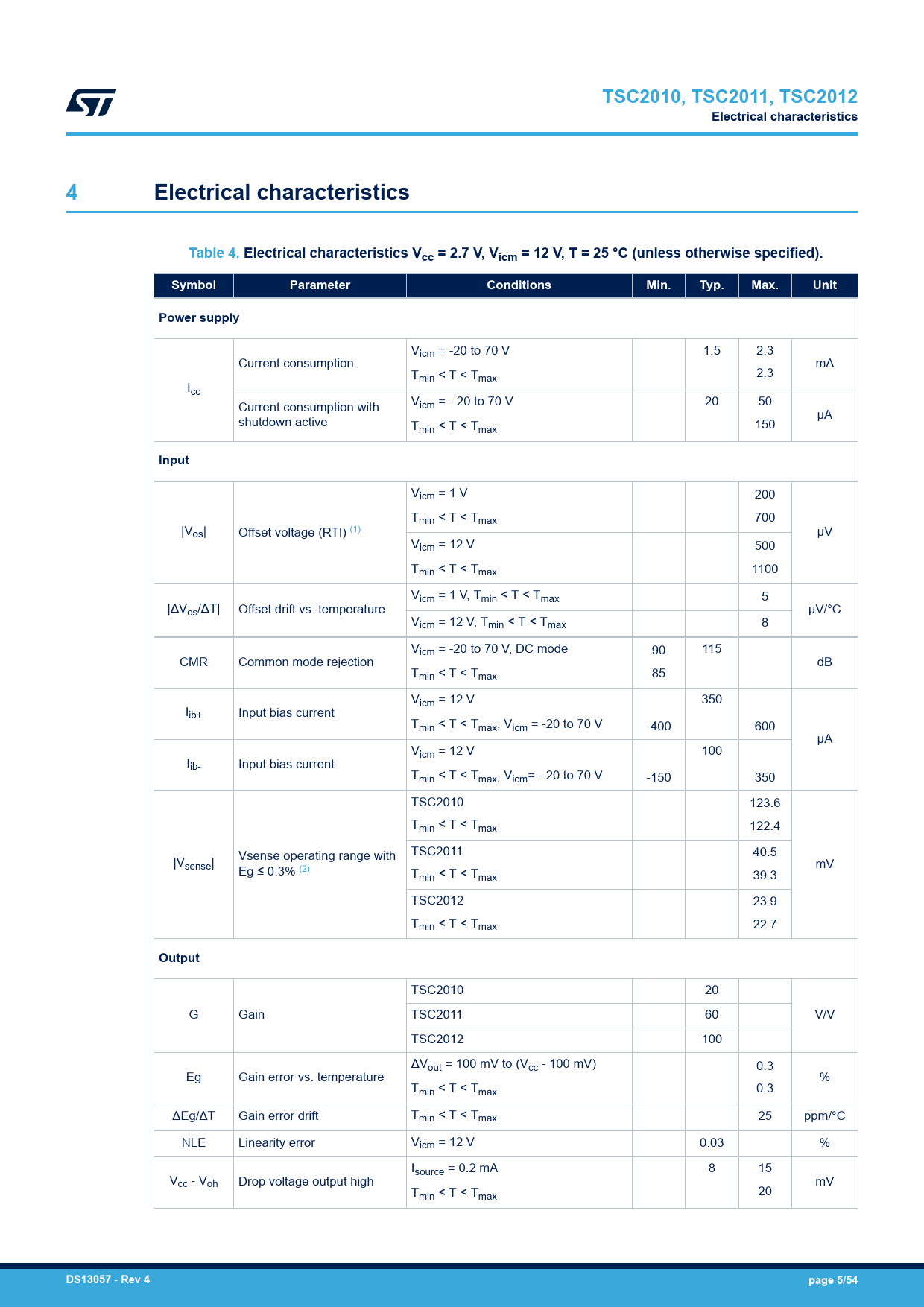

TSC2010, TSC2011, TSC2012 Electrical characteristics 4 Electrical characteristics Table 4. Electrical characteristics Vcc = 2.7 V, Vicm = 12 V, T = 25 °C (unless otherwise specified). Symbol Parameter Conditions Min. Typ. Max. Unit Power supply
Vicm = -20 to 70 V 1.5 2.3 Current consumption mA Tmin < T < Tmax 2.3 Icc Current consumption with Vicm = - 20 to 70 V 20 50 µA shutdown active Tmin < T < Tmax 150
Input
Vicm = 1 V 200 Tmin < T < Tmax 700 |Vos| Offset voltage (RTI) (1) µV Vicm = 12 V 500 Tmin < T < Tmax 1100 Vicm = 1 V, Tmin < T < Tmax 5 |ΔVos/ΔT| Offset drift vs. temperature µV/°C Vicm = 12 V, Tmin < T < Tmax 8 Vicm = -20 to 70 V, DC mode 90 115 CMR Common mode rejection dB Tmin < T < Tmax 85 Vicm = 12 V 350 Iib+ Input bias current Tmin < T < Tmax, Vicm = -20 to 70 V -400 600 µA Vicm = 12 V 100 Iib- Input bias current Tmin < T < Tmax, Vicm= - 20 to 70 V -150 350 TSC2010 123.6 Tmin < T < Tmax 122.4 Vsense operating range with TSC2011 40.5 |Vsense| mV Eg ≤ 0.3% (2) Tmin < T < Tmax 39.3 TSC2012 23.9 Tmin < T < Tmax 22.7
Output
TSC2010 20 G Gain TSC2011 60 V/V TSC2012 100 ΔVout = 100 mV to (Vcc - 100 mV) 0.3 Eg Gain error vs. temperature % Tmin < T < Tmax 0.3 ΔEg/ΔT Gain error drift Tmin < T < Tmax 25 ppm/°C NLE Linearity error Vicm = 12 V 0.03 % Isource = 0.2 mA 8 15 Vcc - Voh Drop voltage output high mV Tmin < T < Tmax 20
DS13057
-
Rev 4 page 5/54
