Datasheet NTH4L015N065SC1 (ON Semiconductor) - 3
| Hersteller | ON Semiconductor |
| Beschreibung | MOSFET - SiC Power, Single N-Channel, TO247-4L 650 V, 12 mW, 142 A |
| Seiten / Seite | 8 / 3 — NTH4L015N065SC1. ELECTRICAL CHARACTERISTICS. Parameter. Symbol. Test … |
| Dateiformat / Größe | PDF / 280 Kb |
| Dokumentensprache | Englisch |

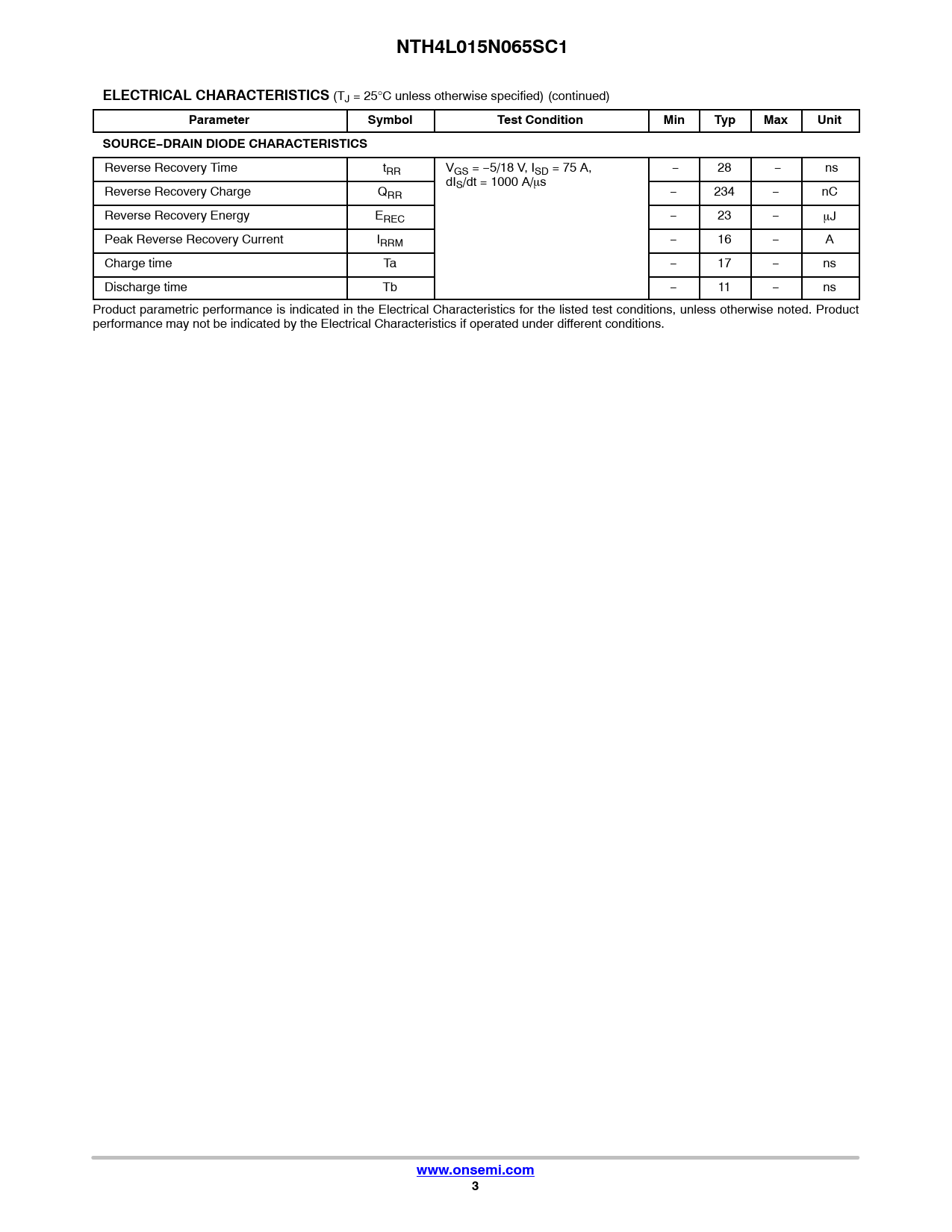

NTH4L015N065SC1. ELECTRICAL CHARACTERISTICS. Parameter. Symbol. Test Condition. Min. Typ. Max. Unit. SOURCE−DRAIN DIODE CHARACTERISTICS
Modelllinie für dieses Datenblatt
Textversion des Dokuments
NTH4L015N065SC1 ELECTRICAL CHARACTERISTICS
(TJ = 25°C unless otherwise specified) (continued)
Parameter Symbol Test Condition Min Typ Max Unit SOURCE−DRAIN DIODE CHARACTERISTICS
Reverse Recovery Time tRR VGS = −5/18 V, ISD = 75 A, − 28 − ns dIS/dt = 1000 A/s Reverse Recovery Charge QRR − 234 − nC Reverse Recovery Energy EREC − 23 − J Peak Reverse Recovery Current IRRM − 16 − A Charge time Ta − 17 − ns Discharge time Tb − 11 − ns Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions.
www.onsemi.com 3
(TJ = 25°C unless otherwise specified) (continued)
Parameter Symbol Test Condition Min Typ Max Unit SOURCE−DRAIN DIODE CHARACTERISTICS
Reverse Recovery Time tRR VGS = −5/18 V, ISD = 75 A, − 28 − ns dIS/dt = 1000 A/s Reverse Recovery Charge QRR − 234 − nC Reverse Recovery Energy EREC − 23 − J Peak Reverse Recovery Current IRRM − 16 − A Charge time Ta − 17 − ns Discharge time Tb − 11 − ns Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions.
www.onsemi.com 3
