NV6128 8 Characteristic Graphs (Cont.)

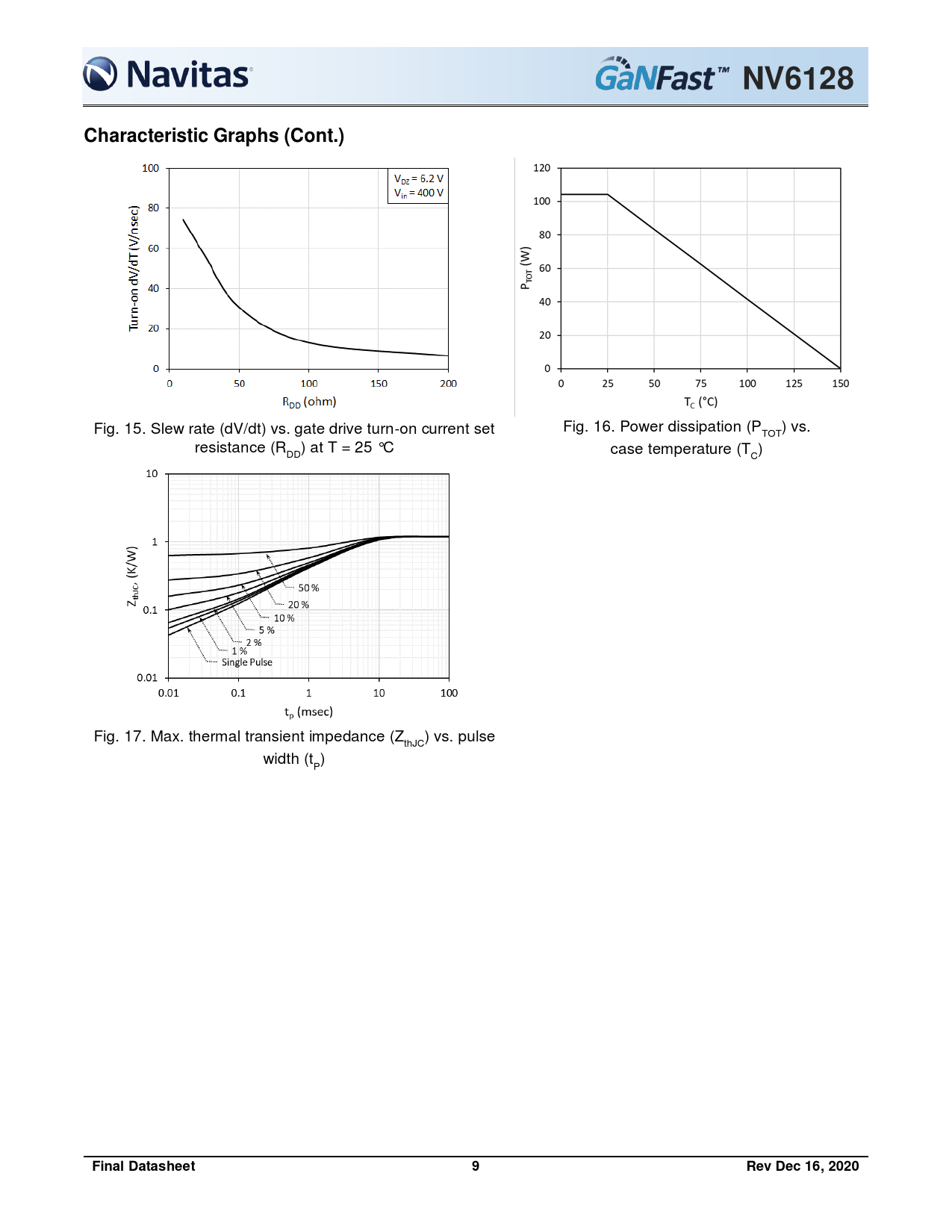

Fig. 15. Slew rate (dV/dt) vs. gate drive turn-on current set Fig. 16. Power dissipation (P ) vs. TOT resistance (R ) at T = 25 °C case temperature (T ) DD C Fig. 17. Max. thermal transient impedance (Z ) vs. pulse thJC width (t ) P
Final Datasheet 9 Rev Dec 16, 2020
