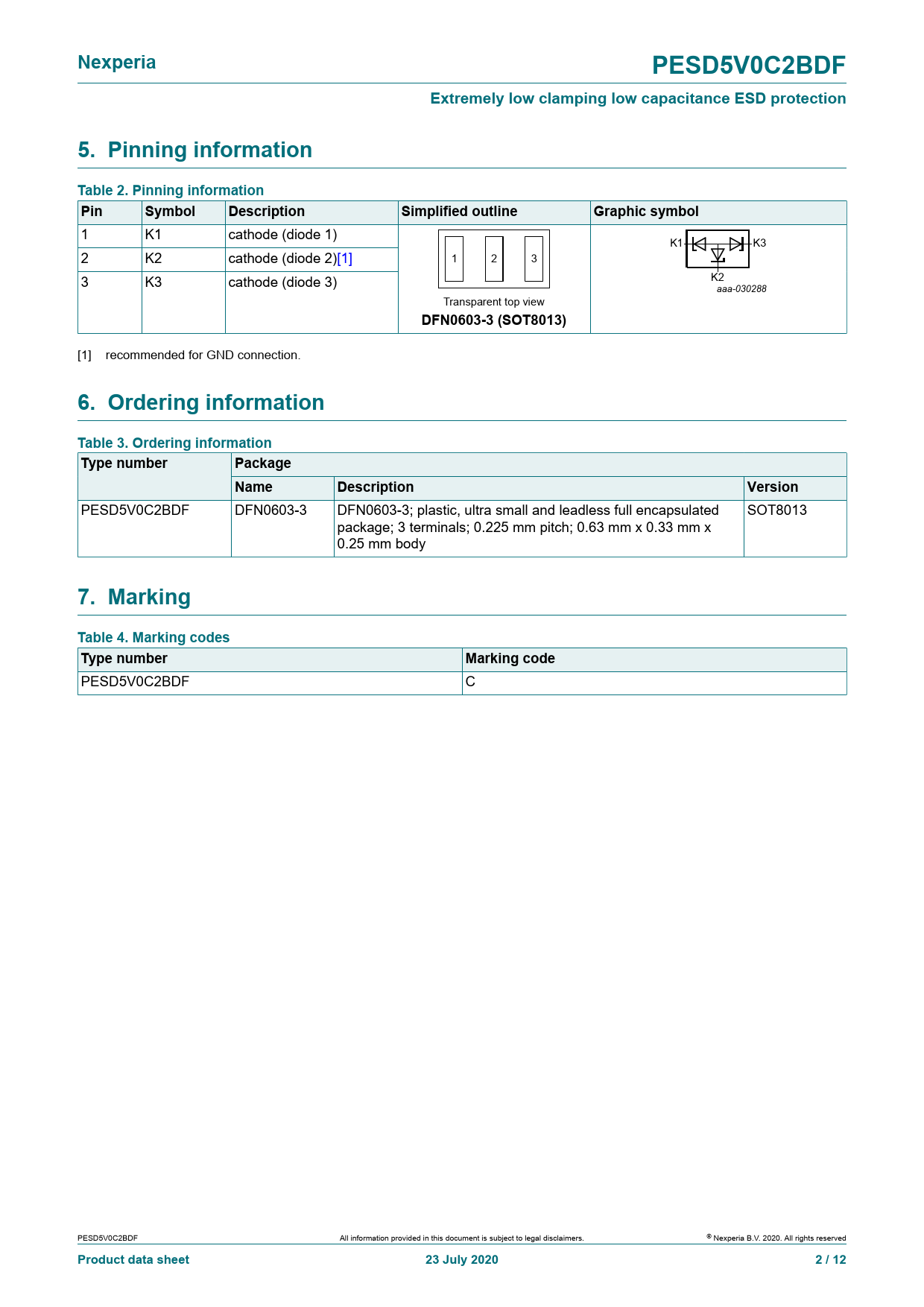

Nexperia PESD5V0C2BDF Extremely low clamping low capacitance ESD protection 5. Pinning information Table 2. Pinning information Pin Symbol Description Simplified outline Graphic symbol
1 K1 cathode (diode 1) K1 K3 2 K2 cathode (diode 2)[1] 1 2 3 3 K3 cathode (diode 3) K2 aaa-030288 Transparent top view
DFN0603-3 (SOT8013)
[1] recommended for GND connection.
6. Ordering information Table 3. Ordering information Type number Package Name Description Version
PESD5V0C2BDF DFN0603-3 DFN0603-3; plastic, ultra small and leadless full encapsulated SOT8013 package; 3 terminals; 0.225 mm pitch; 0.63 mm x 0.33 mm x 0.25 mm body
7. Marking Table 4. Marking codes Type number Marking code
PESD5V0C2BDF C PESD5V0C2BDF All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2020. Al rights reserved
