Datasheet SQJ211ELP (Vishay) - 8
| Hersteller | Vishay |
| Beschreibung | Automotive P-Channel 100 V (D-S) 175 °C MOSFET |
| Seiten / Seite | 9 / 8 — PAD Pattern. RECOMMENDED MINIMUM PAD FOR PowerPAK® SO-8L SINGLE |
| Dateiformat / Größe | PDF / 247 Kb |
| Dokumentensprache | Englisch |
PAD Pattern. RECOMMENDED MINIMUM PAD FOR PowerPAK® SO-8L SINGLE
Modelllinie für dieses Datenblatt
Textversion des Dokuments
PAD Pattern
www.vishay.com Vishay Siliconix

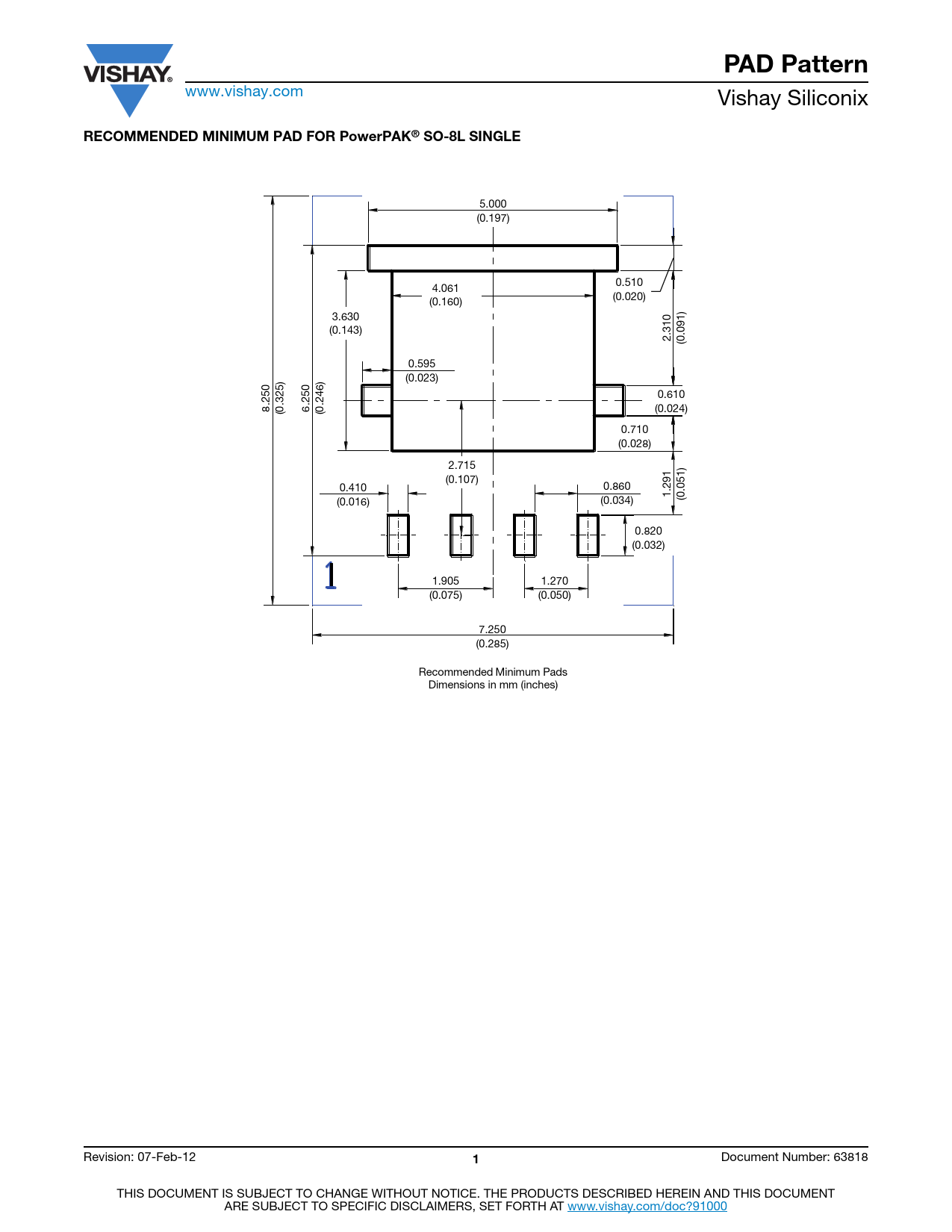

RECOMMENDED MINIMUM PAD FOR PowerPAK® SO-8L SINGLE
5.000 (0.197) 0.510 4.061 (0.020) (0.160) 3.630 (0.143) 2.310 (0.091) 0.595 (0.023) 0.610 8.250 (0.024) (0.325) 6.250 (0.246) 0.710 (0.028) 2.715 (0.107) 0.410 0.860 1.291 (0.051) (0.016) (0.034) 0.820 (0.032) 1.905 1.270 (0.075) (0.050) 7.250 (0.285) Recommended Minimum Pads Dimensions in mm (inches) Revision: 07-Feb-12
