Datasheet T3035H-8I (STMicroelectronics) - 3
| Hersteller | STMicroelectronics |
| Beschreibung | 30 A - 800 V - 150°C H-series Triac in TO-220AB insulated |
| Seiten / Seite | 11 / 3 — T3035H-8I. Characteristics. Table 3. Static characteristics. Symbol. Test … |
| Dateiformat / Größe | PDF / 269 Kb |
| Dokumentensprache | Englisch |
T3035H-8I. Characteristics. Table 3. Static characteristics. Symbol. Test conditions. Value. Unit. Table 4. Thermal resistance
Modelllinie für dieses Datenblatt
Textversion des Dokuments
link to page 3 link to page 3 link to page 3

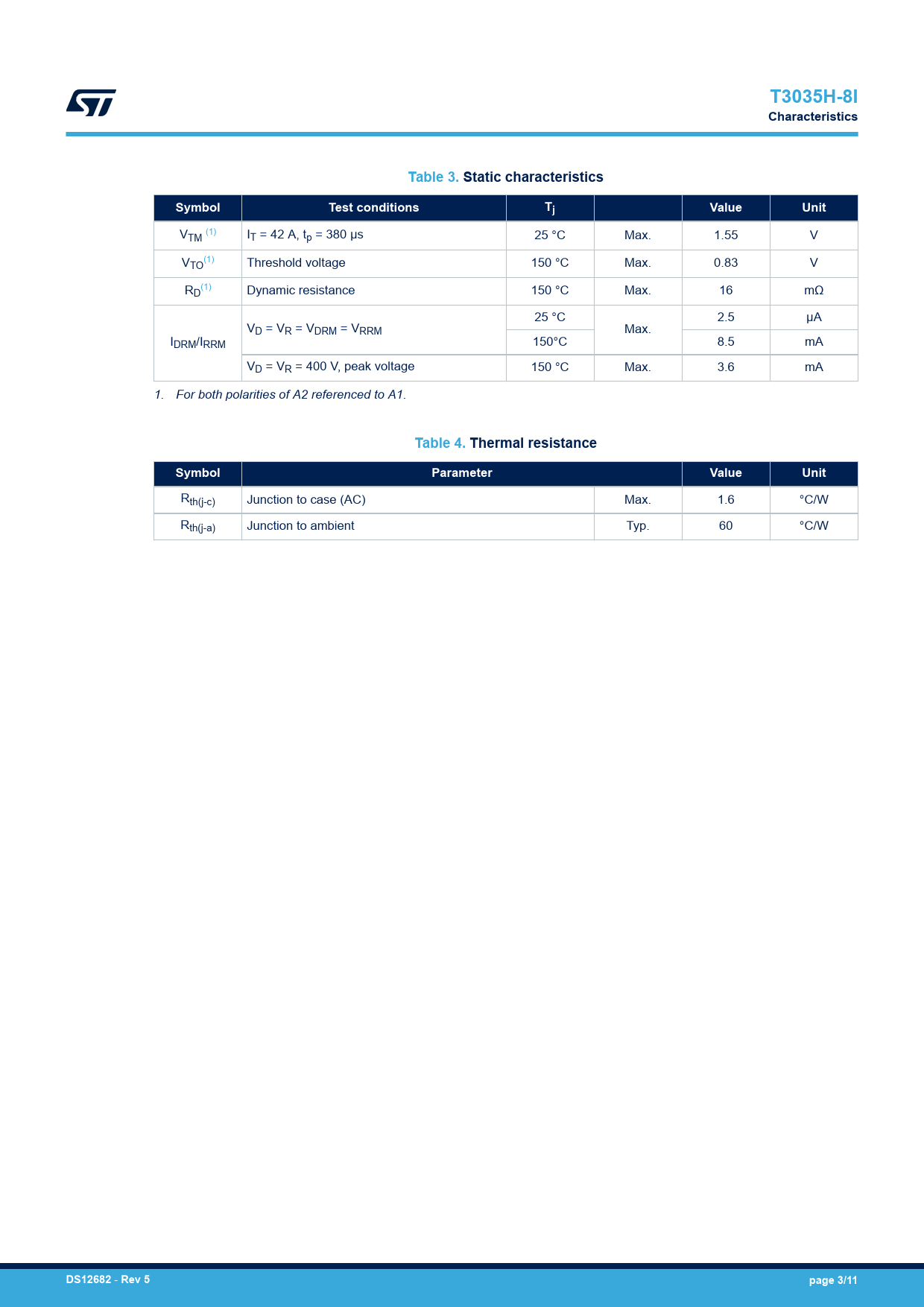

T3035H-8I Characteristics Table 3. Static characteristics Symbol Test conditions Tj Value Unit
VTM (1) IT = 42 A, tp = 380 µs 25 °C Max. 1.55 V V (1) TO Threshold voltage 150 °C Max. 0.83 V R (1) D Dynamic resistance 150 °C Max. 16 mΩ 25 °C 2.5 µA VD = VR = VDRM = VRRM Max. IDRM/IRRM 150°C 8.5 mA VD = VR = 400 V, peak voltage 150 °C Max. 3.6 mA 1. For both polarities of A2 referenced to A1.
Table 4. Thermal resistance Symbol Parameter Value Unit
Rth(j-c) Junction to case (AC) Max. 1.6 °C/W Rth(j-a) Junction to ambient Typ. 60 °C/W
DS12682
-
Rev 5 page 3/11
Document Outline 1 Characteristics 1.1 Characteristics (curves) 2 Package information 2.1 TO-220AB insulated package information 3 Ordering information Revision history
