Datasheet T835H-8I (STMicroelectronics) - 9
| Hersteller | STMicroelectronics |
| Beschreibung | 8 A - 800 V - 150°C 8H-Triac in TO-220AB insulated |
| Seiten / Seite | 11 / 9 — T835H-8I. Ordering information. Figure 15. Ordering information scheme. … |
| Dateiformat / Größe | PDF / 264 Kb |
| Dokumentensprache | Englisch |
T835H-8I. Ordering information. Figure 15. Ordering information scheme. Table 6. Ordering information. Order code. Marking. Package
Modelllinie für dieses Datenblatt
Textversion des Dokuments

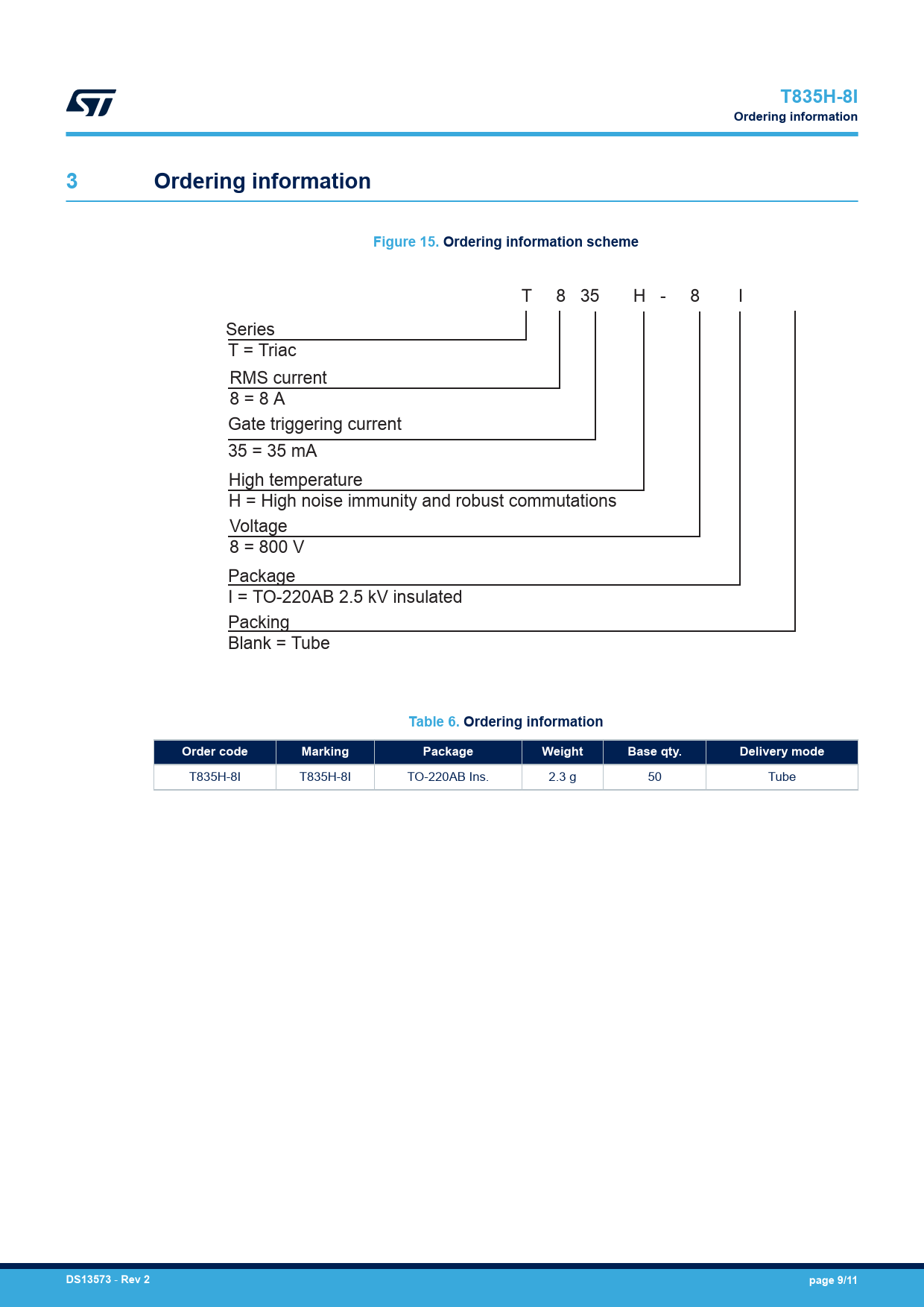

T835H-8I Ordering information 3 Ordering information Figure 15. Ordering information scheme
T 8 35 H - 8 I Series T = Triac RMS current 8 = 8 A Gate triggering current 35 = 35 mA High temperature H = High noise immunity and robust commutations Voltage 8 = 800 V Package I = TO-220AB 2.5 kV insulated Packing Blank = Tube
Table 6. Ordering information Order code Marking Package Weight Base qty. Delivery mode
T835H-8I T835H-8I TO-220AB Ins. 2.3 g 50 Tube
DS13573
-
Rev 2 page 9/11
Document Outline 1 Characteristics 1.1 Characteristics (curves) 2 Package information 2.1 TO-220AB insulated package information 3 Ordering information Revision history
