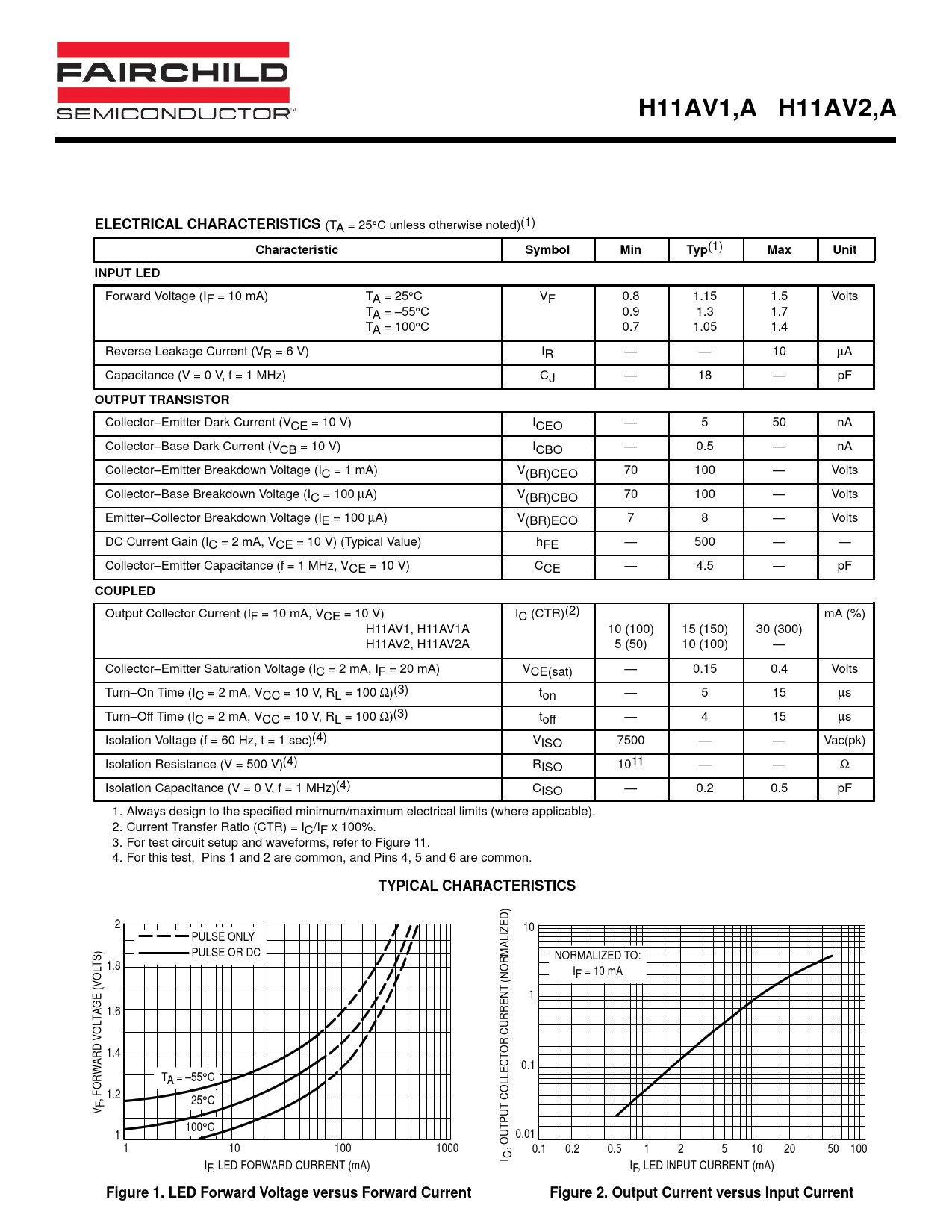

Datasheet H11AV1, H11AV1A, H11AV2, H11AV2A (Fairchild) - 2
| Hersteller | Fairchild |
| Beschreibung | 6-Pin DIP Optoisolators Transistor Output |
| Seiten / Seite | 7 / 2 — H11AV1,A H11AV2,A. ELECTRICAL CHARACTERISTICS. Characteristic. Symbol. … |
| Dateiformat / Größe | PDF / 154 Kb |
| Dokumentensprache | Englisch |
H11AV1,A H11AV2,A. ELECTRICAL CHARACTERISTICS. Characteristic. Symbol. Min. Typ. Max. Unit. INPUT LED. OUTPUT TRANSISTOR. COUPLED
Modelllinie für dieses Datenblatt
Textversion des Dokuments
H11AV1,A H11AV2,A ELECTRICAL CHARACTERISTICS
(TA = 25°C unless otherwise noted)(1)
Characteristic Symbol Min Typ
(1)
Max Unit INPUT LED
Forward Voltage (IF = 10 mA) TA = 25°C VF 0.8 1.15 1.5 Volts TA = –55°C 0.9 1.3 1.7 TA = 100°C 0.7 1.05 1.4 Reverse Leakage Current (VR = 6 V) IR — — 10 µA Capacitance (V = 0 V, f = 1 MHz) CJ — 18 — pF
OUTPUT TRANSISTOR
Collector–Emitter Dark Current (VCE = 10 V) ICEO — 5 50 nA Collector–Base Dark Current (VCB = 10 V) ICBO — 0.5 — nA Collector–Emitter Breakdown Voltage (IC = 1 mA) V(BR)CEO 70 100 — Volts Collector–Base Breakdown Voltage (IC = 100 µA) V(BR)CBO 70 100 — Volts Emitter–Collector Breakdown Voltage (IE = 100 µA) V(BR)ECO 7 8 — Volts DC Current Gain (IC = 2 mA, VCE = 10 V) (Typical Value) hFE — 500 — — Collector–Emitter Capacitance (f = 1 MHz, VCE = 10 V) CCE — 4.5 — pF
COUPLED
Output Collector Current (IF = 10 mA, VCE = 10 V) IC (CTR)(2) mA (%) H11AV1, H11AV1A 10 (100) 15 (150) 30 (300) H11AV2, H11AV2A 5 (50) 10 (100) — Collector–Emitter Saturation Voltage (IC = 2 mA, IF = 20 mA) VCE(sat) — 0.15 0.4 Volts Turn–On Time (IC = 2 mA, VCC = 10 V, RL = 100 Ω)(3) ton — 5 15 µs Turn–Off Time (IC = 2 mA, VCC = 10 V, RL = 100 Ω)(3) toff — 4 15 µs Isolation Voltage (f = 60 Hz, t = 1 sec)(4) VISO 7500 — — Vac(pk) Isolation Resistance (V = 500 V)(4) RISO 1011 — — Ω Isolation Capacitance (V = 0 V, f = 1 MHz)(4) CISO — 0.2 0.5 pF 1. Always design to the specified minimum/maximum electrical limits (where applicable). 2. Current Transfer Ratio (CTR) = IC/IF x 100%. 3. For test circuit setup and waveforms, refer to Figure 11. 4. For this test, Pins 1 and 2 are common, and Pins 4, 5 and 6 are common.
TYPICAL CHARACTERISTICS
2 10 PULSE ONLY PULSE OR DC NORMALIZED TO: TS) 1.8 IF = 10 mA (NORMALIZED) 1 AGE (VOL 1.6 T OR CURRENT 1.4 ARD VOL 0.1 W TA = –55°C 1.2 , FOR 25°C COLLECT FV 100°C 1 0.01 1 10 100 1000 , OUTPUT 0.1 0.2 0.5 1 2 5 10 20 50 100 I C IF, LED FORWARD CURRENT (mA) IF, LED INPUT CURRENT (mA)
Figure 1. LED Forward Voltage versus Forward Current Figure 2. Output Current versus Input Current
