Datasheet HT12A, HT12E (Holtek) - 10

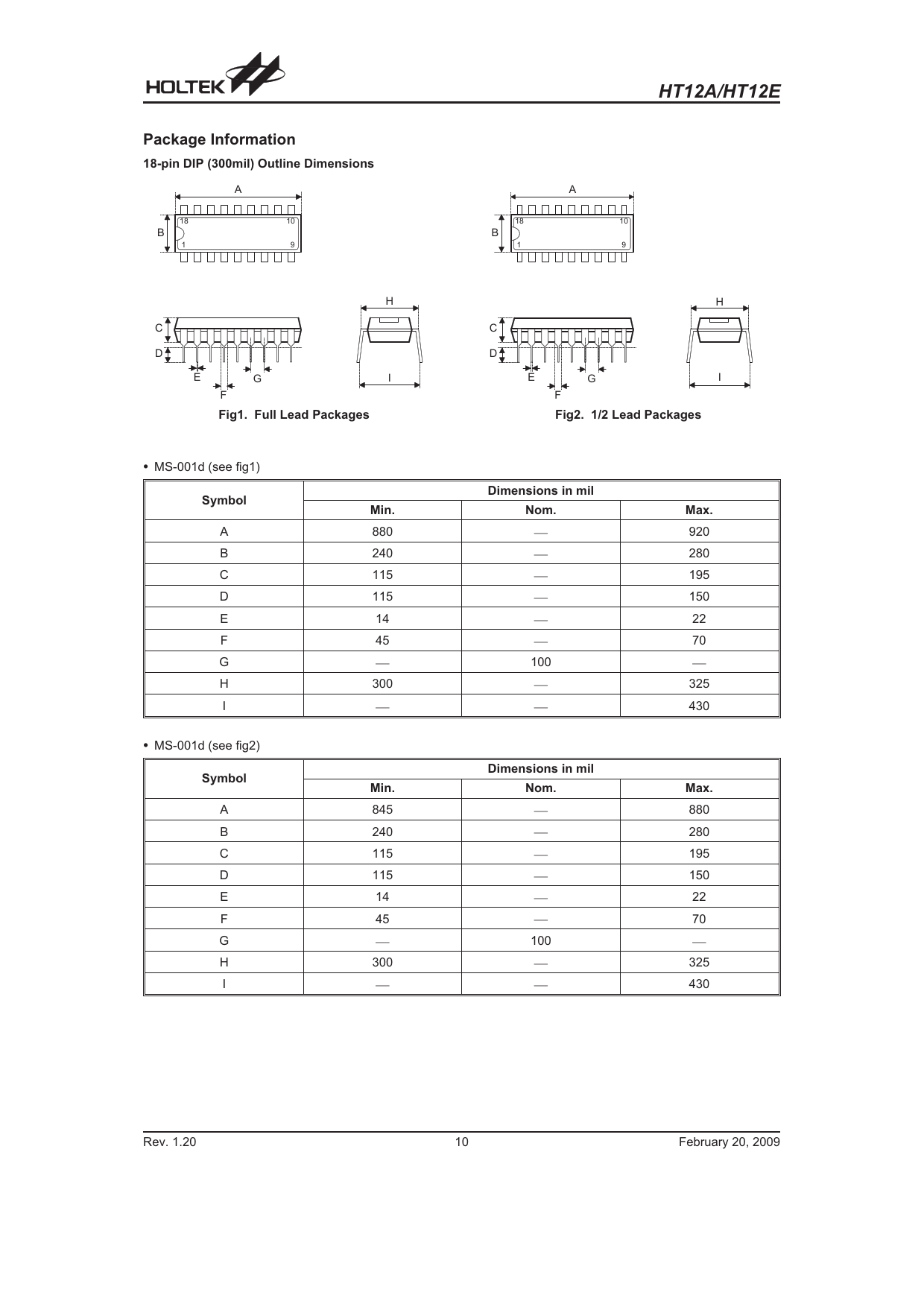

HT12A/HT12E Package Information 18-pin DIP (300mil) Outline Dimensions
A A 1 8 1 0 1 8 1 0 B B 1 9 1 9 H H C C D D E G I E G I F F
Fig1. Full Lead Packages Fig2. 1/2 Lead Packages
· MS-001d (see fig1)
Dimensions in mil Symbol Min. Nom. Max.
A 880 ¾ 920 B 240 ¾ 280 C 115 ¾ 195 D 115 ¾ 150 E 14 ¾ 22 F 45 ¾ 70 G ¾ 100 ¾ H 300 ¾ 325 I ¾ ¾ 430 · MS-001d (see fig2)
Dimensions in mil Symbol Min. Nom. Max.
A 845 ¾ 880 B 240 ¾ 280 C 115 ¾ 195 D 115 ¾ 150 E 14 ¾ 22 F 45 ¾ 70 G ¾ 100 ¾ H 300 ¾ 325 I ¾ ¾ 430 Rev. 1.20 10 February 20, 2009 Document Outline Features Applications General Description Selection Table Block Diagram Pin Assignment Pin Description Absolute Maximum Ratings Electrical Characteristics Functional Description Application Circuits Package Information Product Tape and Reel Specifications
