Datasheet AP63356Q, AP63357Q (Diodes) - 10
| Hersteller | Diodes |
| Beschreibung | Automotive-Compliant, 32V, 3.5A Low IQ Synchronous Buck Converter |
| Seiten / Seite | 28 / 10 — AP63356Q/AP63357Q. Typical Performance Characteristics. VOUT (200mV/div). … |
| Dateiformat / Größe | PDF / 1.7 Mb |
| Dokumentensprache | Englisch |
AP63356Q/AP63357Q. Typical Performance Characteristics. VOUT (200mV/div). VOUT (500mV/div). IOUT (500mA/div). IOUT (1A/div)
Modelllinie für dieses Datenblatt
Textversion des Dokuments
AP63356Q/AP63357Q Typical Performance Characteristics
(AP63356Q @ TA = +25°C, VIN = 12V, VOUT = 5V, BOM = Table 1, unless otherwise specified.) (continued)

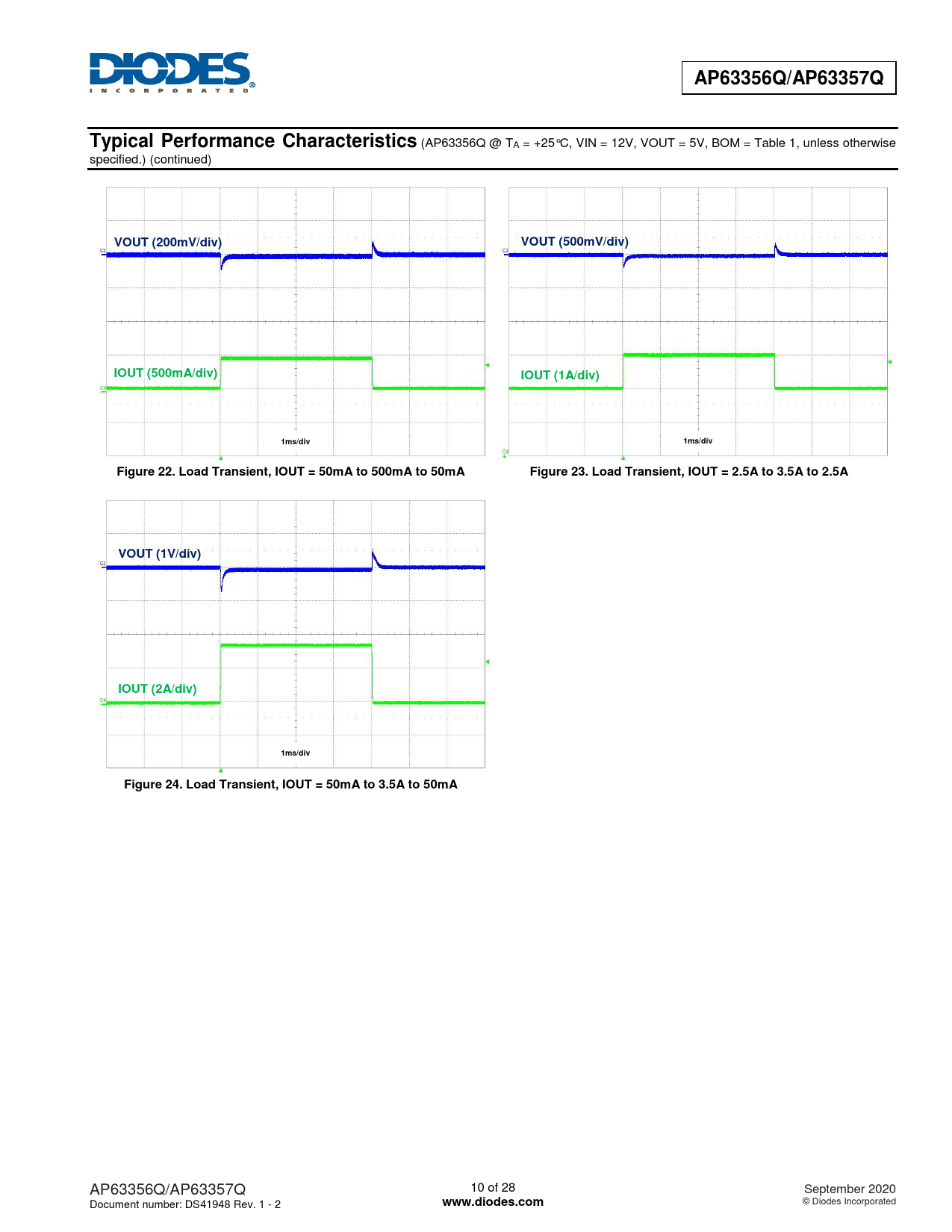

VOUT (200mV/div) VOUT (500mV/div) IOUT (500mA/div) IOUT (1A/div) 1ms/div 1ms/div Figure 22. Load Transient, IOUT = 50mA to 500mA to 50mA Figure 23. Load Transient, IOUT = 2.5A to 3.5A to 2.5A VOUT (1V/div) IOUT (2A/div) 1ms/div Figure 24. Load Transient, IOUT = 50mA to 3.5A to 50mA
