Datasheet 2N2369 (CDIL) - 2
| Hersteller | CDIL |
| Beschreibung | NPN Silicon Planar Epitaxial Transistors in TO-18 |
| Seiten / Seite | 3 / 2 — ELECTRICAL CHARACTERISTICS (Ta=25 deg C Unless Otherwise Specified). … |
| Dateiformat / Größe | PDF / 136 Kb |
| Dokumentensprache | Englisch |

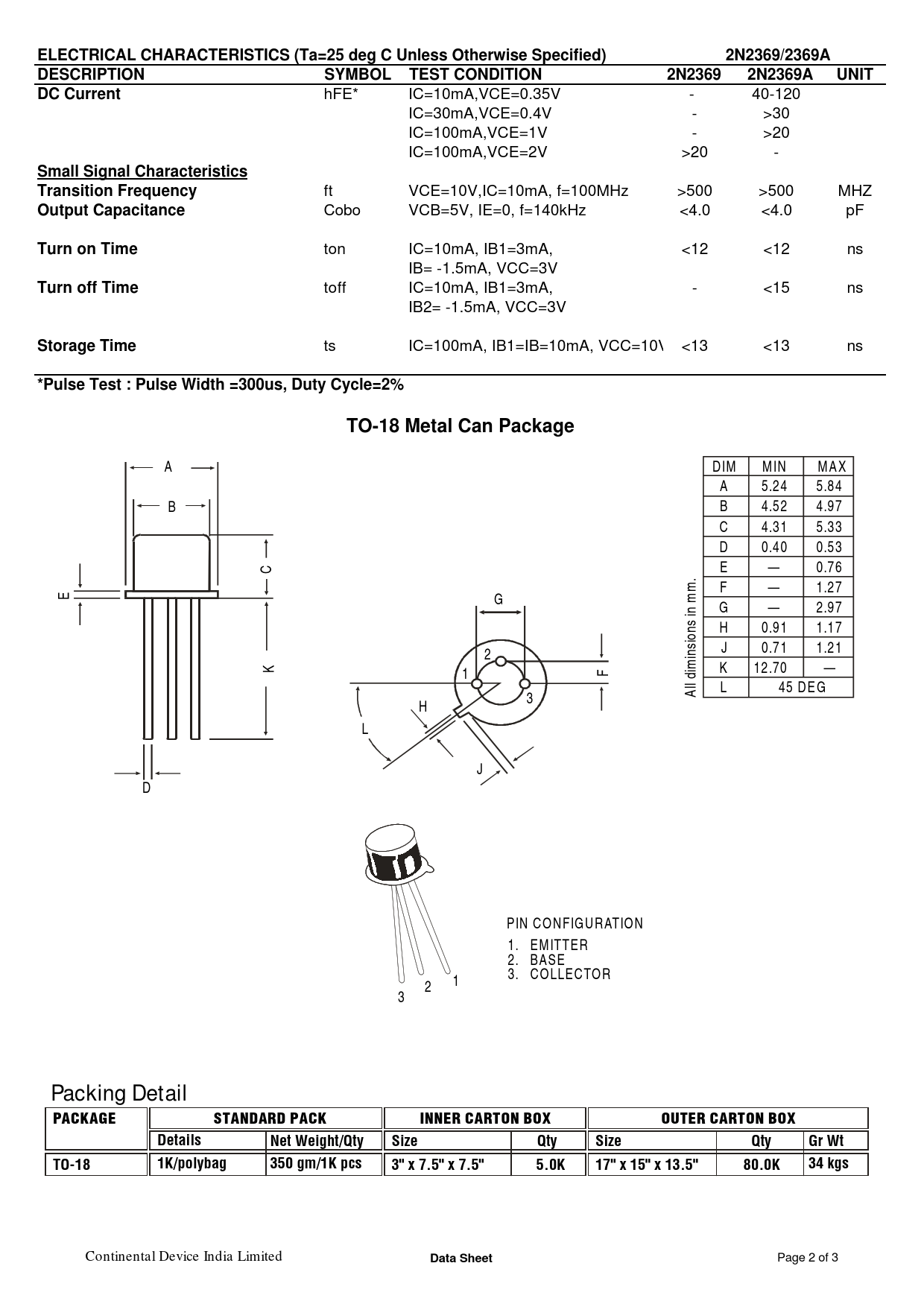

ELECTRICAL CHARACTERISTICS (Ta=25 deg C Unless Otherwise Specified). 2N2369/2369A. DESCRIPTION. SYMBOL. TEST CONDITION
Modelllinie für dieses Datenblatt
Textversion des Dokuments
ELECTRICAL CHARACTERISTICS (Ta=25 deg C Unless Otherwise Specified) 2N2369/2369A DESCRIPTION SYMBOL TEST CONDITION 2N2369 2N2369A UNIT DC Current
hFE* IC=10mA,VCE=0.35V - 40-120 IC=30mA,VCE=0.4V - >30 IC=100mA,VCE=1V - >20 IC=100mA,VCE=2V >20 -
Small Signal Characteristics Transition Frequency
ft VCE=10V,IC=10mA, f=100MHz >500 >500 MHZ
Output Capacitance
Cobo VCB=5V, IE=0, f=140kHz <4.0 <4.0 pF
Turn on Time
ton IC=10mA, IB1=3mA, <12 <12 ns IB= -1.5mA, VCC=3V
Turn off Time
toff IC=10mA, IB1=3mA, - <15 ns IB2= -1.5mA, VCC=3V
Storage Time
ts IC=100mA, IB1=IB=10mA, VCC=10V <13 <13 ns
*Pulse Test : Pulse Width =300us, Duty Cycle=2% TO-18 Metal Can Package
A DIM M IN M A X A 5.24 5.84 B B 4.52 4.97 C 4.31 5.33 D 0.40 0.53 C E — 0.76 . m F — 1.27 E G m G — 2.97 in H 0.91 1.17 ions J 0.71 1.21 2 ins K 1 F K 12.70 — ll dim L 45 DE G 3 A H L J D PIN CONFIGURATION 1. EM ITTER 2. BASE 3. COLLECTOR 1 2 3
Packing Detail PACKAGE STANDARD PACK INNER CARTON BOX OUTER CARTON BOX Details Net Weight/Qty Size Qty Size Qty Gr Wt TO-18 1K/polybag 350 gm/1K pcs 3" x 7.5" x 7.5" 5.0K 17" x 15" x 13.5" 80.0K 34 kgs
Continental Device India Limited
Data Sheet
Page 2 of 3
