Datasheet DMMT3906W (Diodes) - 5
| Hersteller | Diodes |
| Beschreibung | 40V Matched Pair PNP Small Signal Transistor in SOT363 |
| Seiten / Seite | 6 / 5 — DMMT3906W. Package Outline Dimensions. SOT363. Dim Min Max. Typ. All … |
| Dateiformat / Größe | PDF / 453 Kb |
| Dokumentensprache | Englisch |
DMMT3906W. Package Outline Dimensions. SOT363. Dim Min Max. Typ. All Dimensions in mm. Suggested Pad Layout. Value. Dimensions. (in mm)
Modelllinie für dieses Datenblatt
Textversion des Dokuments

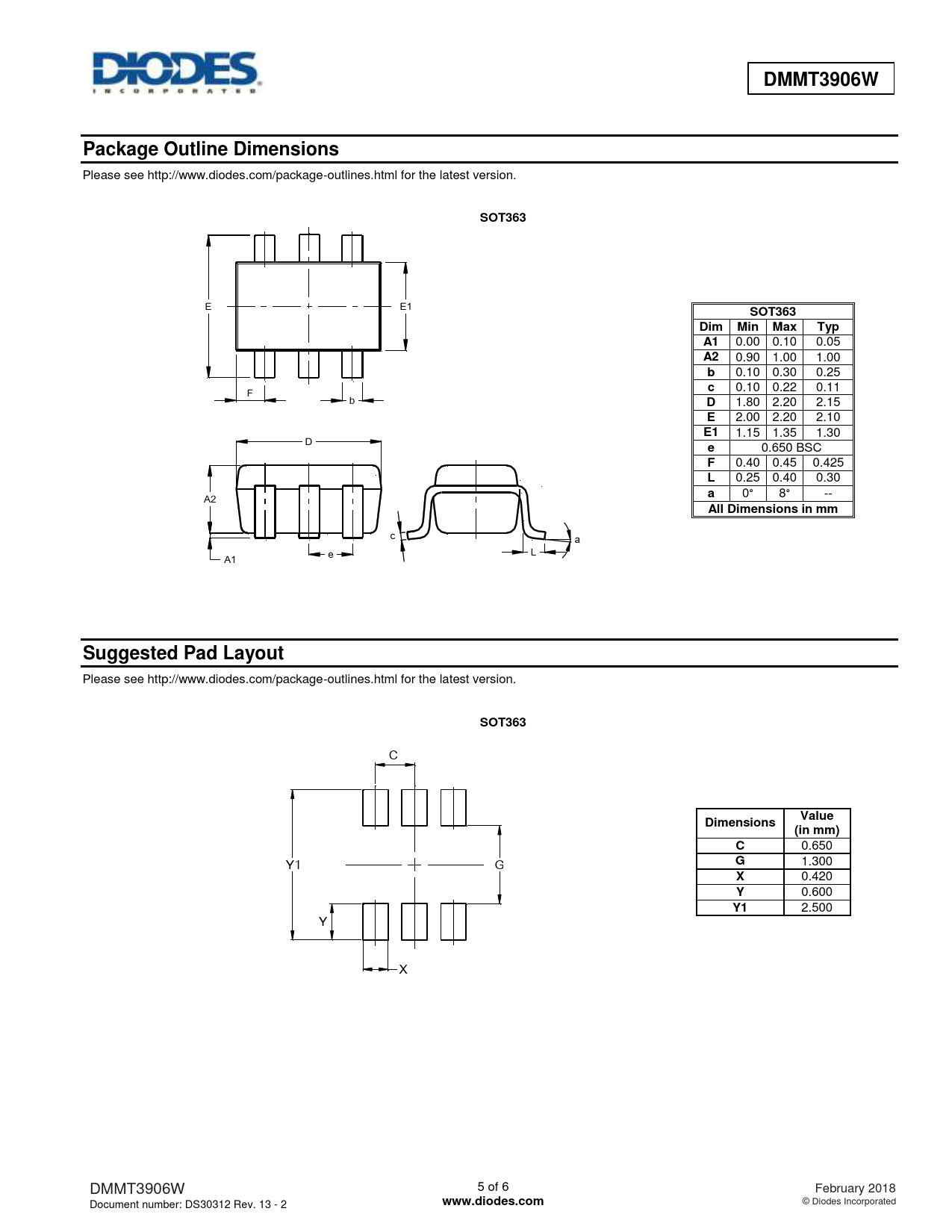

DMMT3906W Package Outline Dimensions
Please see http://www.diodes.com/package-outlines.html for the latest version.
SOT363
E E1
SOT363 Dim Min Max Typ A1
0.00 0.10 0.05
A2
0.90 1.00 1.00
b
0.10 0.30 0.25
c
0.10 0.22 0.11 F b
D
1.80 2.20 2.15
E
2.00 2.20 2.10
E1
1.15 1.35 1.30 D
e
0.650 BSC
F
0.40 0.45 0.425
L
0.25 0.40 0.30
a
0° 8° -- A2
All Dimensions in mm
c a e L A1
Suggested Pad Layout
Please see http://www.diodes.com/package-outlines.html for the latest version.
SOT363
C
Value Dimensions (in mm) C
0.650
G
1.300 Y1 G
X
0.420
Y
0.600
Y1
2.500 Y X DMMT3906W 5 of 6 February 2018 Document number: DS30312 Rev. 13 - 2
www.diodes.com
© Diodes Incorporated
