Datasheet BV2HC045EFU-C (Rohm) - 3

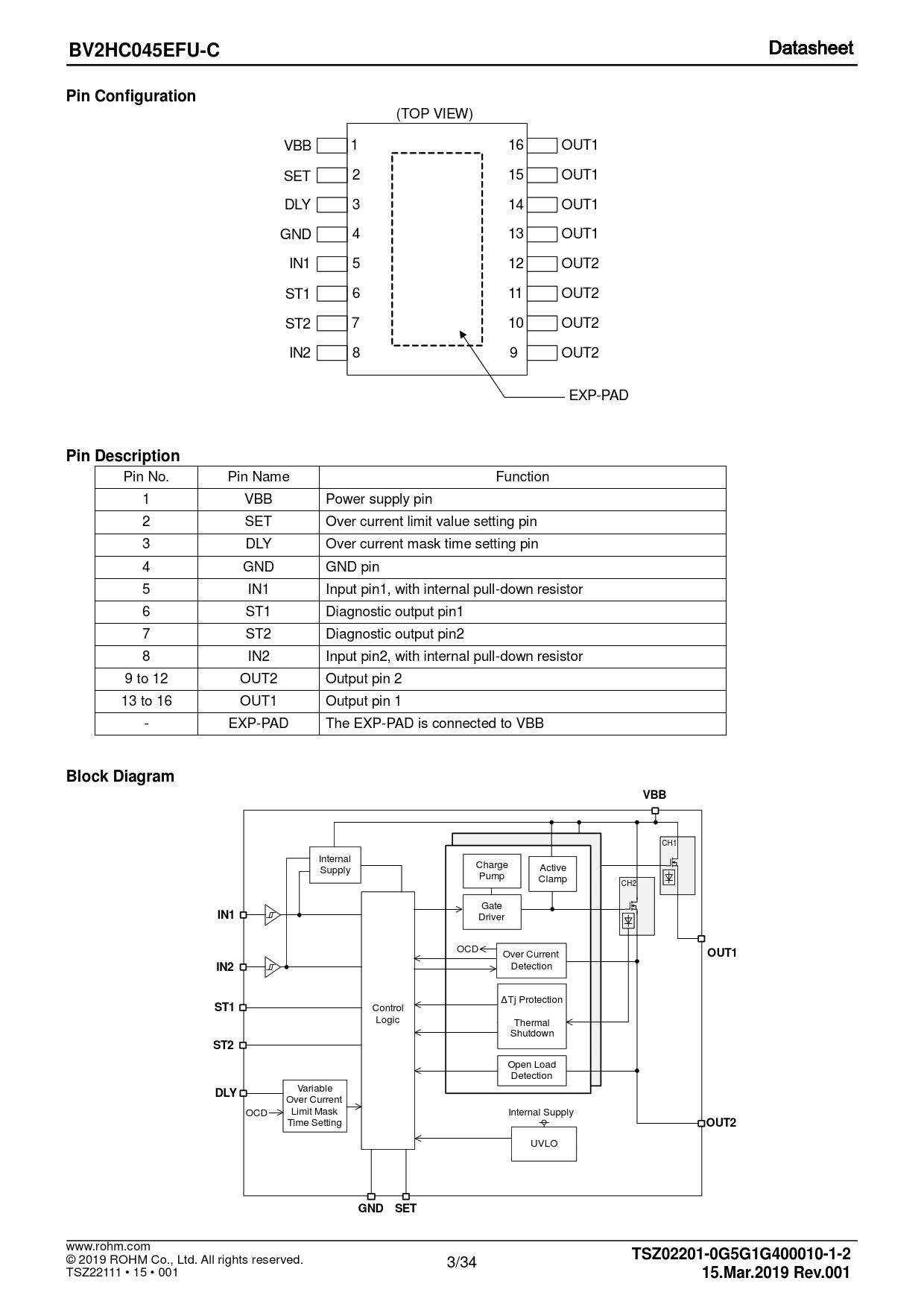

BV2HC045EFU-C Pin Configuration
(TOP VIEW) VBB 1 16 OUT1 SET 2 15 OUT1 DLY 3 14 OUT1 GND 4 13 OUT1 IN1 5 12 OUT2 ST1 6 11 OUT2 ST2 7 10 OUT2 IN2 8 9 OUT2 EXP-PAD
Pin Description
Pin No. Pin Name Function 1 VBB Power supply pin 2 SET Over current limit value setting pin 3 DLY Over current mask time setting pin 4 GND GND pin 5 IN1 Input pin1, with internal pull-down resistor 6 ST1 Diagnostic output pin1 7 ST2 Diagnostic output pin2 8 IN2 Input pin2, with internal pull-down resistor 9 to 12 OUT2 Output pin 2 13 to 16 OUT1 Output pin 1 - EXP-PAD The EXP-PAD is connected to VBB
Block Diagram VBB
CH1 Internal Charge Supply Active Pump Clamp CH2 Gate
IN1
Driver OCD Over Current
OUT1 IN2
Detection ΔTj Protection
ST1
Control Logic Thermal Shutdown
ST2
Open Load Detection Variable
DLY
Over Current OCD Limit Mask Internal Supply Time Setting
OUT2
UVLO
GND SET
www.rohm.com
TSZ02201-0G5G1G400010-1-2
© 2019 ROHM Co., Ltd. All rights reserved. 3/34 TSZ22111 • 15 • 001
15.Mar.2019 Rev.001
