Datasheet MAX4684, MAX4685 (Maxim)

link to page 9 Click
here
for production status of specific part numbers.

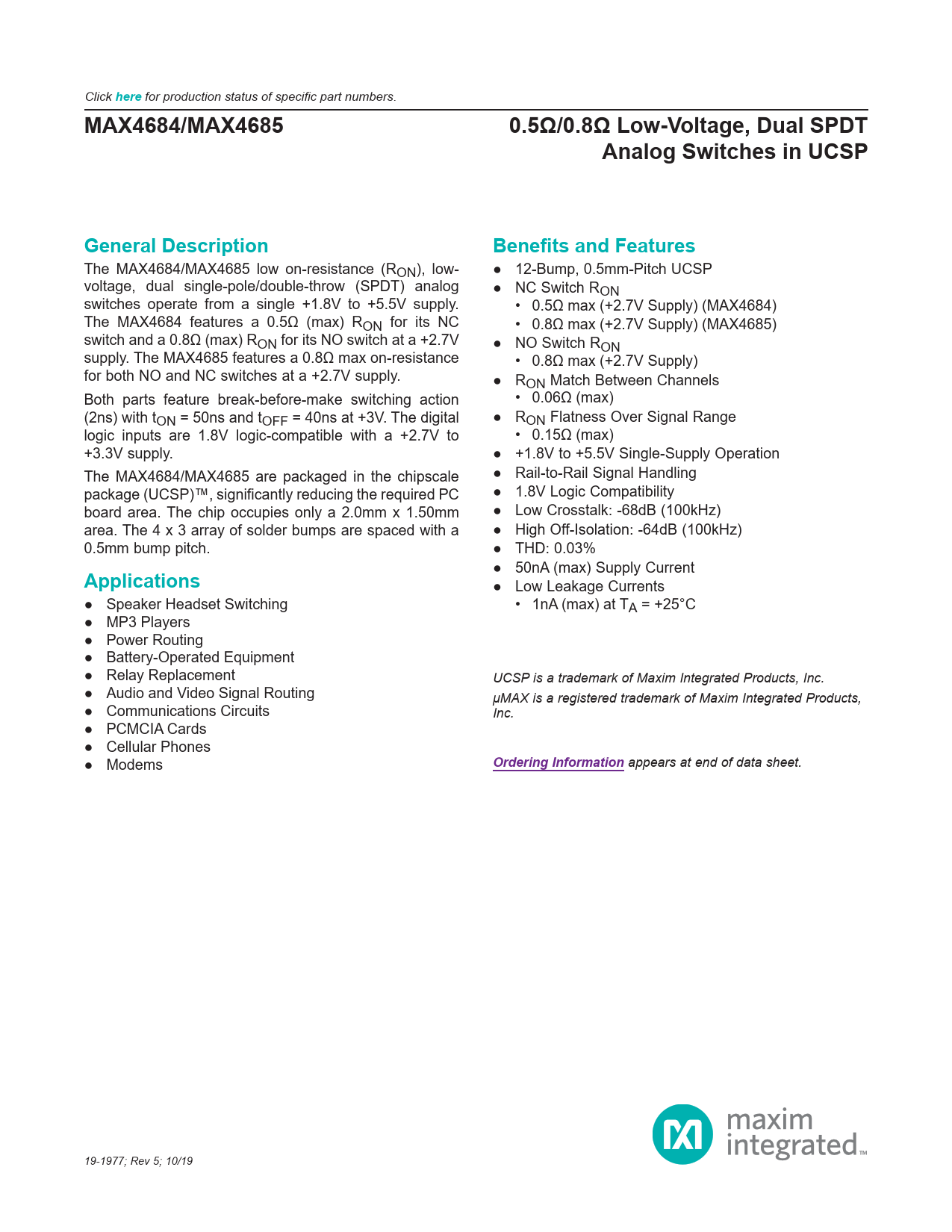

MAX4684/MAX4685 0.5Ω/0.8Ω Low-Voltage, Dual SPDT Analog Switches in UCSP General Description Benefits and Features
The MAX4684/MAX4685 low on-resistance (RON), low- ● 12-Bump, 0.5mm-Pitch UCSP voltage, dual single-pole/double-throw (SPDT) analog ● NC Switch RON switches operate from a single +1.8V to +5.5V supply. • 0.5Ω max (+2.7V Supply) (MAX4684) The MAX4684 features a 0.5Ω (max) RON for its NC • 0.8Ω max (+2.7V Supply) (MAX4685) switch and a 0.8Ω (max) RON for its NO switch at a +2.7V ● NO Switch RON supply. The MAX4685 features a 0.8Ω max on-resistance • 0.8Ω max (+2.7V Supply) for both NO and NC switches at a +2.7V supply. ● RON Match Between Channels Both parts feature break-before-make switching action • 0.06Ω (max) (2ns) with tON = 50ns and tOFF = 40ns at +3V. The digital ● RON Flatness Over Signal Range logic inputs are 1.8V logic-compatible with a +2.7V to • 0.15Ω (max) +3.3V supply. ● +1.8V to +5.5V Single-Supply Operation The MAX4684/MAX4685 are packaged in the chipscale ● Rail-to-Rail Signal Handling package (UCSP)™, significantly reducing the required PC ● 1.8V Logic Compatibility board area. The chip occupies only a 2.0mm x 1.50mm ● Low Crosstalk: -68dB (100kHz) area. The 4 x 3 array of solder bumps are spaced with a ● High Off-Isolation: -64dB (100kHz) 0.5mm bump pitch. ● THD: 0.03% ● 50nA (max) Supply Current
Applications
● Low Leakage Currents ● Speaker Headset Switching • 1nA (max) at TA = +25°C ● MP3 Players ● Power Routing ● Battery-Operated Equipment ● Relay Replacement UCSP is a trademark of Maxim Integrated Products, Inc. ● Audio and Video Signal Routing μMAX is a registered trademark of Maxim Integrated Products, ● Communications Circuits Inc. ● PCMCIA Cards ● Cellular Phones ● Modems
Ordering Information
appears at end of data sheet. 19-1977; Rev 5; 10/19
