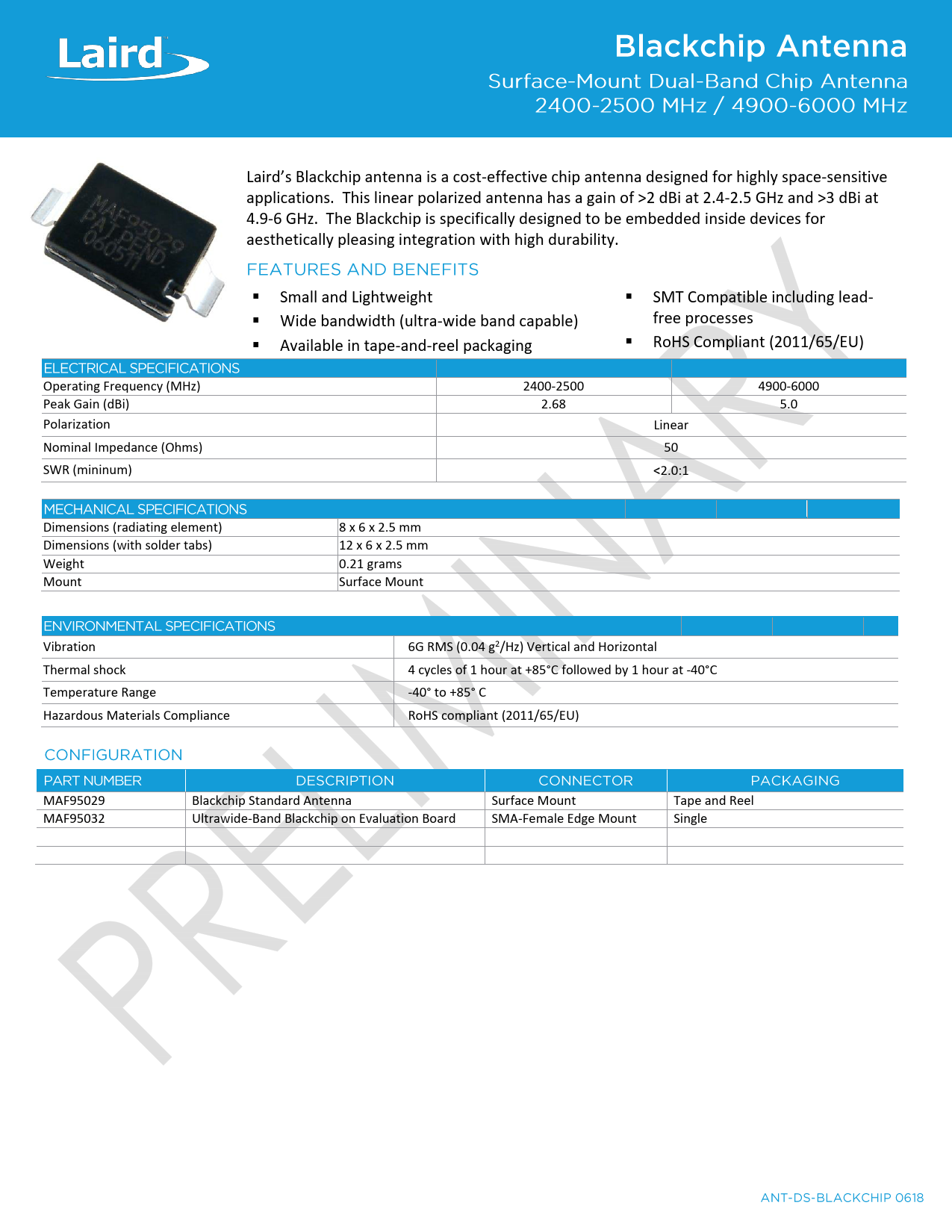

Preliminary Datasheet Blackchip Antenna (Laird Technologies)

A Laird’s Blackchip antenna is a cost-effective chip antenna designed for highly space-sensitive applications. This linear polarized antenna has a gain of >2 dBi at 2.4-2.5 GHz and >3 dBi at 4.9-6 GHz. The Blackchip is specifically designed to be embedded inside devices for aesthetically pleasing integration with high durability. ▪ Small and Lightweight ▪ SMT Compatible including lead- ▪ Wide bandwidth (ultra-wide band capable) free processes ▪ Available in tape-and-reel packaging ▪ RoHS Compliant (2011/65/EU) Operating Frequency (MHz) 2400-2500 4900-6000 Peak Gain (dBi) 2.68 5.0 Polarization Linear Nominal Impedance (Ohms) 50 SWR (mininum) <2.0:1 Dimensions (radiating element) 8 x 6 x 2.5 mm Dimensions (with solder tabs) 12 x 6 x 2.5 mm Weight 0.21 grams Mount Surface Mount Vibration 6G RMS (0.04 g2/Hz) Vertical and Horizontal Thermal shock 4 cycles of 1 hour at +85°C followed by 1 hour at -40°C Temperature Range -40° to +85° C Hazardous Materials Compliance RoHS compliant (2011/65/EU) MAF95029 Blackchip Standard Antenna Surface Mount Tape and Reel MAF95032 Ultrawide-Band Blackchip on Evaluation Board SMA-Female Edge Mount Single
