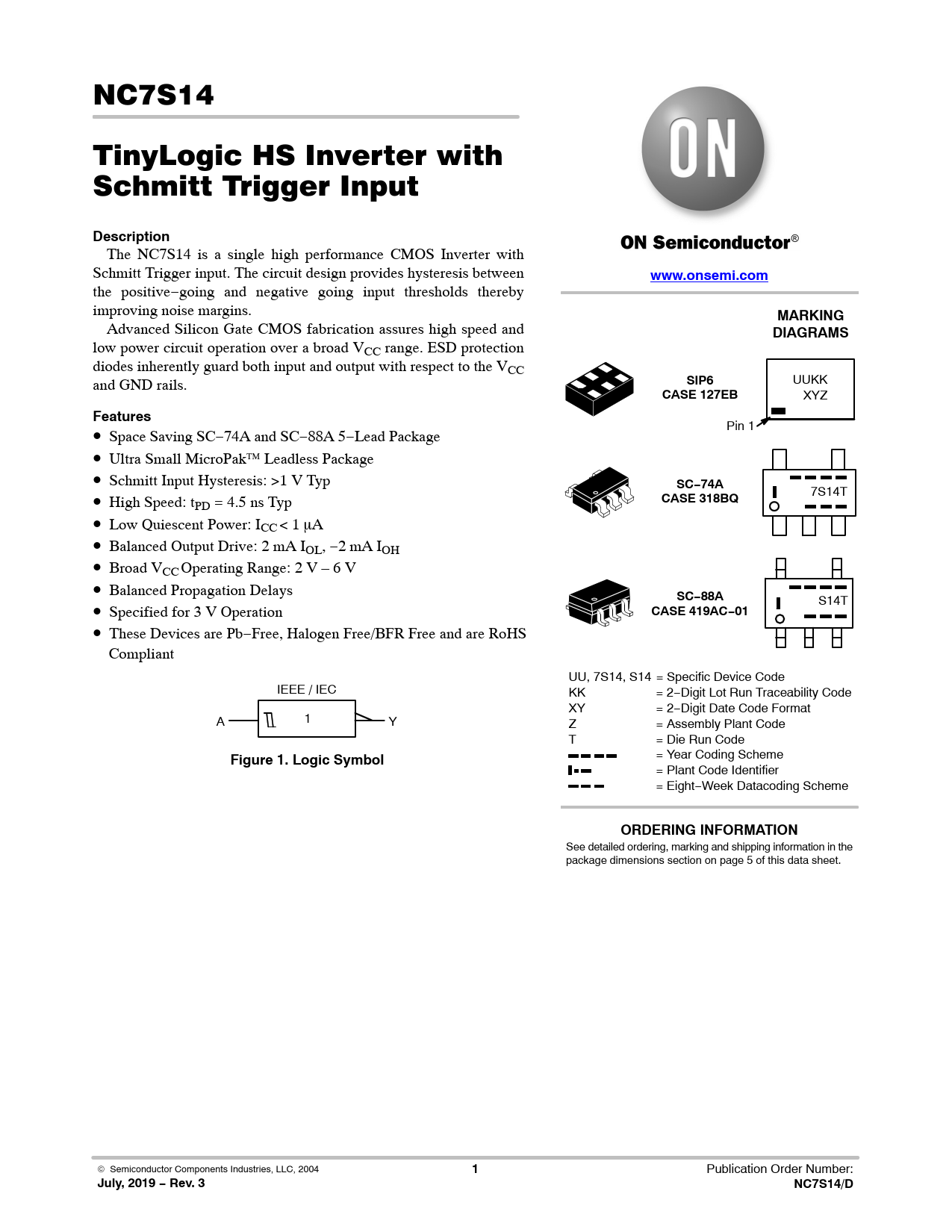

link to page 5 NC7S14 TinyLogic HS Inverter with Schmitt Trigger Input
Description
The NC7S14 is a single high performance CMOS Inverter with Schmitt Trigger input. The circuit design provides hysteresis between
www.onsemi.com
the positive−going and negative going input thresholds thereby improving noise margins.
MARKING
Advanced Silicon Gate CMOS fabrication assures high speed and
DIAGRAMS
low power circuit operation over a broad VCC range. ESD protection diodes inherently guard both input and output with respect to the VCC and GND rails.
SIP6
UUKK
CASE 127EB
XYZ
Features
• Pin 1 Space Saving SC−74A and SC−88A 5−Lead Package • Ultra Small MicroPak™ Leadless Package • Schmitt Input Hysteresis: >1 V Typ
SC−74A
• High Speed: t
CASE 318BQ
7S14T PD = 4.5 ns Typ • Low Quiescent Power: ICC < 1 mA • Balanced Output Drive: 2 mA IOL, −2 mA IOH • Broad VCC Operating Range: 2 V – 6 V • Balanced Propagation Delays
SC−88A
• S14T Specified for 3 V Operation
CASE 419AC−01
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant UU, 7S14, S14 = Specific Device Code IEEE / IEC KK = 2−Digit Lot Run Traceability Code XY = 2−Digit Date Code Format A 1 Y Z = Assembly Plant Code T = Die Run Code
Figure 1. Logic Symbol
= Year Coding Scheme = Plant Code Identifier = Eight−Week Datacoding Scheme
ORDERING INFORMATION
See detailed ordering, marking and shipping information in the package dimensions section on page 5 of this data sheet. © Semiconductor Components Industries, LLC, 2004
1
Publication Order Number:
July, 2019 − Rev. 3 NC7S14/D
