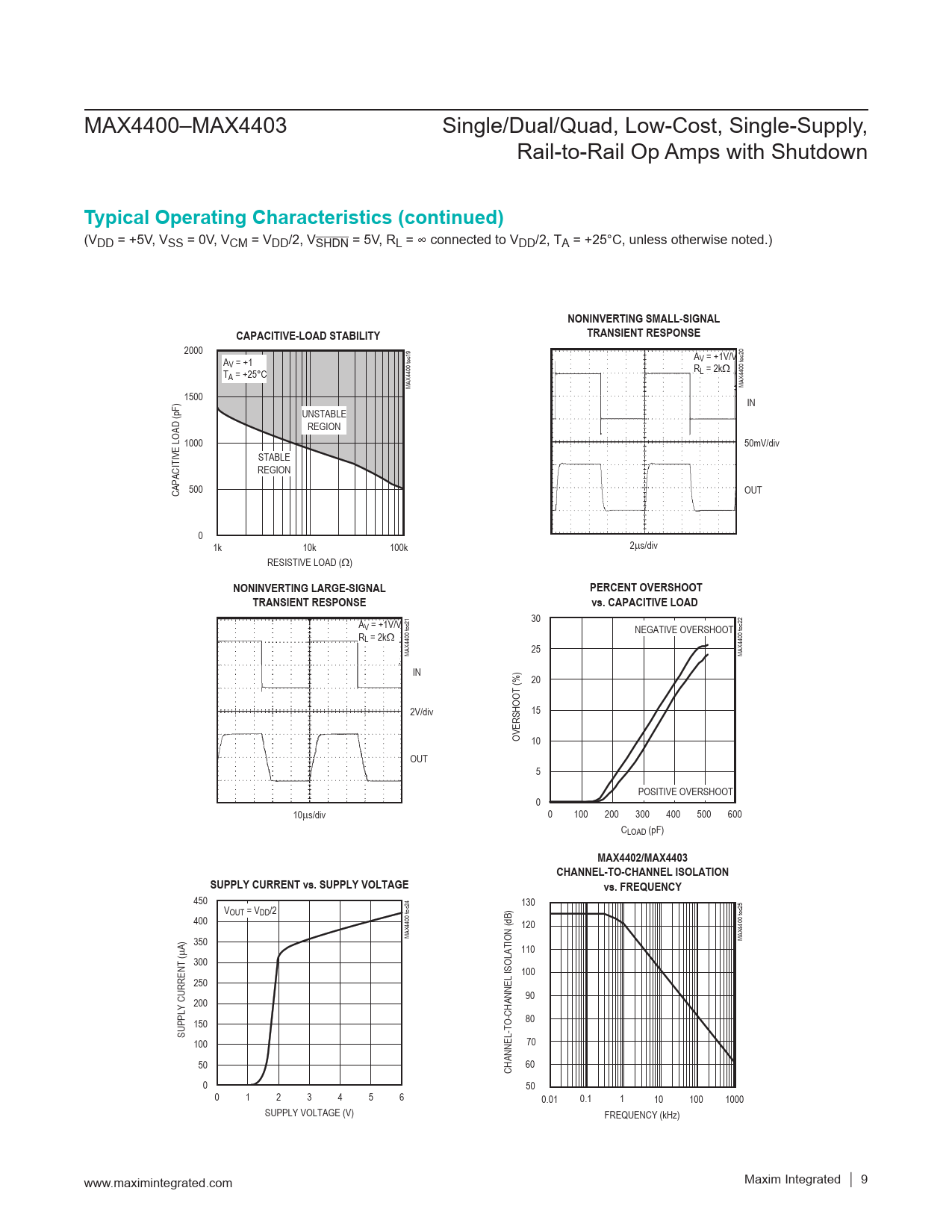

MAX4400–MAX4403 Single/Dual/Quad, Low-Cost, Single-Supply, Rail-to-Rail Op Amps with Shutdown
Typical Operating Characteristics (continued)
(VDD = +5V, VSS = 0V, VCM = VDD/2, VSHDN = 5V, RL = ∞ connected to VDD/2, TA = +25°C, unless otherwise noted.)
NONINVERTING SMALL-SIGNAL CAPACITIVE-LOAD STABILITY TRANSIENT RESPONSE
2000 AV = +1V/V AV = +1 RL = 2kΩ TA = +25°C MAX4400 toc20 MAX4400 toc19 1500 IN UNSTABLE REGION 1000 50mV/div STABLE REGION 500 OUT CAPACITIVE LOAD (pF) 0 1k 10k 100k 2µs/div RESISTIVE LOAD (Ω)
NONINVERTING LARGE-SIGNAL PERCENT OVERSHOOT TRANSIENT RESPONSE vs. CAPACITIVE LOAD
30 AV = +1V/V NEGATIVE OVERSHOOT RL = 2kΩ 25 MAX4400 toc21 MAX4400 toc22 IN 20 2V/div 15 OVERSHOOT (%) 10 OUT 5 POSITIVE OVERSHOOT 0 10µs/div 0 100 200 300 400 500 600 CLOAD (pF)
MAX4402/MAX4403 CHANNEL-TO-CHANNEL ISOLATION SUPPLY CURRENT vs. SUPPLY VOLTAGE vs. FREQUENCY
450 130 VOUT = VDD/2 400 120 MAX4400 toc24 MAX4400 toc25 350 µA) 110 300 100 250 90 200 80 150 SUPPLY CURRENT ( 100 70 50 60 CHANNEL-TO-CHANNEL ISOLATION (dB) 0 50 0 1 2 3 4 5 6 0.01 0.1 1 10 100 1000 SUPPLY VOLTAGE (V) FREQUENCY (kHz) www.maximintegrated.com Maxim Integrated │ 9
