Datasheet LTC3850, LTC3850-1 (Analog Devices) - 3
| Hersteller | Analog Devices |
| Beschreibung | Dual, 2-Phase Synchronous Step-Down Switching Controller |
| Seiten / Seite | 38 / 3 — ORDER INFORMATION LEAD FREE FINISH. TAPE AND REEL. PART MARKING*. PACKAGE … |
| Revision | D |
| Dateiformat / Größe | PDF / 1.2 Mb |
| Dokumentensprache | Englisch |
ORDER INFORMATION LEAD FREE FINISH. TAPE AND REEL. PART MARKING*. PACKAGE DESCRIPTION. TEMPERATURE RANGE. AUTOMOTIVE PRODUCTS**
Modelllinie für dieses Datenblatt
- LTC3850EGN#PBF LTC3850EGN#TRPBF LTC3850EGN#WPBF LTC3850EGN#WTRPBF LTC3850EGN-1#PBF LTC3850EGN-1#TRPBF LTC3850EGN-1#WPBF LTC3850EGN-1#WTRPBF LTC3850EUF#PBF LTC3850EUF#TRPBF LTC3850EUFD#PBF LTC3850EUFD#TRPBF LTC3850IGN#PBF LTC3850IGN#TRPBF LTC3850IGN#WPBF LTC3850IGN#WTRPBF LTC3850IGN-1#PBF LTC3850IGN-1#TRPBF LTC3850IGN-1#WPBF LTC3850IGN-1#WTRPBF LTC3850IUF#PBF LTC3850IUF#TRPBF LTC3850IUFD#PBF LTC3850IUFD#TRPBF
Textversion des Dokuments

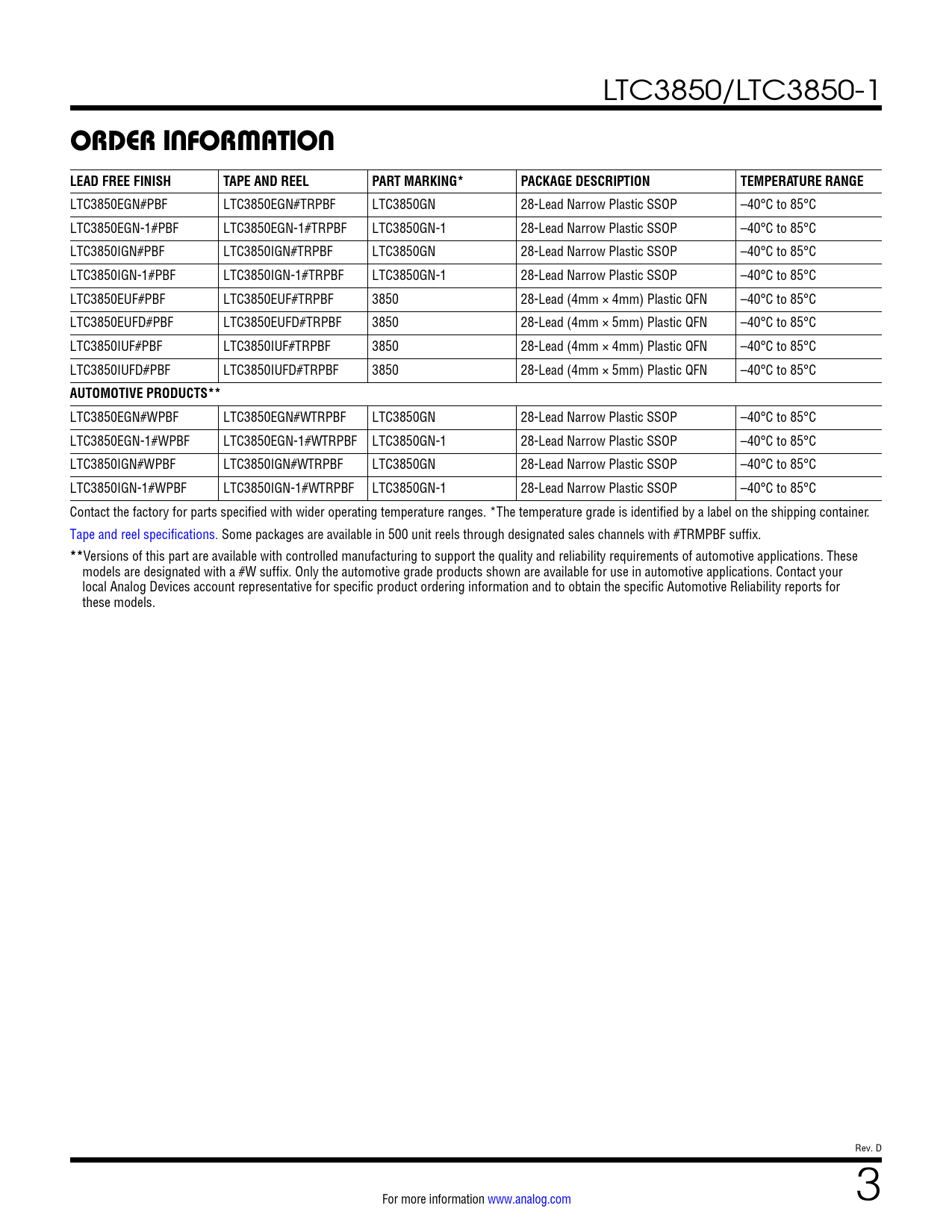

LTC3850/LTC3850-1
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC3850EGN#PBF LTC3850EGN#TRPBF LTC3850GN 28-Lead Narrow Plastic SSOP –40°C to 85°C LTC3850EGN-1#PBF LTC3850EGN-1#TRPBF LTC3850GN-1 28-Lead Narrow Plastic SSOP –40°C to 85°C LTC3850IGN#PBF LTC3850IGN#TRPBF LTC3850GN 28-Lead Narrow Plastic SSOP –40°C to 85°C LTC3850IGN-1#PBF LTC3850IGN-1#TRPBF LTC3850GN-1 28-Lead Narrow Plastic SSOP –40°C to 85°C LTC3850EUF#PBF LTC3850EUF#TRPBF 3850 28-Lead (4mm × 4mm) Plastic QFN –40°C to 85°C LTC3850EUFD#PBF LTC3850EUFD#TRPBF 3850 28-Lead (4mm × 5mm) Plastic QFN –40°C to 85°C LTC3850IUF#PBF LTC3850IUF#TRPBF 3850 28-Lead (4mm × 4mm) Plastic QFN –40°C to 85°C LTC3850IUFD#PBF LTC3850IUFD#TRPBF 3850 28-Lead (4mm × 5mm) Plastic QFN –40°C to 85°C
AUTOMOTIVE PRODUCTS**
LTC3850EGN#WPBF LTC3850EGN#WTRPBF LTC3850GN 28-Lead Narrow Plastic SSOP –40°C to 85°C LTC3850EGN-1#WPBF LTC3850EGN-1#WTRPBF LTC3850GN-1 28-Lead Narrow Plastic SSOP –40°C to 85°C LTC3850IGN#WPBF LTC3850IGN#WTRPBF LTC3850GN 28-Lead Narrow Plastic SSOP –40°C to 85°C LTC3850IGN-1#WPBF LTC3850IGN-1#WTRPBF LTC3850GN-1 28-Lead Narrow Plastic SSOP –40°C to 85°C Contact the factory for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. Tape and reel specifications. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix.
**
Versions of this part are available with controlled manufacturing to support the quality and reliability requirements of automotive applications. These models are designated with a #W suffix. Only the automotive grade products shown are available for use in automotive applications. Contact your local Analog Devices account representative for specific product ordering information and to obtain the specific Automotive Reliability reports for these models. Rev. D For more information www.analog.com 3 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Functional Diagram Operation Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
