ADP1882/ADP1883. ABSOLUTE MAXIMUM RATINGS. THERMAL RESISTANCE. Table 2. Parameter Rating. Table 3. Thermal Resistance
Modelllinie für dieses Datenblatt
Textversion des Dokuments
link to page 5 link to page 5

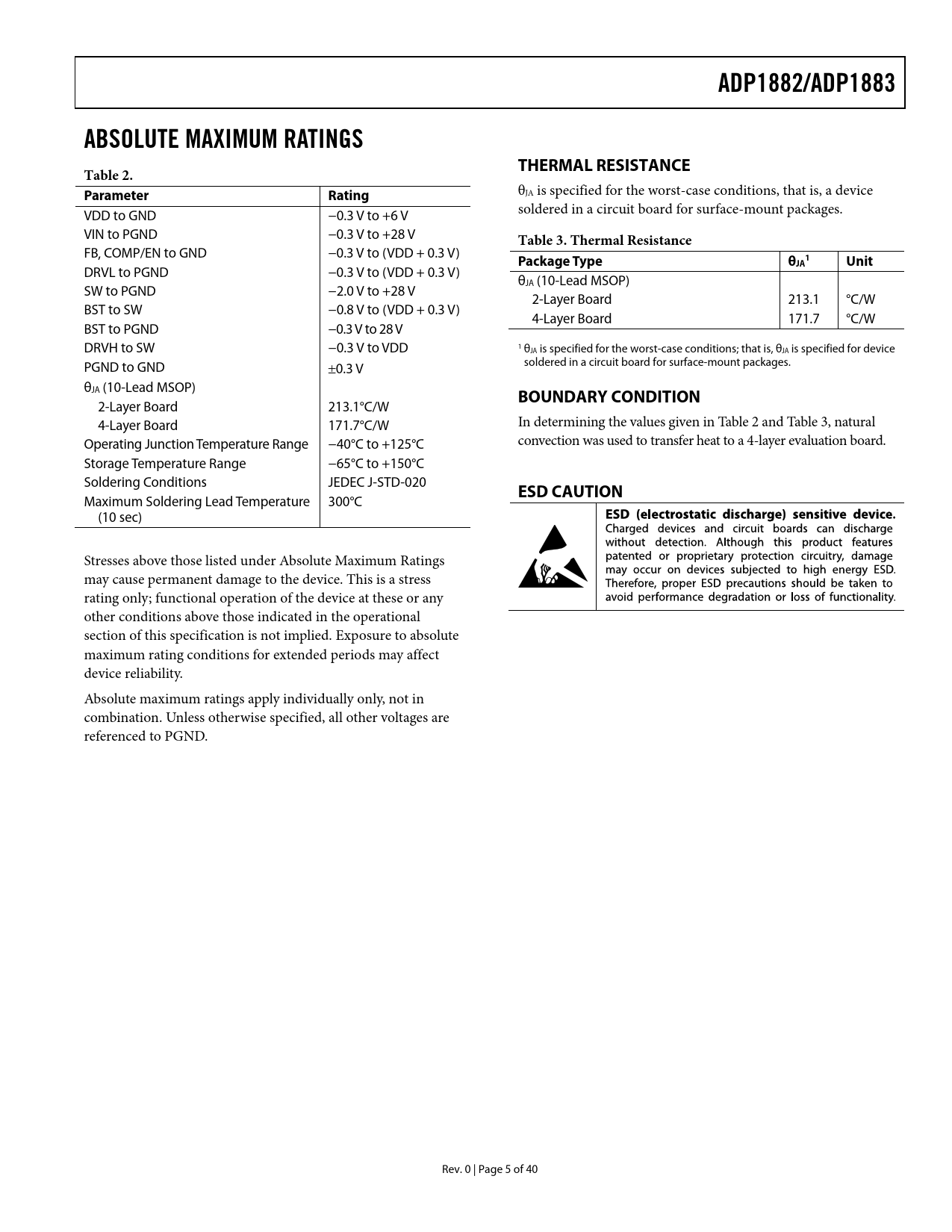

ADP1882/ADP1883 ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE Table 2. Parameter Rating
θJA is specified for the worst-case conditions, that is, a device VDD to GND −0.3 V to +6 V soldered in a circuit board for surface-mount packages. VIN to PGND −0.3 V to +28 V
Table 3. Thermal Resistance
FB, COMP/EN to GND −0.3 V to (VDD + 0.3 V)
Package Type θ 1 JA Unit
DRVL to PGND −0.3 V to (VDD + 0.3 V) θJA (10-Lead MSOP) SW to PGND −2.0 V to +28 V 2-Layer Board 213.1 °C/W BST to SW −0.8 V to (VDD + 0.3 V) 4-Layer Board 171.7 °C/W BST to PGND −0.3 V to 28 V DRVH to SW −0.3 V to VDD 1 θJA is specified for the worst-case conditions; that is, θJA is specified for device PGND to GND ± soldered in a circuit board for surface-mount packages. 0.3 V θJA (10-Lead MSOP)
BOUNDARY CONDITION
2-Layer Board 213.1°C/W 4-Layer Board 171.7°C/W In determining the values given in Table 2 and Table 3, natural Operating Junction Temperature Range −40°C to +125°C convection was used to transfer heat to a 4-layer evaluation board. Storage Temperature Range −65°C to +150°C Soldering Conditions JEDEC J-STD-020
