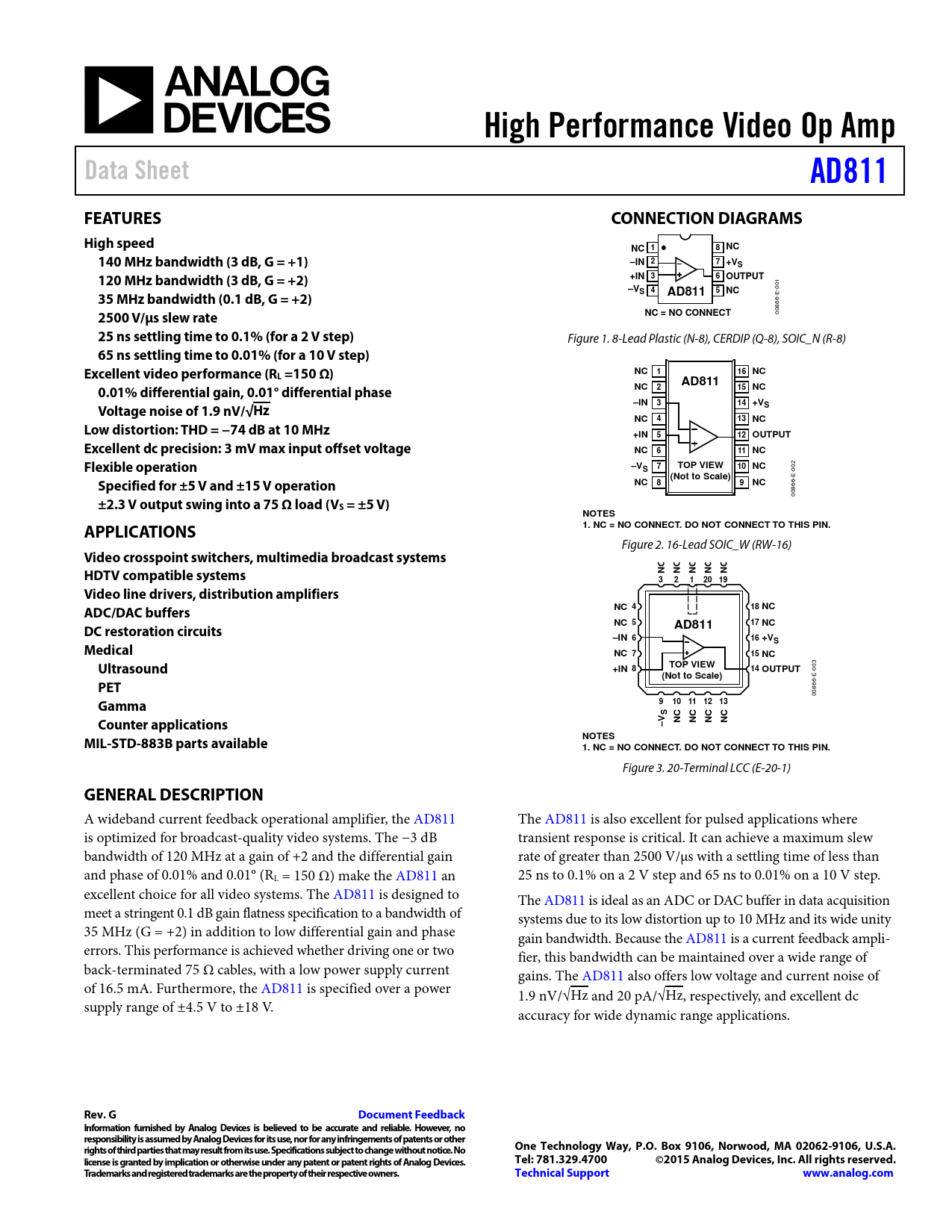

High Performance Video Op Amp. Data Sheet. AD811. FEATURES. CONNECTION DIAGRAMS. High speed. 140 MHz bandwidth (3 dB, G = +1). –IN 2
Modelllinie für dieses Datenblatt
Textversion des Dokuments
High Performance Video Op Amp Data Sheet AD811 FEATURES CONNECTION DIAGRAMS High speed 1 8 NC NC 140 MHz bandwidth (3 dB, G = +1) –IN 2 7 +VS 120 MHz bandwidth (3 dB, G = +2) +IN 3 6 OUTPUT –VS 4 5 NC 35 MHz bandwidth (0.1 dB, G = +2) AD811 2500 V/µs slew rate NC = NO CONNECT
00866-E-001
25 ns settling time to 0.1% (for a 2 V step)
Figure 1. 8-Lead Plastic (N-8), CERDIP (Q-8), SOIC_N (R-8)
65 ns settling time to 0.01% (for a 10 V step) Excellent video performance (R NC 1 16 NC L =150 Ω) AD811 0.01% differential gain, 0.01° differential phase NC 2 15 NC –IN 14 +V Voltage noise of 1.9 nV/√Hz 3 S NC 4 13 NC Low distortion: THD = −74 dB at 10 MHz +IN 5 12 OUTPUT Excellent dc precision: 3 mV max input offset voltage NC 6 11 NC Flexible operation –V TOP VIEW S 7 10 NC
-002
(Not to Scale)
E
Specified for ±5 V and ±15 V operation NC 8 9 NC
00866-
±2.3 V output swing into a 75 Ω load (VS = ±5 V) NOTES APPLICATIONS 1. NC = NO CONNECT. DO NOT CONNECT TO THIS PIN.
Figure 2. 16-Lead SOIC_W (RW-16)
Video crosspoint switchers, multimedia broadcast systems HDTV compatible systems NC NC NC NC NC 3 2 1 20 19 Video line drivers, distribution amplifiers ADC/DAC buffers NC 4 18 NC NC 5 17 NC DC restoration circuits AD811 –IN 6 16 +VS Medical NC 7 15 NC Ultrasound TOP VIEW +IN 8 14 OUTPUT
-003
(Not to Scale)
E
PET
00866-
Gamma 9 10 11 12 13 S Counter applications NC NC NC NC –V MIL-STD-883B parts available NOTES 1. NC = NO CONNECT. DO NOT CONNECT TO THIS PIN.
Figure 3. 20-Terminal LCC (E-20-1)
GENERAL DESCRIPTION
A wideband current feedback operational amplifier, the AD811 The AD811 is also excellent for pulsed applications where is optimized for broadcast-quality video systems. The −3 dB transient response is critical. It can achieve a maximum slew bandwidth of 120 MHz at a gain of +2 and the differential gain rate of greater than 2500 V/µs with a settling time of less than and phase of 0.01% and 0.01° (RL = 150 Ω) make the AD811 an 25 ns to 0.1% on a 2 V step and 65 ns to 0.01% on a 10 V step. excellent choice for al video systems. The AD811 is designed to The AD811 is ideal as an ADC or DAC buffer in data acquisition meet a stringent 0.1 dB gain flatness specification to a bandwidth of systems due to its low distortion up to 10 MHz and its wide unity 35 MHz (G = +2) in addition to low differential gain and phase gain bandwidth. Because the AD811 is a current feedback ampli- errors. This performance is achieved whether driving one or two fier, this bandwidth can be maintained over a wide range of back-terminated 75 Ω cables, with a low power supply current gains. The AD811 also offers low voltage and current noise of of 16.5 mA. Furthermore, the AD811 is specified over a power 1.9 nV/√Hz and 20 pA/√Hz, respectively, and excellent dc supply range of ±4.5 V to ±18 V. accuracy for wide dynamic range applications.
