AD818. 50ns. 100mV. 10ns. 100. 200mV
Modelllinie für dieses Datenblatt
Textversion des Dokuments
AD818 5V 50ns 100mV 10ns 100 100 90 90 10 10 0% 0% 5V 200mV

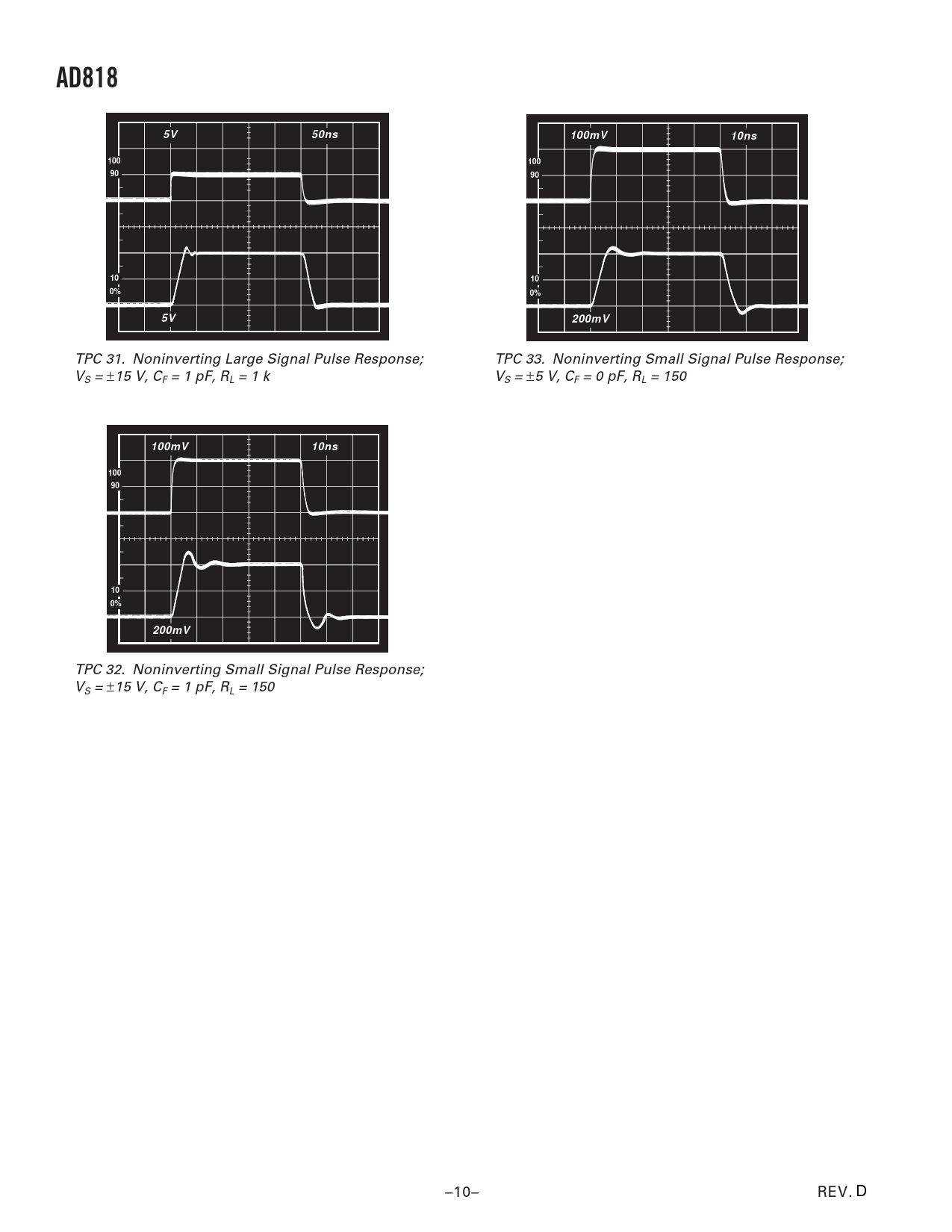

TPC 31. Noninverting Large Signal Pulse Response; TPC 33. Noninverting Small Signal Pulse Response; VS = ±15 V, CF = 1 pF, RL = 1 kW VS = ±5 V, CF = 0 pF, RL = 150 W
100mV 10ns 100 90 10 0% 200mV
TPC 32. Noninverting Small Signal Pulse Response; VS = ±15 V, CF = 1 pF, RL = 150 W –10– REV. D Document Outline Untitled
TPC 31. Noninverting Large Signal Pulse Response; TPC 33. Noninverting Small Signal Pulse Response; VS = ±15 V, CF = 1 pF, RL = 1 kW VS = ±5 V, CF = 0 pF, RL = 150 W
100mV 10ns 100 90 10 0% 200mV
TPC 32. Noninverting Small Signal Pulse Response; VS = ±15 V, CF = 1 pF, RL = 150 W –10– REV. D Document Outline Untitled
