AD8010–SPECIFICATIONS (@ 25. C, VS =. 5 V, G = +2, RL = 18.75. , RS+ = 150. , RF = RG = 604. (R-16),. RF = RG = 562

AD8010–SPECIFICATIONS (@ 25 C, VS = 5 V, G = +2, RL = 18.75 , RS+ = 150 , RF = RG = 604 (R-16), RF = RG = 562

Modelllinie für dieses Datenblatt

Textversion des Dokuments

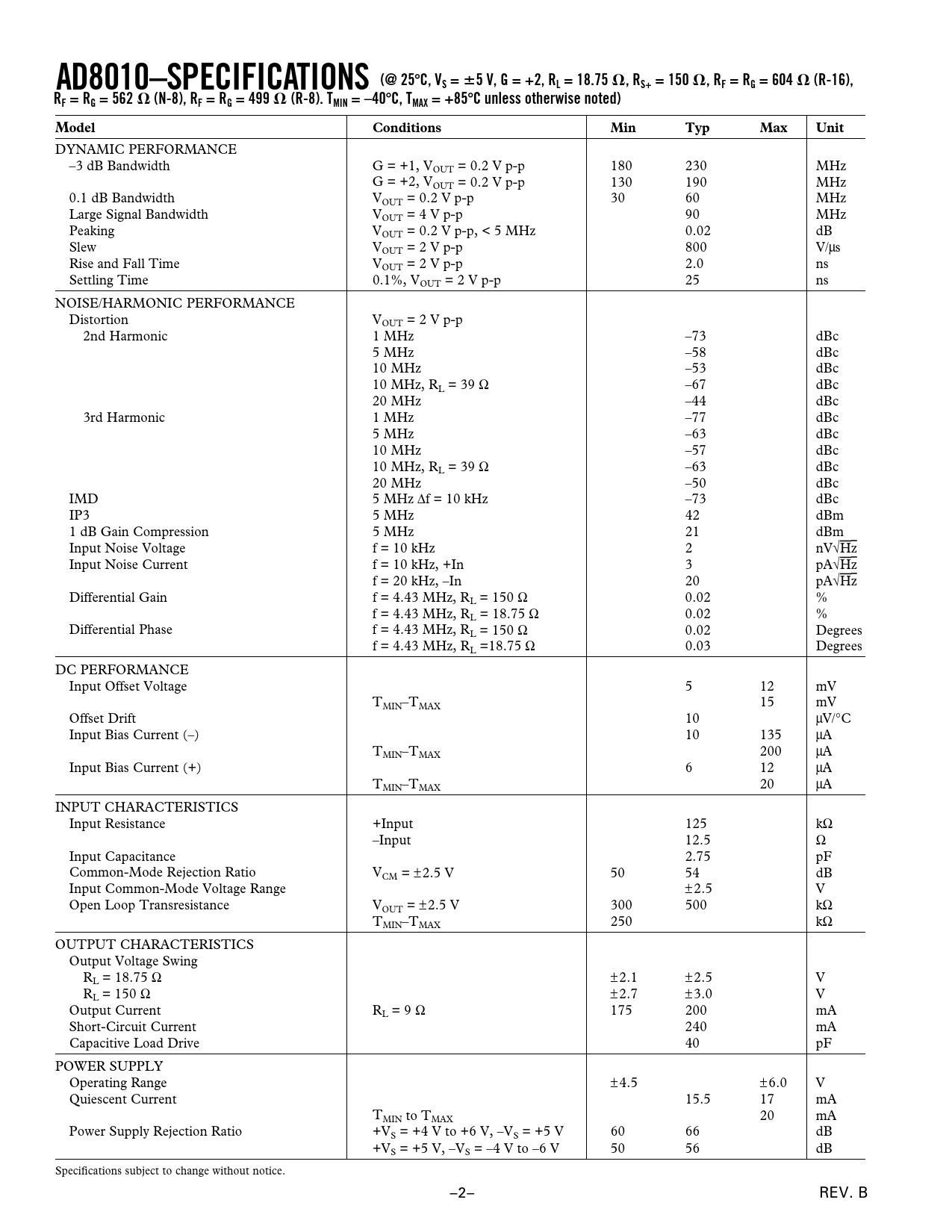

AD8010–SPECIFICATIONS (@ 25 C, VS = 5 V, G = +2, RL = 18.75 , RS+ = 150 , RF = RG = 604 (R-16), RF = RG = 562 (N-8), RF = RG = 499 (R-8). TMIN = –40 C, TMAX = +85 C unless otherwise noted) Model Conditions Min Typ Max Unit
DYNAMIC PERFORMANCE –3 dB Bandwidth G = +1, VOUT = 0.2 V p-p 180 230 MHz G = +2, VOUT = 0.2 V p-p 130 190 MHz 0.1 dB Bandwidth VOUT = 0.2 V p-p 30 60 MHz Large Signal Bandwidth VOUT = 4 V p-p 90 MHz Peaking VOUT = 0.2 V p-p, < 5 MHz 0.02 dB Slew VOUT = 2 V p-p 800 V/µs Rise and Fall Time VOUT = 2 V p-p 2.0 ns Settling Time 0.1%, VOUT = 2 V p-p 25 ns NOISE/HARMONIC PERFORMANCE Distortion VOUT = 2 V p-p 2nd Harmonic 1 MHz –73 dBc 5 MHz –58 dBc 10 MHz –53 dBc 10 MHz, RL = 39 Ω –67 dBc 20 MHz –44 dBc 3rd Harmonic 1 MHz –77 dBc 5 MHz –63 dBc 10 MHz –57 dBc 10 MHz, RL = 39 Ω –63 dBc 20 MHz –50 dBc IMD 5 MHz ∆f = 10 kHz –73 dBc IP3 5 MHz 42 dBm 1 dB Gain Compression 5 MHz 21 dBm Input Noise Voltage f = 10 kHz 2 nV√Hz Input Noise Current f = 10 kHz, +In 3 pA√Hz f = 20 kHz, –In 20 pA√Hz Differential Gain f = 4.43 MHz, RL = 150 Ω 0.02 % f = 4.43 MHz, RL = 18.75 Ω 0.02 % Differential Phase f = 4.43 MHz, RL = 150 Ω 0.02 Degrees f = 4.43 MHz, RL =18.75 Ω 0.03 Degrees DC PERFORMANCE Input Offset Voltage 5 12 mV TMIN–TMAX 15 mV Offset Drift 10 µV/°C Input Bias Current (–) 10 135 µA TMIN–TMAX 200 µA Input Bias Current (+) 6 12 µA TMIN–TMAX 20 µA INPUT CHARACTERISTICS Input Resistance +Input 125 kΩ –Input 12.5 Ω Input Capacitance 2.75 pF Common-Mode Rejection Ratio VCM = ± 2.5 V 50 54 dB Input Common-Mode Voltage Range ±2.5 V Open Loop Transresistance VOUT = ± 2.5 V 300 500 kΩ TMIN–TMAX 250 kΩ OUTPUT CHARACTERISTICS Output Voltage Swing RL = 18.75 Ω ±2.1 ±2.5 V RL = 150 Ω ±2.7 ±3.0 V Output Current RL = 9 Ω 175 200 mA Short-Circuit Current 240 mA Capacitive Load Drive 40 pF POWER SUPPLY Operating Range ±4.5 ±6.0 V Quiescent Current 15.5 17 mA TMIN to TMAX 20 mA Power Supply Rejection Ratio +VS = +4 V to +6 V, –VS = +5 V 60 66 dB +VS = +5 V, –VS = –4 V to –6 V 50 56 dB Specifications subject to change without notice. –2– REV. B
